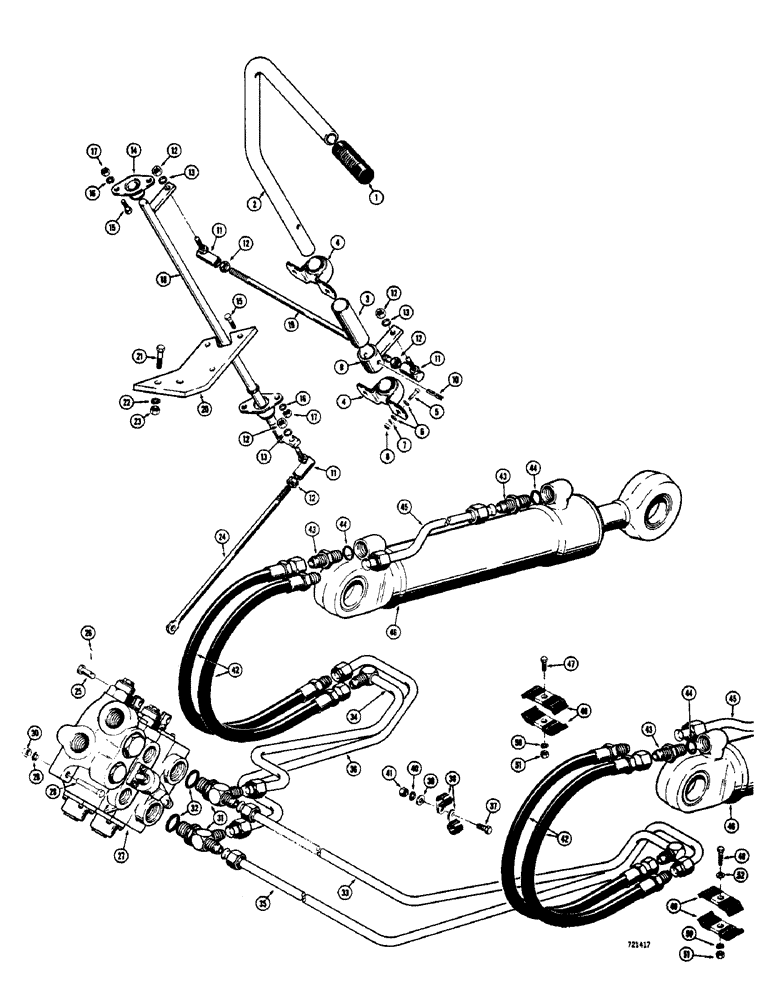

Запчасти Case 600 (206) - DECKING BLADE CONTROLS AND HYDRAULICS (07) - HYDRAULIC SYSTEM

1

L52222

GRIP - lever, control

1шт.

2

L52790

LEVER - control, before tractor S.N. 9110263

1шт.

2

L53281

LEVER - control, tractor S.N. 9110263 and after

1шт.

3

L52807

SPACER - lever

1шт.

4

L52799

BEARING ASSEMBLY - self-aligning

2шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 N.C.

4шт.

9

L52796

COLLAR - lever

1шт.

10

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, 3/8" x 1 3/4", Slotted

1шт.

11

D38296

JOINT

BALL JOINT - 3/8 - 24 N.F.

3шт.

12

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., 3/8 - 24 N.F.

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

L48412

FLANGED BEARING

BEARING ASSEMBLY - self-aligning

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 N.C.

4шт.

18

L52793

SHAFT - lever to valve, before tractor S.N. 9110263

1шт.

18

L54254

SHAFT - lever to valve, tractor S.N. 9110263 and after

1шт.

19

L54255

ROD - lever to shaft, before tractor S.N. 9110263

1шт.

19

L53284

ROD

- lever to shaft, tractor S.N. 9110263 and after

1шт.

20

L54255

BRACKET - lever mounting

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

2шт.

24

L52800

ROD -, Serial Range: shaft-valve

1шт.

25

A70130

PIN - clevis, 1"

1шт.

26

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

27

L54608

VALVE - hydraulic, parts list Figure 212

1шт.

28

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex., 1/2" - 13 N.C. x 2-1/4"

3шт.

29

92-8

LOCK WASHER,1/2"

3шт.

30

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

3шт.

31

218-5238

TEE,37 Degree, 3/4"-16, 1 1/16"-12 O-Ring Run, 3/4"-16

- adjustable, Includes: Ref. 32

2шт.

33

L52426

TUBE - hydraulic, to R.H. cylinder, closed end 0.5" OD

1шт.

34

L52420

TUBE - hydraulic, to L.H. cylinder, closed end 0.5" OD x 22.6, 11.6" L

1шт.

35

L52422

TUBE - hydraulic, to R.H. cylinder, rod end 0.5" OD

1шт.

36

L52424

TUBE - hydraulic, to L.H. cylinder, rod end, when stock is exhausted, order L54180 tube for service

1шт.

36

L54180

TUBE - hydraulic, to L.H. cylinder, rod end 0.5" OD

1шт.

37

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

38

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

- tube

4шт.

39

95-8

WASHER,1/2"

flat 1/2"

2шт.

40

92-8

LOCK WASHER,1/2"

2шт.

41

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

2шт.

42

L52429

HOSE ASSY.

HOSE - hydraulic, 23" (584 mm) long

4шт.

43

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 44 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

44

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

45

L52431

TUBE - hydraulic, at rod end of cylinder 0.5" OD x 19.44, 1.6" L

2шт.

46

G33710

CYLINDER - lift, parts list Figure 208 and 210

2шт.

47

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

48

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

49

D40236

CLAMP

- tube

8шт.

50

92-6

LOCK WASHER,3/8"

4шт.

51

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 N.C.

4шт.

52

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
