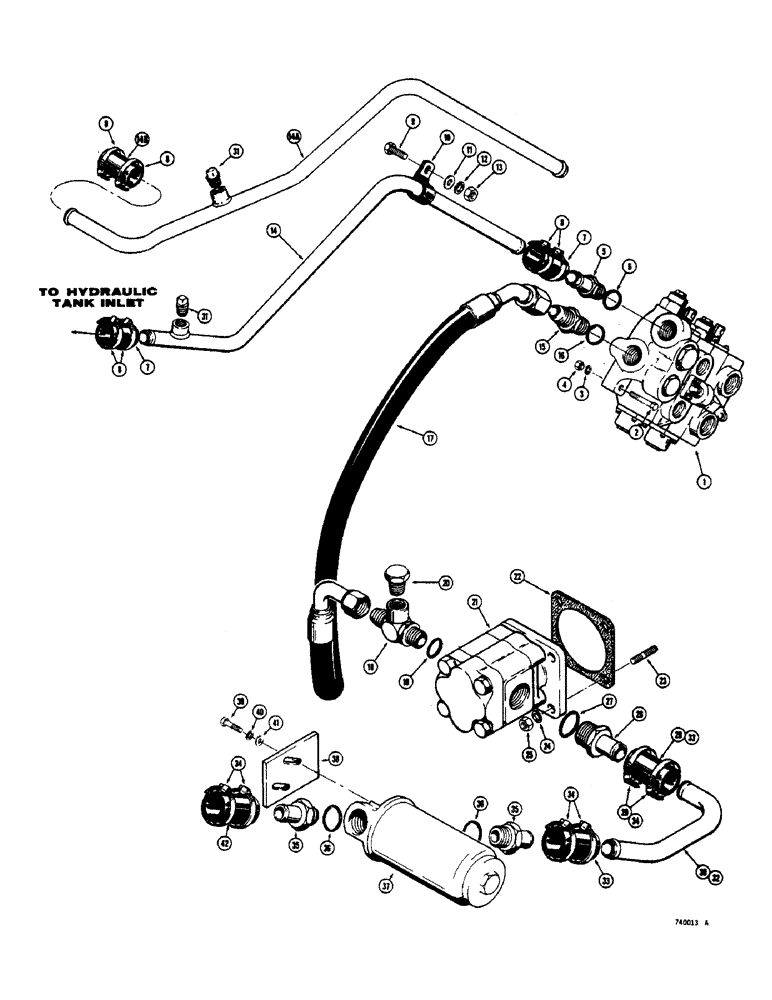

Запчасти Case 600 (200) - PRIMARY HYDRAULICS, UNITS WITHOUT SUCTION LINE FILTER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
L54608
VALVE - hydraulic, parts list Figure 212
1шт.
2
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
- hex., 1/2" - 13 N.C. x 2-1/4"
3шт.
3
92-8
LOCK WASHER,1/2"
3шт.
4
25-108
NUT,1/2"-13, G5
- hex., 1/2" - 13 N.C.
3шт.
5
217-179
FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB
Stem, Includes Ref. 6 1" Hose X 1 5/16"-12 ORB, Beaded
1шт.
6
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
7
L40247
HOSE,1" ID x 1.5" OD x 4" L
1.00" ID x 4.00", SAE 100R1, Low Pressure
1-2шт.
8
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, screw type
4шт.
9
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
1шт.
10
51200320
CLAMP
- tube
1шт.
11
95-8
WASHER,1/2"
flat 1/2"
1шт.
12
92-8
LOCK WASHER,1/2"
1шт.
13
25-108
NUT,1/2"-13, G5
- hex., 1/2" - 13 N.C.
1шт.
14
L53641
TUBE - valve to hydraulic tank, return, used before tractor S.N. 9116639 0.703" ID x 1" OD
1шт.
14a
L57873
TUBE - valve to hydraulic tank, return, used tractor S.N. 9116639 and after 45.4, 15.9" L
1шт.
14b
R13912
HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3
- low pressur 25.40 mm ID x 133.40 mm ID, SAE 100R3
1шт.
15
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR - straight, male, Incl. Ref. 16
1шт.
16
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
17
L52412
HOSE ASSEMBLY -, Serial Range: valve-pump
1шт.
18
L53125
TEE
- adjustable, Includes: Ref. 19
1шт.
19
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
20
221-655
PLUG,Hex Hd, 3/4"-14
- pipe, hex. head, 3/4" N.P.T.
1шт.
21
L52703
PUMP - hydraulic, parts list Figure 218
1шт.
22
A12304
GASKET,0.4mm Thk
-, Serial Range: pump-drive
1шт.
23
A27182
STUD
- special
4шт.
24
92-8
LOCK WASHER,1/2"
4шт.
25
25-108
NUT,1/2"-13, G5
- hex., 1/2" - 13 N.C., Includes: Ref. 26 and 27
4шт.
26
217-178
FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB
Stem 1 1/4" Hose X 1 5/8"-12 ORB, Beaded
1шт.
27
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
1шт.
28
R13911
HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3
- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3
2шт.
29
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose worm screw type
4шт.
30
L52409
TUBE - pump to hydraulic tank, suction 1.25" OD
1шт.
31
221-14
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - pipe, square head, 1/2" N.P.T.
1шт.
32
L58044
TUBE - suction, hydraulic filter to pump, units with line 1.25" OD x 8.5, 4.1" L
1шт.
33
R13911
HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3
- low pressure, units with suction line filter 31.80 mm ID x 101.60 mm ID, SAE 100R3
2шт.
34
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, worm screw type, units with suction line filter
6шт.
35
L57722
FITTING - hose, straight, units with suction line filter, Includes: Ref. 36
2шт.
36
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
units with suction line filter
1шт.
37
L57726
FILTER - hydraulic, in-line, parts list Figure 202, units with suction
1шт.
38
L57723
BRACKET - filter mounting, units with suction line
1шт.
39
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
Units with suction line filter Hex, 5/16"-18 x 7/8", G5, Full Thd
2шт.
40
92-5
LOCK WASHER,5/16"
units with suction line filter 5/16"
2шт.
41
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16", units with suction line filter
2шт.
42
18361
HOSE,1.25" ID x 5.00", SAE 100R3
- hydraulic filter to tank, units with suction line
1шт.
L57983
KIT
- in line modification. Refs. 34 - 42 are included in the kit., units with suction filter
1шт.
REF. 42 REPLACED BY R13912 ON LATER UNIT(NOT A SUB)
1шт.
