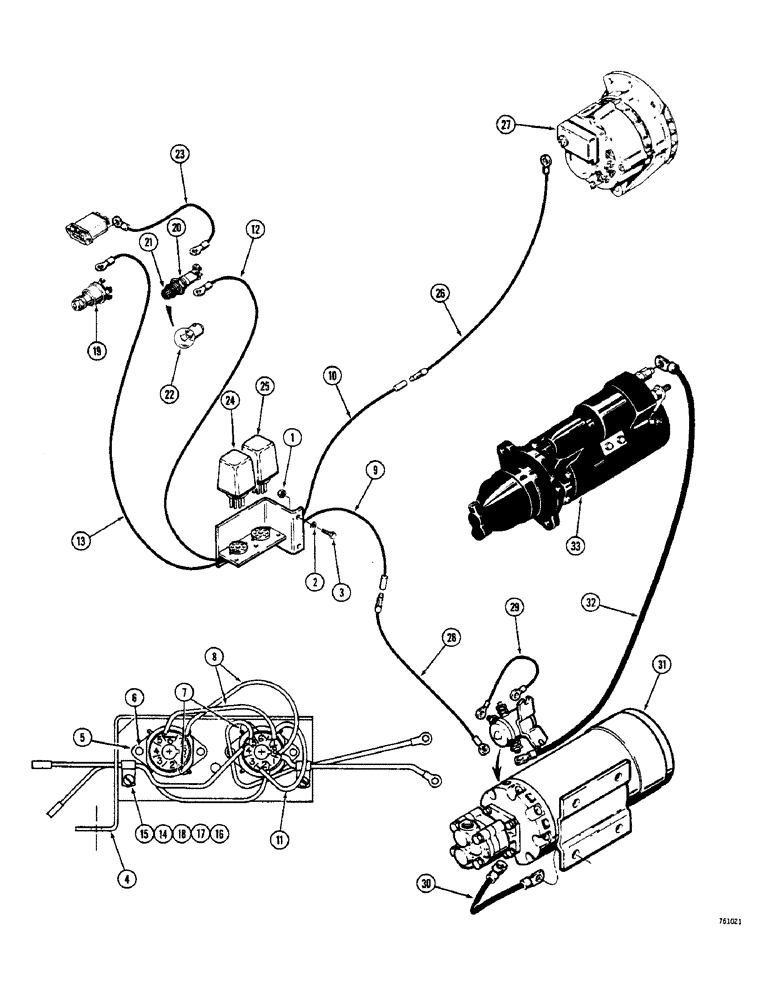

Запчасти Case 600 (088) - AUXILIARY STEERING ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

2

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

25-104

NUT,1/4"-20, G5

2шт.

L70992

RELAY - socket assembly, emergency steering, Includes: Ref. 4 - 18

1шт.

4

L70807

BRACKET

- sockets

1шт.

5

L57132

SOCKET

- relays

2шт.

6

151-526

RIVET,Pop, 1/8" x .337"

4шт.

7

L70845

ELECTRICAL WIRE

WIRE - ground

2шт.

8

L72412

WIRE -, Serial Range: relay-relay

2шт.

9

L70804

ELECTRICAL WIRE

WIRE -, Serial Range: relay-pump

1шт.

10

L58972

WIRE -, Serial Range: relay-alternator

1шт.

11

L57998

ELECTRICAL WIRE

WIRE - relay

1шт.

12

L79604

ELECTRICAL WIRE

WIRE -, Serial Range: relay-light

1шт.

13

L59287

WIRE - relay to ignition switch

1шт.

14

169-77

SCREW - no. 8 - 32 N.C. x 1/2"

2шт.

15

L70803

CLAMP

- wire

2шт.

16

195-10

WASHER,#8

2шт.

17

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

18

129-6

NUT,#8-32

2шт.

19

REF

INSTRUCTION

SWITCH - ignition, see figures 84 and 86

1шт.

L47161

LAMP BASE

LIGHT - emergency steering, warning, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

21

A15127

LENS

- red

1шт.

22

P0732978Q

SCREW

BULB - 24 volt

1шт.

23

L72419

WIRE - ground, light

1шт.

24

L58332

RELAY - emergency steering, green

1шт.

25

L58331

RELAY

- emergency steering, yellow

1шт.

26

L59284

WIRE -, Serial Range: relay-alternator

1шт.

27

REF

INSTRUCTION

ALTERNATOR - electrical, see figures 68 and 70

1шт.

28

L59285

WIRE - relay to emergency steering pump

1шт.

29

A18404

ELECTRICAL WIRE

WIRE - ground, solenoid

1шт.

30

L57536

CABLE

WIRE - ground, motor

1шт.

31

L70813

HYDRAULIC STEERING

PUMP AND MOTOR - emergency steering, see Figure 100

1шт.

32

L57534

CABLE

- engine starter to emergency steering motor

1шт.

33

REF

INSTRUCTION

STARTER - engine, see Figures 58 thru 64

1шт.
