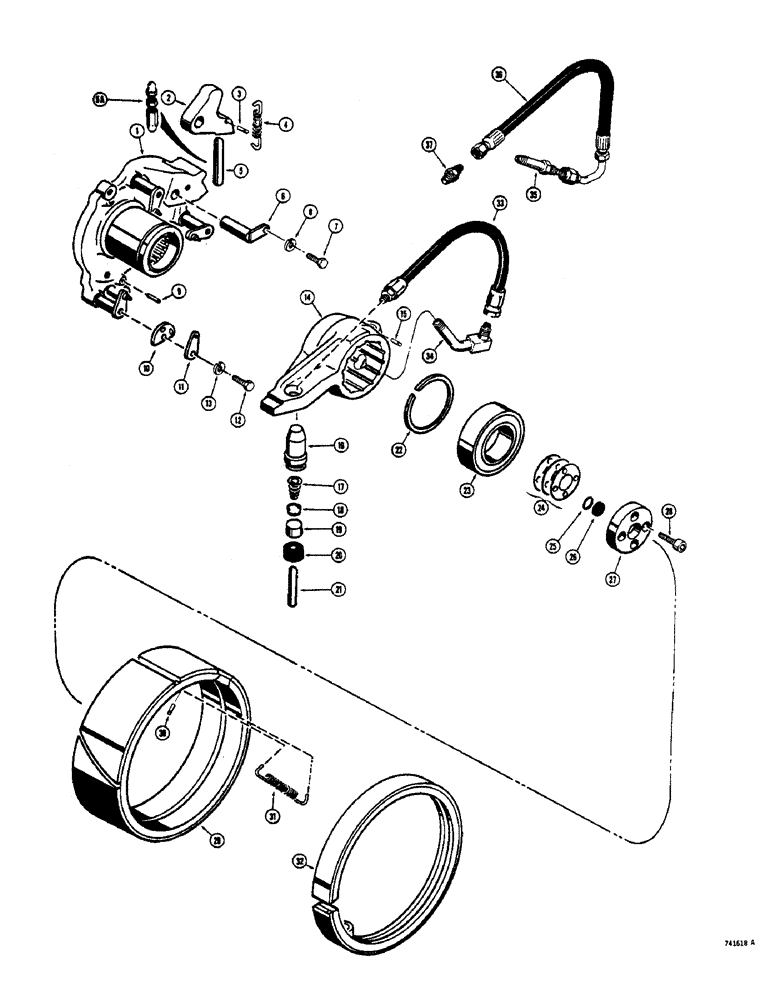

Запчасти Case 600 (278) - GEARMATIC WINCH, CLUTCH ASSEMBLY (05) - UPPERSTRUCTURE CHASSIS

1

D38170

HUB

- clutch

1шт.

2

D42861

LEVER

ARM - lever, Includes: Ref. 3

1шт.

3

135-1145

PIN - spring retaining

1шт.

4

D42858

SPRING

- lever arm

1шт.

5

D38199

PUSH ROD

ROD - push, secondary

1шт.

5a

R30411

PUSH ROD

ROD ASSEMBLY - push secondary, used on winch S.N. 19-9446 and after

1шт.

6

D38184

PIN

- pivot

1шт.

7

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

3шт.

10

D37854

CAM

- adjusting, used before winch S.N. 19-8421

6шт.

10

R24240

CAM

- adjusting, used after winch S.N. 19-8421 as production item or as service replacement or prior machine having original equipment clutch bands replaced by R24239 or R24238 bands

6шт.

11

D37855

PLATE

- lock

6шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

D42860

LEVER

- clutch, Includes: Ref. 15

1шт.

15

135-1145

PIN - spring retaining

1шт.

D37963

CYLINDER

ASSEMBLY - clutch, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

CYLINDER - clutch

1шт.

17

D37893

SPRING

1шт.

18

D37892

CUP

SEAL - u-cup

1шт.

19

D37891

PISTON

1шт.

20

D37889

BOOT

1шт.

21

D38193

ROD

- push, clutch

1шт.

22

D38220

RING, SNAP

RING - snap

1шт.

23

D38347

BEARING, BALL,80 mm ID x 140 mm OD x 26 mm

BEARING - ball

1шт.

24

D38178

SHIM SET

1шт.

25

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

26

D37922

SEAL

- u-cup

1шт.

27

D38179

CAP

- gland

1шт.

28

62-620

HEX SOC SCREW,3/8"-24 x 1 1/4"

BOLT - hex., 3/8" - 24 N.F. x 1-1/4", grade 8

4шт.

29

D42859

BAND

- clutch, secondary, .148" to .155" wide grooves, used before winch S.N. 19-9421, when stock is exhausted, use R24239 band and (3) R24240 adjusting cams for service, Includes: Ref. 30

1шт.

29

R24239

BAND

- clutch, secondary, .200" to .210" side grooves, used on winch S.N. 19-8421 and after as production item and as service replacement on prior models, Includes: Ref. 30

1шт.

30

135-1145

PIN - spring retaining, if used

2шт.

31

D42858

SPRING

- clutch, if used

1шт.

32

D38173

BAND

- clutch, primary, .148" to .155" wide groove, use before winch S.N. 19-8421, when stock is exhausted, used R24238 band and (3) R24240 adjusting cams for service

1шт.

32

R24238

BAND

- clutch, primary, .200" to .210" wide groove, used on winch S.N. 19-8421 and after as production item and as service replacement on prior models, early production

1шт.

33

D38194

HOSE

- clutch, early production

1шт.

34

D48849

FITTING - special, when stock is exhausted, use R24122 hose and fitting kit for service, early production

1шт.

R24122

HOSE

KIT - hose and fitting, clutch, late production, Includes: Ref. 35 - 37

1шт.

35

R24126

CONNECTOR, ELEC

CONNECTOR - 1/8" N.P.T. x 1/4" tube, at cylinder, late production

1шт.

36

R24124

HOSE

- to clutch cylinder, late production

1шт.

37

R24125

FITTING

- clutch hub, late production

1шт.
