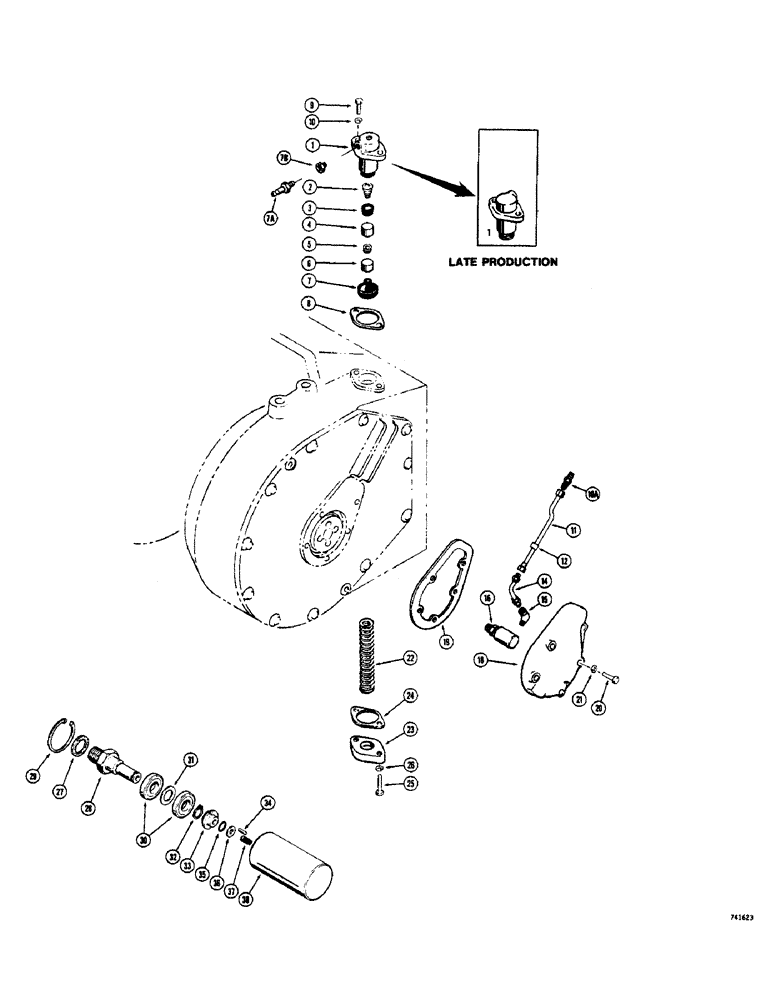

Запчасти Case 600 (268) - RHINOMATIC WINCH, BRAKE CYLINDER AND TUBE (05) - UPPERSTRUCTURE CHASSIS

L35176

CYLINDER ASSEMBLY - brake, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - brake

1шт.

2

L35183

SPRING - cap

1шт.

3

L35182

CUP

U-CUP - piston, Includes: Ref. 4 - 8

1шт.

4

L35181

PISTON - primary

1шт.

5

L35180

SPRING - piston

1шт.

6

L35179

PISTON - push rod

1шт.

7

L35178

BOOT - brake cylinder

1шт.

7a

L35397

VALVE - bleeder, see inset for usage after winch S.N. 2400

1шт.

7b

L35398

ADAPTER - bleeder valve, see inset for usage after winch S.N. 2400

1шт.

8

L35177

GASKET

- brake cylinder

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

10a

218-1550

ADAPTER

- hydraulic, Serial Range: 1-1/4"-1-1/2"

1шт.

11

L35191

TUBE ASSEMBLY - brake cylinder, flex

1шт.

12

L35190

GROMMET - rubber

1шт.

14

L35188

TUBE

ASSEMBLY - brake cylinder, rigid

1шт.

15

222-1022

ELBOW,90 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 90 degrees

1шт.

16

L35153

SEAL

ASSEMBLY - rotary, see parts list below

1шт.

18

L35189

CAP - end

1шт.

19

L35186

GASKET

- cap, end

1шт.

20

13-625

BOLT - hex., 3/8" - 16 N.C. x 1-9/16"

5шт.

21

92-6

LOCK WASHER,3/8"

5шт.

22

L35185

SPRING

- brake

1шт.

23

L35175

CAP - spring

1шт.

24

L35177

GASKET

- brake cylinder

1шт.

25

13-638

BOLT,Hex, 3/8" - 16 x 2-3/8", Gr 5

- hex., 3/8" - 16 N.C. x 2-3/8"

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

L35153

SEAL

ASSEMBLY - rotary, L35153 rotary seal, Includes: Ref. 27 - 38

1шт.

27

T41955

GASKET

- rotor, L35153 seal

1шт.

28

L35481

ROTOR - seal assembly, L35153

1шт.

29

49481

SNAP RING,0.866", Int, #87

Ring, Snap, , brg outside, L35153 rotary seal 0.866", Int, #87

1шт.

30

L35477

BEARING - ball type, L35153 rotary seal

2шт.

31

T41962

BUSHING

SPACER - bearing, L35153 rotary seal

1шт.

32

T41957

RING

- retaining, bearing, inside, L35153 rotary seal

1шт.

33

T42356

SEAL

- floating bronze, L35153 rotary

1шт.

34

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Key, L35153 rotary seal 3/32" x 7/16", Slotted

2шт.

35

L35478

O-RING, L35153 rotary seal

1шт.

36

T41960

GUIDE

- seal, L35153 rotary

1шт.

37

L35476

SPRING - guide tension, L35153 rotary seal

1шт.

38

T41953

HOUSING - rotary seal, L35153

1шт.
