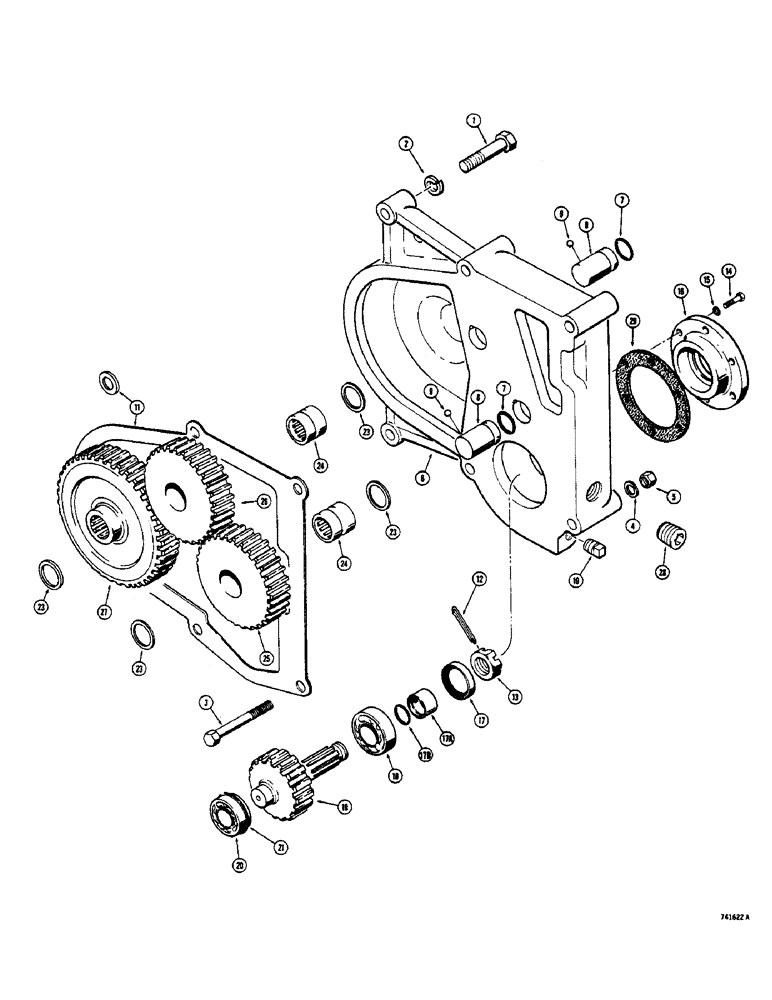

Запчасти Case 600 (260) - RHINOMATIC WINCH, WINCH ADAPTER PARTS (05) - UPPERSTRUCTURE CHASSIS

1

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

13-1284

CAPSCREW,Hex, 3/4" - 10 x 5 1/4", Gr 5

BOLT - hex., 3/4" - 10 N.C. x 5-1/4"

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

25-1012

NUT,3/4"-10, G5

4шт.

6

L35087

HOUSING - winch adapter

1шт.

7

L35199

O-RING

2шт.

8

L35200

SHAFT - idler gear

2шт.

9

211-11

BALL,3/8" Dia

- steel, 3/8"

2шт.

10

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - drain, square socket head, 1/2" N.P.T.

1шт.

11

L35088

GASKET

- housing

1шт.

12

132-58

COTTER PIN

PIN - cotter, 1/8" dia. x 2-1/4"

1шт.

13

F19657

NUT

- hex., slotted, special

1шт.

14

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

6шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

L35198

HOUSING - bearing, P.T.O. shaft

1шт.

17

L35196

OIL SEAL

SEAL - oil

1шт.

17a

L36078

COLLAR - oil seal

1шт.

17b

L36079

O-RING

1шт.

18

L35195

BALL BEARING

BEARING - ball type

1шт.

19

L35194

GEAR AND SHAFT - P.T.O., 15 teeth

1шт.

20

L35193

BEARING - ball type, Includes: Ref. 21

1шт.

21

NSS

NOT SOLD SEPARAT

SNAP RING - bearing retaining

1шт.

23

L35201

SPACER - idler gear

4шт.

24

L35202

NEEDLE BEARING

BEARING - needle type

2шт.

25

L35203

GEAR - idler, 30 teeth

1шт.

26

L35204

GEAR - idler, 22 teeth

1шт.

27

L35192

GEAR - pinion, 38 teeth

1шт.

28

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- bearing, square socket head, 3/4" N.P.T.

1шт.

29

L35197

GASKET - housing, bearing

1шт.
