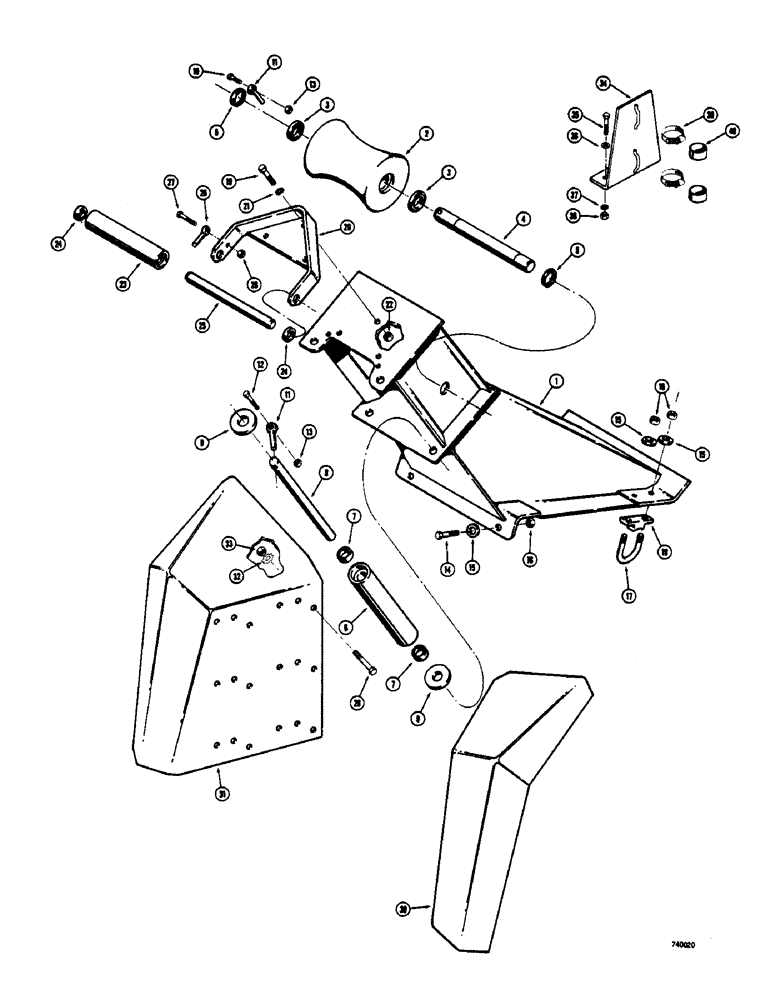

Запчасти Case 600 (252) - FAIRLEAD FRAME, FAIRLEADS AND FENDERS (05) - UPPERSTRUCTURE CHASSIS

1

L51782

FRAME - fairlead

1шт.

2

L49631

ROLLER - top, Includes: Ref. 3

1шт.

3

D53312

BEARING

- top roller

2шт.

4

L51795

SHAFT - top roller

1шт.

5

L51927

WASHER - roller shaft

2шт.

6

L52528

ROLLER - side, Includes: Ref. 7

2шт.

7

L52526

BALL BEARING,1.378" ID x 3.1496" OD x 0.8286"

BEARING - side roller

2шт.

8

L52529

SHAFT - side roller

2шт.

9

T25644

WASHER

- side shaft

1шт.

10

113-403

BOLT

- locking type, 1/2" - 13 N.C. x 1"

1шт.

11

R17756

ROD,12.7mm OD x 109.54mm L

AND EYE - shaft retaining

3шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - hex., lock, 1/2" - 13 N.C.

2шт.

14

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

15

L54550

WASHER

- special

6шт.

16

25-1012

NUT,3/4"-10, G5

6шт.

17

L51803

U-BOLT - saddle clamp

2шт.

18

L52651

SADDLE - clamp

2шт.

19

164-582

SCREW - button, hex., socket head, 5/8" - 11 N.C. x 1-3/4"

3шт.

20

L55542

BRACKET - top roller

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

22

25-1010

NUT,5/8"-11, G5

3шт.

23

L51796

ROLLER - fairlead, top, Includes: Ref. 24

1шт.

24

L49605

BEARING - top fairlead roller

2шт.

25

L51798

SHAFT

- top roller, when stock is exhausted, order L55543 shaft for service

1шт.

25

L55543

SHAFT

- top roller

1шт.

26

R17756

ROD,12.7mm OD x 109.54mm L

AND EYE - shaft retaining

1шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

28

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - hex., lock, 1/2" - 13 N.C.

1шт.

29

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

12шт.

30

L53488

FENDER - rear, R.H.

1шт.

31

L53487

FENDER - rear, L.H.

1шт.

32

L74506

WASHER

- special, hardened

12шт.

33

25-1012

NUT,3/4"-10, G5

12шт.

34

L58064

BRACKET - mounting, hose

1шт.

35

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex., 1/2" - 13 N.C. x 2-1/4"

2шт.

36

95-8

WASHER,1/2"

flat 1/2"

2шт.

37

92-8

LOCK WASHER,1/2"

2шт.

38

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

2шт.

39

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose, mounting bracket

2шт.

40

L58491

HOSE - hose protecting

2шт.
