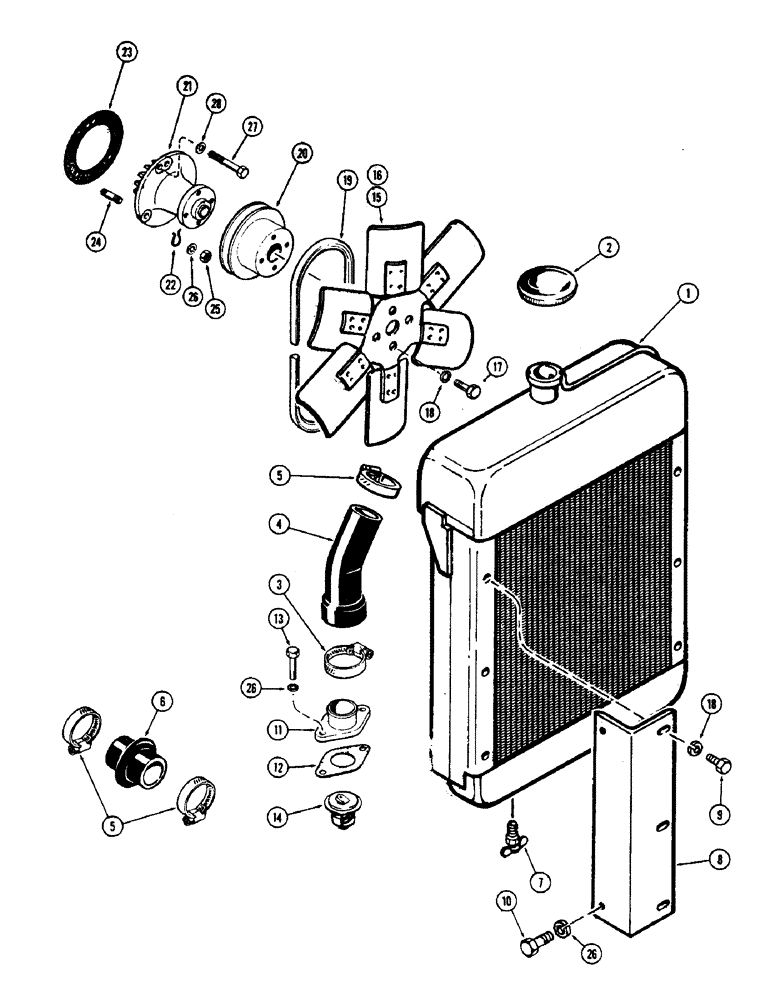

Запчасти Case 500 (004) - ENGINE COOLING SYSTEM, (188) DIESEL ENGINE (01) - ENGINE

1

A15678

RADIATOR - engine coolant

1шт.

A22943

SHROUD - fan, radiator (Not illust.)

1шт.

NSS

NOT SOLD SEPARAT

SCREW - shroud attaching (Not illust.)

1шт.

2

A21389

CAP

- pressure, radiator (7 lbs.)

1шт.

3

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

4

A15642

HOSE - radiator, upper

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

3шт.

6

A16419

HOSE - outlet, radiator

1шт.

7

A23655

VALVE

- drain, radiator

1шт.

8

A15639

SUPPORT - mtg., radiator L.H. & R.H.

2шт.

9

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

6шт.

10

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F., hex.

4шт.

11

G2144

FITTING

CONNECTION - outlet and thermostat

1шт.

12

G46907

GASKET

- hsg., outlet & thermostat

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

G45788

THERMOSTAT - water temperature

1шт.

15

A15478

FAN - radiator, suction type

1шт.

16

A15480

FAN

- radiator, pusher type

1шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

19

92-5

LOCK WASHER,5/16"

10шт.

19

46238

PLATE

BELT - fan

1шт.

20

G11339

PULLEY

- fan and water pump

1шт.

21

A37758

PUMP

ASSY. - water (Replaces G11939)

1шт.

21

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

21

A146584R

REMAN-WATER PUMP

Reman For New P/N A37758, Assy

1шт.

21

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

22

A30067

RING

- retainer

1шт.

23

A38083

GASKET

- mtg., water pump

1шт.

24

A29433

STUD

- mtg., water pump

3шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C., hex.

3шт.

26

92-6

LOCK WASHER,3/8"

9шт.

27

A38085

BOLT

- 3/8 x 2-7/8" N.C. hex.

1шт.

28

A7085

WASHER

- 25/64 x 9/16 x 3/64" copper

1шт.
