Запчасти Case 500 (116) - A56146 VALVE (07) - HYDRAULIC SYSTEM

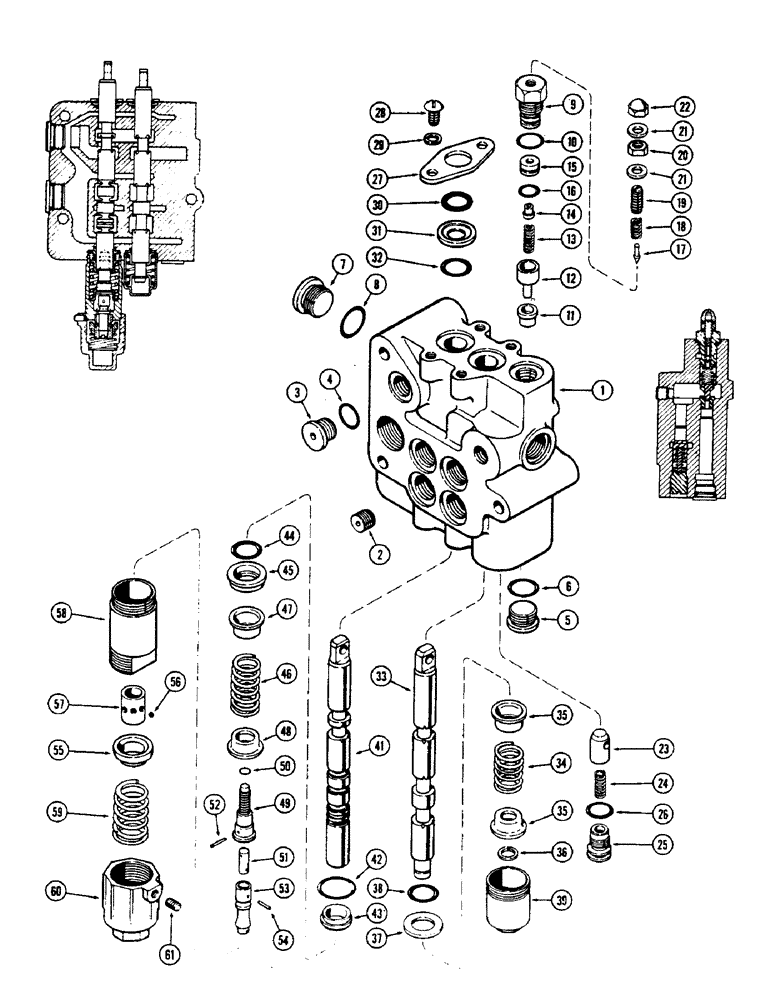

Схема запчастей Case 500 - (116) - A56146 VALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

A56146

VALVE ASSY. - control (Not illust.)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

221-841

PLUG

- body, 1/4" P.T., sckt. hd.

1шт.

3

9672438

PLUG,7/16" - 20 ORB

Assy, Body Hex Hd, 7/16"-20 ORB

1шт.

4

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - 23/64" I.D. x 5/64"

1шт.

5

86512512

PLUG,7/8" - 14 ORB

Body Hex Hd, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4" I.D. x 3/32"

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, Body Hex Hd, 1 1/16"-12 ORB

2шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 59/64" I.D. x 1/8"

1шт.

9

D26262

CAP

- relief valve body

1шт.

11

D26259

SEAT

- relief valve plunger

1шт.

12

A16888

VALVE POPPET

PLUNGER - relief valve

1шт.

13

D26261

VALVE SPRING

SPRING - plunger, 7/16" O.D., 15/16" free length

1шт.

14

D26266

SEAT

- pilot plunger

1шт.

15

D26264

X

RING - seat guide

1шт.

16

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" RING - guide ring seal

1шт.

17

D26267

PLUNGER

- pilot, relief valve

1шт.

18

D26268

SPRING

- plunger, 1/4" O.D. x 27/32" free length

1шт.

19

82-514

SET SCREW

SCREW - set, 5/16" x 7/8" N.F. sltd. hdless, cup pt.

1шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

- lock, adj. screw, 5/16" N.F. half hex.

1шт.

21

D26270

WASHER, SEALING

SEAL - lock & cap nuts

2шт.

22

129-514

CROWN NUT,Low, 5/16" - 24

- cap, relief valve, 5/16" N.F. acorn

1шт.

23

A16886

VALVE POPPET

POPPET - check valve

1шт.

24

A14520

VALVE SPRING

SPRING - check valve, 3/8" O.D. x 1-1/4" free length

1шт.

25

A14532

CAP

- check valve

1шт.

26

A14546

O-RING

"O" RING - check valve cap

1шт.

27

A14531

PLATE ASSY.

PLATE - spool retainer

2шт.

28

75-610

X

SCREW - plate, 3/8 x 5/8" N.C., rd. hd.

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

A14527

SCRAPER

WIPER - spool

2шт.

31

A14526

RETAINER

- "O" ring & wiper

1шт.

32

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - spool (In upper body)

2шт.

D26244

SPOOL

ASSY. - tilt (Not illust.)

1шт.

33

NSS

NOT SOLD SEPARAT

SPOOL - tilt (Order D26244)

1шт.

34

A14534

SPRING

- tilt spool, 1-5/32" O.D., 1-27/32" free length

1шт.

35

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

26

A13190

X

RING - snap, spring ret.

1шт.

27

A14535

RETAINER

- "O" ring

1шт.

38

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - tilt spool (In lower body)

1шт.

39

A14529

CAP

- tilt spool end

1шт.

A25563

SPOOL

ASSY. - float (Not illust.)

1шт.

41

NSS

NOT SOLD SEPARAT

SPOOL - float (Order A25563)

1шт.

42

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - inner, 23/64" I.D. x 5/64"

1шт.

43

A25565

X

RETAINER - inner "O" ring

1шт.

44

A16877

SEAL

"O" RING - outer

1шт.

45

A25566

X

RETAINER - outer "O" ring

1шт.

46

A16882

SPRING

- float spool, inner

1шт.

47

A16879

SPACER

RETAINER - inner spring, upper

1шт.

48

A16881

SEAT

RETAINER - inner spring, outer

1шт.

49

A25567

PLUG - valve

1шт.

50

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - plug

1шт.

51

A25568

X

LINK - plug & barrel

1шт.

52

A25571

X

PIN -, Serial Range: link-plug

1шт.

53

A25569

BARREL - detent ball

1шт.

54

A25570

X

PIN -, Serial Range: link-barrel

1шт.

55

A16848

SLEEVE CYLINDER

SLEEVE - detent

1шт.

56

A16851

X

BALL - detent

6шт.

57

A16852

RETAINER

- detent balls

1шт.

58

A16885

X

CAP - spool, bottom

1шт.

59

A16853

VALVE SPRING

SPRING - float spool, outer

1шт.

60

A16884

CYLINDER END CAP

CAP - top

1шт.

61

A16855

SCREW

- cap retaining

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - cap, 41/64" I.D. x 3/32"

1шт.
