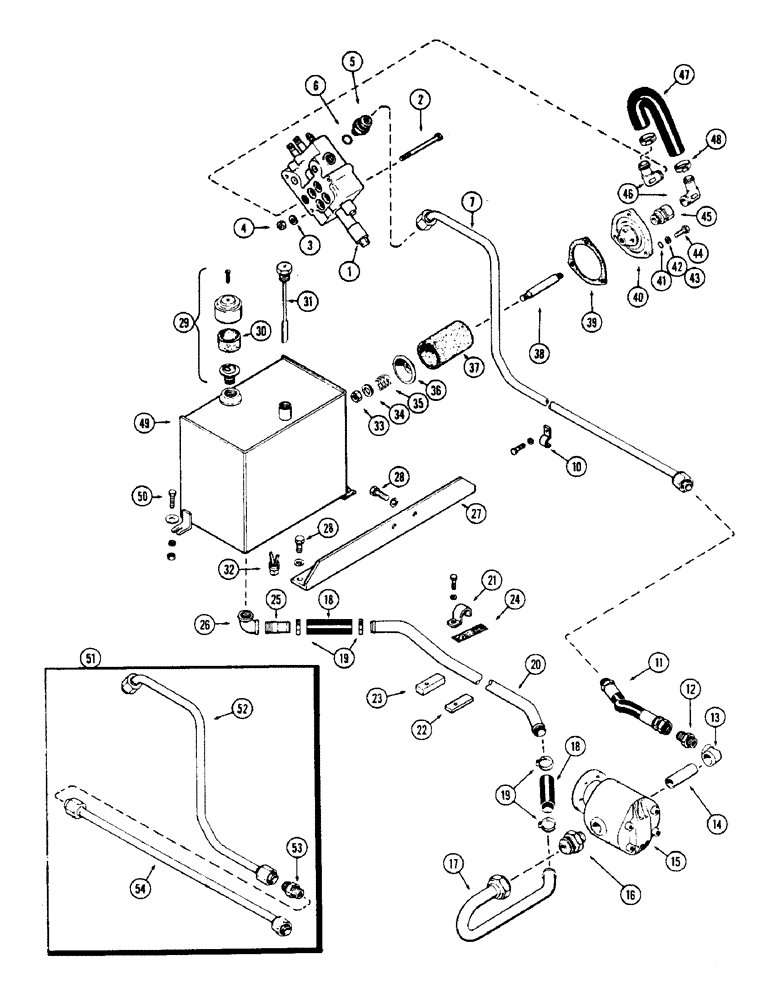

Запчасти Case 500 (114) - HYDRAULIC RESERVOIR CIRCUIT (07) - HYDRAULIC SYSTEM

1

A56146

VALVE ASSY. - hyd. control (Repair, figure 116)

1шт.

2

16-668

BOLT - 3/8 x 4-1/4" N.F., hex.

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

3шт.

5

A13681

X

ADAPTER - fitting, hydraulic

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - adapter

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE ASSY. - valve to pump hose (Order replacement kit A19336) (Item 51)

1шт.

10

A13680

CLAMP - hydraulic tube

2шт.

11

A16392

HOSE - hyd., pump to press. tube

1шт.

12

218-447

HYD CONNECTOR,1-3/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight hyd., 7/8" O.D. x 3/4" P.T.

1шт.

13

221-1378

ELBOW,90º, 3/4" NPT

- hydraulic, 3/4" P.T. x 90 degree

1шт.

14

221-1218

NIPPLE, LUBE

NIPPLE - hydraulic, 3/4" P.T. x 3-1/2" lg.

1шт.

15

14230

HOSE

PUMP ASSY. - hyd. oil (Repairs, figure 110)

1шт.

16

218-460

ADAPTER

- pump outlet

1шт.

17

A16693

TUBE ASSY. - pump suction

1шт.

18

A15794

HOSE - hydraulic tube

2шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

20

A13685

TUBE ASSY. - pump suction

1шт.

21

A13686

CLAMP - hyd., suction tube

2шт.

22

A13687

SPACER - rear, suction tube

1шт.

23

L10691

SPACER - suction tube

1шт.

24

A13688

ANTI-SQUEAK - suction tube clamp

2шт.

25

A12294

NIPPLE, LUBE

NIPPLE - suction, Serial Range: tube-tank

1шт.

26

221-1379

ELBOW

- oil tank, 1" P.T. x 90 degrees

1шт.

27

A13440

ANGLE - support, oil tank rear

1шт.

28

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-1/2" N.F., hex.

4шт.

29

A9238

BREATHER

ASSY. - oil tank

1шт.

30

A10059

FILTER, ELEMENT

ELEMENT - filter, breather

1шт.

31

A13725

GAUGE ASSY. - oil filler level

1шт.

32

A17429

PLUG

- drain, oil tank (Magnetic)

1шт.

33

25-118

NUT,1/2"-20, G5

- 1/2" N.F., hex.

1шт.

34

A13730

WASHER - support, filter

1шт.

35

A27379

SPRING

- retainer, filter element

1шт.

36

A27666

RETAINER

- filter element

1шт.

37

A27377

FILTER CARTRIDGE

ELEMENT - filter, hyd. oil

1шт.

38

A13729

STUD - support, filter

1шт.

39

A28265

GASKET

- mtg., filter flange

1шт.

40

A13728

FLANGE - oil filter

1шт.

41

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - sealing, flange bolt

3шт.

42

195-25

WASHER,3/8"

- 13/16 x 13/32 x 1/64"

3шт.

43

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

3шт.

44

A16899

BOLT - mtg., filter flange

3шт.

45

218-904

HYD CONNECTOR,3/4" NPT x 3/4" ORFS

FITTING - union, straight male adapt.

1шт.

46

A16619

ELBOW - hose nipple & P.T. end, 90 degree

2шт.

47

A16599

HOSE - valve to oil tank

1шт.

48

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-13/16" to 1-3/4" dia.

2шт.

49

A13715

TANK - reservoir, hyd. oil

1шт.

50

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8 x 1" N.F. hex.

3шт.

51

A19336

REPLACEMENT KIT - press tube

1шт.

52

A19333

TUBE ASSY. - press., valve to conn.

1шт.

53

218-437

ADAPTER - hyd., pressure tube

1шт.

54

A19335

TUBE ASSY. - hyd. pressure, rear

1шт.
