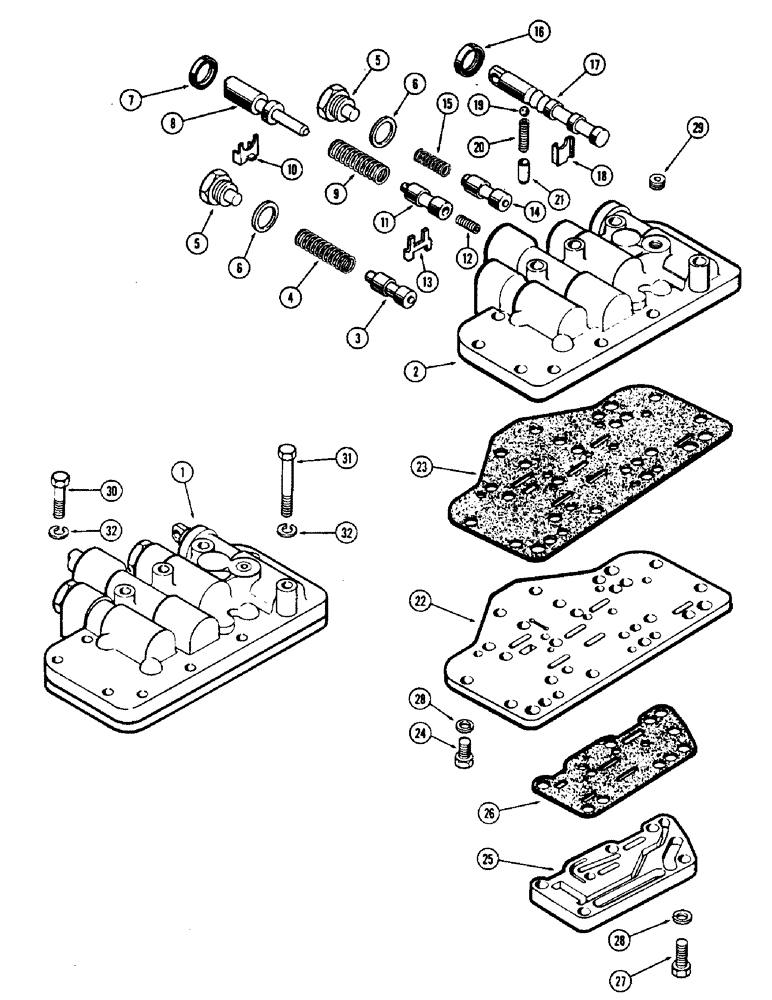

Запчасти Case 500 (082) - L30252 CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

L30252

VALVE

ASSY. - control

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order L30252)

1шт.

3

A14883

PLUNGER

VALVE - pressure regulator

1шт.

4

A14885

VALVE SPRING

SPRING - reg. valve (2-3/32" free length)

1шт.

5

A14882

SCREW

- regulator & supply valve ret.

2шт.

6

G10964

WASHER

GASKET - screw (25/32 x 1 x 1/32" copper)

2шт.

7

A14877

SEAL

- oil (11/16 x 1-1/16 x 3/16")

1шт.

8

A14873

PLUNGER

- clutch control

1шт.

9

A14874

VALVE SPRING

SPRING - plunger (2" free length)

1шт.

10

A14876

STOP

- clutch control plunger

1шт.

11

A14878

PLUNGER

VALVE - clutch control

1шт.

12

A14879

VALVE SPRING

SPRING - valve (5/8" free length)

1шт.

13

A14880

STOP

- clutch control valve

1шт.

14

A14884

PLUNGER

VALVE - clutch supply

1шт.

15

A14881

VALVE SPRING

SPRING - valve (1-3/64" free length)

1шт.

16

A14863

OIL SEAL

SEAL - oil (9/16 x 1 x 1/4")

1шт.

17

L30255

SPOOL

- direction selector

1шт.

18

A14866

STOP

- selector spool

1шт.

19

211-7

BALL,1/4" Dia

- valve detent 1/4" Dia

1шт.

20

A14865

SPRING

- detent ball (29/32" free length)

1шт.

21

A14864

PLUNGER

SLEEVE - detent spring

1шт.

22

A14868

PLATE - valve body seperator (Can use L30973)

1шт.

23

A14869

GASKET

- seperator plate to valve body (Can use L30974)

1шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Plate to body Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

25

A14870

COVER - valve body

1шт.

26

A14871

GASKET

-, Serial Range: cover-plate

1шт.

27

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- cover to body, 5/16 x 1-1/4" N.C. hex.

6шт.

28

92-5

LOCK WASHER,5/16"

8шт.

29

221-1661

PLUG

- body, 1/8" P.T., ctsk. sckt. hd.

2шт.

30

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

8шт.

31

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

32

92-5

LOCK WASHER,5/16"

12шт.
