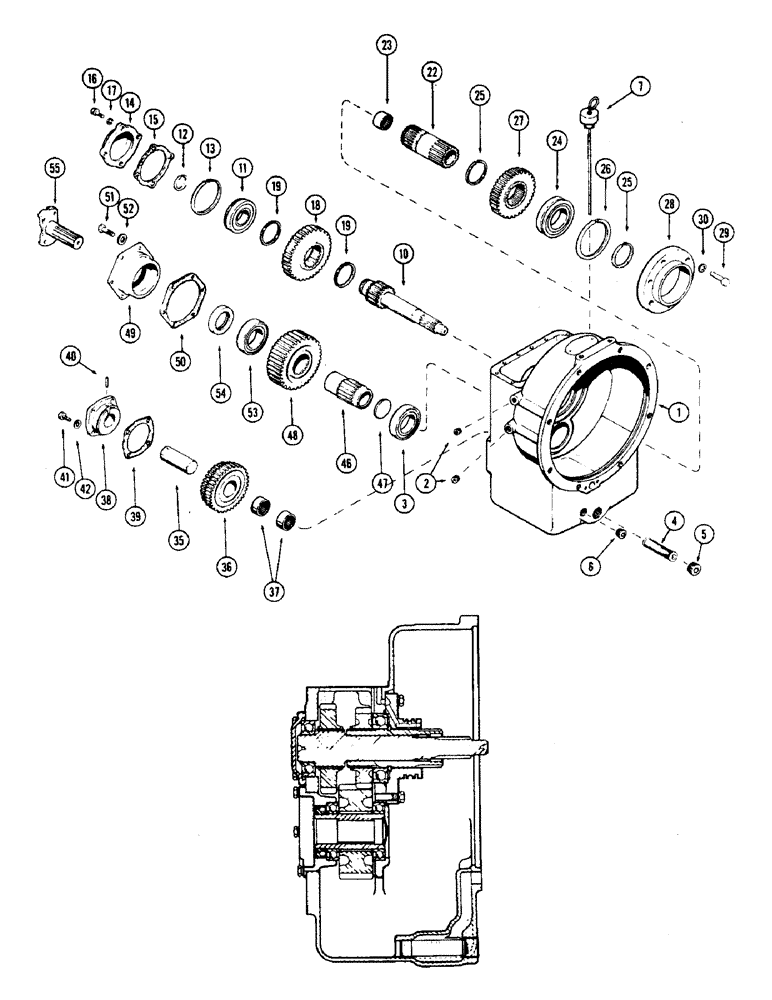

Запчасти Case 500 (080) - POWER SHUTTLE TRANSMISSION AND CASE (07) - HYDRAULIC SYSTEM

1

L30730

CASE ASSY.

- with tube (Replaces L30318)

1шт.

2

221-1662

PLUG

- 1/4" P.T., sq. hd.

2шт.

3

H13075

BEARING - ball, output shaft, 1-25/32 x 2-61/64 x 5/8"

1шт.

4

L30226

FILTER SCREEN

SCREEN ASSY. - oil

1шт.

5

221-45

X

PLUG - oil screen hole, 3/4" P.T., ctsk. hd.

1шт.

6

221-654

PLUG,Hex Hd, 1/2"-14

- drain, trans. case, 1/2" P.T., sq. hd.

1шт.

7

A14837

DIPSTICK

ASSY. - oil bayonette gauge

1шт.

10

A14850

SHAFT

- reverse drive

1шт.

11

A37733

BALL BEARING

BEARING - ball, reverse shaft, 1-3/8 x 2-27/32 x 43/64"

1шт.

12

A14835

RING, SNAP

RING - snap, brg. ret., small

1шт.

13

A28153

RING

- snap, brg. ret., large

1шт.

14

A14854

RETAINER - reverse shaft brg. ret.

1шт.

15

A14855

GASKET

- reverse shaft brg. retainer

1шт.

16

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Retainer Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

A14853

GEAR

- reverse (35 teeth)

1шт.

19

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, reverse gear ret.

2шт.

22

L30230

SHAFT

ASSY. - forward drive, Use serial number 1081 and after

1шт.

23

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING - needle

1шт.

24

G13607

BALL BEARING

BEARING - ball, forward shaft, 1-31/32 x 3-35/64 x 25/32"

1шт.

25

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, gear & brg. ret.

2шт.

26

L30233

RING, SNAP

RING - snap, brg. ret., large

1шт.

27

A14859

GEAR - forward (31 teeth)

1шт.

28

L30236

RETAINER

- forward shaft brg.

1шт.

29

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- retainer, 5/16 x 1-1/4" N.C. hex.

6шт.

30

92-5

LOCK WASHER,5/16"

6шт.

35

A14841

SHAFT

- idler gear

1шт.

36

A14840

GEAR ASSY. - idler (31 and 35 teeth)

1шт.

37

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

BEARING - needle

2шт.

38

A14843

CAP

RETAINER - idle gear shaft

1шт.

39

A14844

GASKET

- idler gear retainer

1шт.

40

A14842

PIN

- lock, idler shaft, 1/4 x 1"

1шт.

41

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Retainer Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

42

92-5

LOCK WASHER,5/16"

4шт.

46

L30336

SHAFT

ASSY. - output (Replaces L30227)

1шт.

47

A7509

PLUG

- expansion

1шт.

48

A14845

GEAR - output shaft (37 teeth)

1шт.

49

A14847

RETAINER

- output shaft brg.

1шт.

50

A14848

GASKET

- output shaft brg. retainer

1шт.

51

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Retainer Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

52

A17864

SEAL

- bolt, 5/16 x 1/2 x 5/64"

6шт.

53

G13075

BEARING, BALL

BEARING - ball, output shaft, 1-25/32 x 2-61/64 x 5/8"

1шт.

54

A14849

X

SEAL - oil, output shaft, 1-3/4 x 2-5/8 x 7/16"

1шт.

55

A13914

YOKE

FLANGE - output

1шт.
