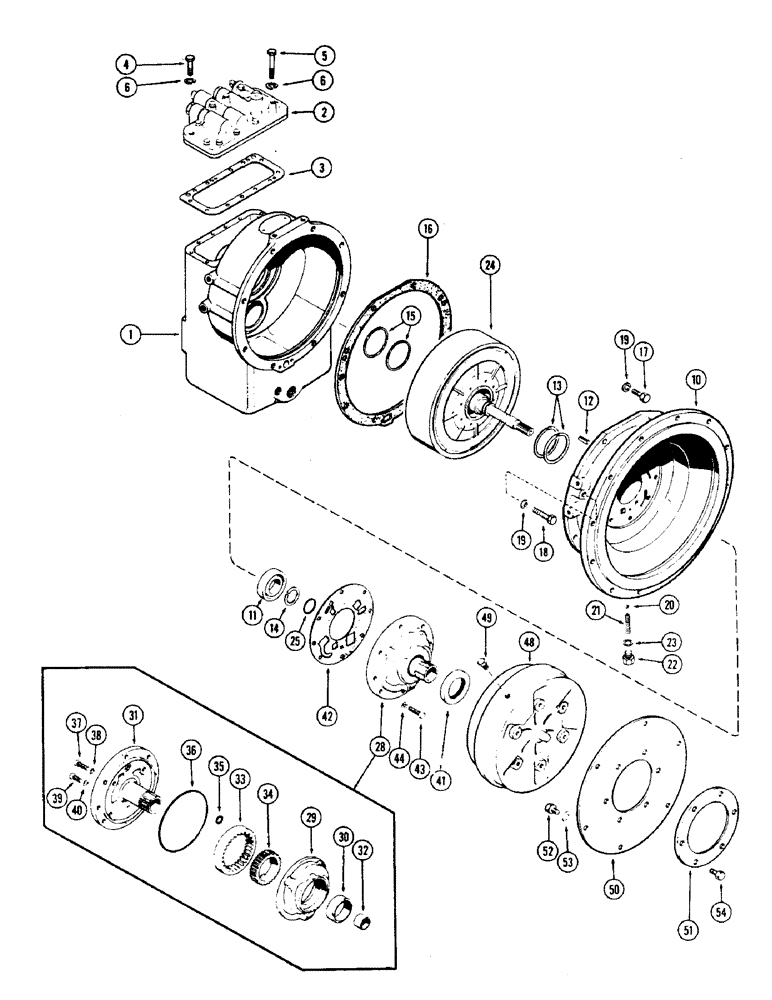

Запчасти Case 500 (078) - CONVERTER, HOUSING AND PUMP (07) - HYDRAULIC SYSTEM

1

L30730

CASE ASSY.

- transmission (See ref. #1 figure 80) (Replaces L30318)

1шт.

2

L30252

VALVE

ASSY. - control (See figure 82)

1шт.

3

A14862

X

GASKET - control valve to trans. hsg.

1шт.

4

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- valve, 5/16 x 1-1/4" N.C. hex.

8шт.

5

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Valve Hex, 5/16"-18 x 2 1/4", G5

4шт.

6

92-5

LOCK WASHER,5/16"

12шт.

10

A14808

HOUSING ASSY. - converter

1шт.

11

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, 1-3/8 x 2-27/32 x 45/64"

1шт.

12

L30245

PLUG

- conv. hsg., 7/32 x 1/4"

2шт.

13

A14833

SEALING RING

RING - sealing, conv. hsg. (3" closed diameter)

2шт.

14

A14835

RING, SNAP

RING - snap, brg. ret.

1шт.

15

L30237

SEAL

RING - sealing, trans. hsg. (3-1/2" closed dia.)

2шт.

16

A14886

GASKET

- conv. hsg. to trans. case

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Conv. hsg. Hex, 3/8"-16 x 1 1/8", G5, Full Thd

5шт.

18

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

Conv. housing Hex, 3/8"-16 x 1 5/8", G5

3шт.

19

92-6

LOCK WASHER,3/8"

8шт.

20

211-11

BALL,3/8" Dia

- relief valve (.) 3/8" Dia

1шт.

21

L30251

VALVE SPRING

SPRING - relief valve (2-3/32" free length)

1шт.

22

A14811

SEAT, VALVE

PLUG - relief valve

1шт.

23

A14810

WASHER

GASKET - plug (37/64 x 13/16 x 20 ga., copper)

1шт.

24

L30700

CLUTCH ASSY. - forward & reverse (See figure 83A) (Replaces L30238)

1шт.

25

A14834

RING,31.64mm ID x 34.94mm OD x 2.37mm Thk

- sealing, clutch (1-3/8" closed dia.)

1шт.

28

A14812

PUMP & STATOR ASSY.

1шт.

No service breakdown on this pump

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - pump (Order A14812)

1шт.

30

NSS

NOT SOLD SEPARAT

BUSHING - body, 2-1/8 x 2-15/16 x 49/64"

1шт.

31

NSS

NOT SOLD SEPARAT

SUPPORT - stator (Order A14812)

1шт.

32

NSS

NOT SOLD SEPARAT

BUSHING - stator, 1-1/16 x 1-3/16 x 3/4"

1шт.

33

NSS

NOT SOLD SEPARAT

GEAR - driven (35 int. teeth) (Order A14812)

1шт.

34

NSS

NOT SOLD SEPARAT

GEAR - drive (29 ext. teeth) (Order A14812)

1шт.

35

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil port, 1/2 x 11/16 x 3/32"

1шт.

36

A14816

O-RING

"O" RING - body, 5-1/2 x 5-3/4 x 1/8"

1шт.

37

NSS

NOT SOLD SEPARAT

BOLT - pump, 1/4 x 1" N.C., hex. sckt. hd.

1шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

NSS

NOT SOLD SEPARAT

BOLT - pump, 5/16 x 3/4" N.C., hex. sckt. hd.

4шт.

40

92-5

LOCK WASHER,5/16"

4шт.

41

A14813

SEAL

SEAL - oil, body, 2-1/8 x 2-7/8 x 3/8"

1шт.

42

A14817

GASKET

- stator to conv. hsg.

1шт.

43

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Stator Hex, 5/16"-18 x 1 1/8", G5

8шт.

44

92-5

LOCK WASHER,5/16"

8шт.

48

A13825

CONVERTER

ASSY. - torque

1шт.

49

221-651

PLUG,Hex Hd, 1/8"-27

- 1/8" P.T., hex. hd.

1шт.

50

A15670

PLATE

-, Serial Range: converter-flywheel

1шт.

51

R17457

PLATE - reinforcement

1шт.

52

A14513

BOLT

- plate to flywheel, 5/16 x 5/8" N.C. spec.

6шт.

53

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

- plate bolt (11/32 x 11/16 x 1/16")

6шт.

54

A14511

X

BOLT - plates to converter, 3/8 x 1/2" N.F. spec.

6шт.
