Запчасти Case 500 (076) - CONVERTER VALVE CONTROLS (07) - HYDRAULIC SYSTEM

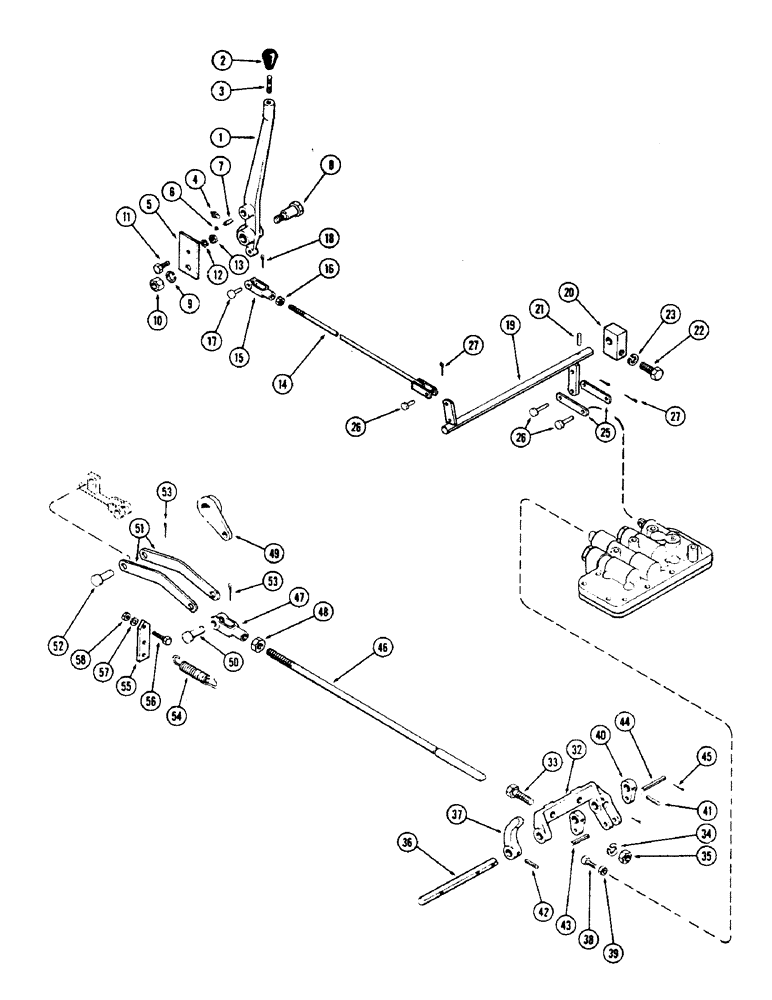

Схема запчастей Case 500 - (076) - CONVERTER VALVE CONTROLS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

A13590

LEVER - direction selector valve control

1шт.

2

A14051

GRIP

KNOB - direction selector lever

1шт.

3

A16775

STUD

- knob to lever 3/8" N.C. x 1-1/2"

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

5

A13542

PLATE - control lever

1шт.

6

211-11

BALL,3/8" Dia

- detent (.) 3/8" Dia

1шт.

7

A13544

SPRING - detent ball

1шт.

8

A13541

PIN - pivot, hand lever

1шт.

9

92-8

LOCK WASHER,1/2"

1шт.

10

251-158

NUT - lever pivot, 1/2" N.F. half hex.

1шт.

11

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- plate, 1/4 x 3/4" N.F. hex.

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

14

A13545

ROD - link, control lever

1шт.

15

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

END - control link rod

1шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. half hex.

1шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

18

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

19

A13547

SHAFT - cross, control lever

1шт.

20

A13550

BEARING - block, cross shaft

1шт.

21

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Bearing stop 3/16" x 1", Slotted

1шт.

22

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- brg., 1/2 x 1-1/2" N.F. hex.

1шт.

23

92-8

LOCK WASHER,1/2"

1шт.

25

A13551

LINK - direction selector spool

2шт.

26

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

3шт.

27

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

32

A13614

BRACKET - clutch control shaft

1шт.

33

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- bracket, 1/2 x 1-1/2" N.F. hex.

2шт.

34

92-8

LOCK WASHER,1/2"

2шт.

35

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

2шт.

36

A13616

SHAFT - clutch control

1шт.

37

A13617

FINGER - clutch control valve

1шт.

38

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Finger contact Hex, 5/16"-24 x 1 1/4", G5

1шт.

39

25-115

NUT,5/16"-24, G5

- lock, finger bolt, 5/16" NF half hex

1шт.

40

A13618

LEVER - clutch control finger

2шт.

41

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, , Lever to shaft 3/16" x 1 1/8", Slotted

2шт.

42

135-342

GROOVED PIN,3/16" x 1 1/4", Type F

PIN, GROOVED, , Finger & lever 3/16" x 1 1/4", Type F

1шт.

43

A13615

PIN - lever control, 3/8 x 1-3/4"

1шт.

44

13619

PIN - control rod guide, 3/8 x 2-9/16"

1шт.

45

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

46

A13611

ROD - clutch control valve

1шт.

47

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

END - clutch control rod

1шт.

48

25-117

NUT,7/16"-20, G5

- lock, rod end, 7/16" N.F. half hex.

1шт.

49

A13638

LEVER - clutch control, intermediate

1шт.

50

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2 x 1-23/64"

1шт.

51

A13610

LINK - clutch control (To brake link rod)

2шт.

52

A12470

PIN

- clevis, control link, 1/2 x 1"

1шт.

53

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

54

A27473

SPRING

- control rod return

1шт.

55

A14903

CLIP - return spring anchor

1шт.

56

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- clip, 3/8 x 1-3/4" N.F. hex.

1шт.

57

92-6

LOCK WASHER,3/8"

1шт.

58

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

Выбрано товаров: 53
