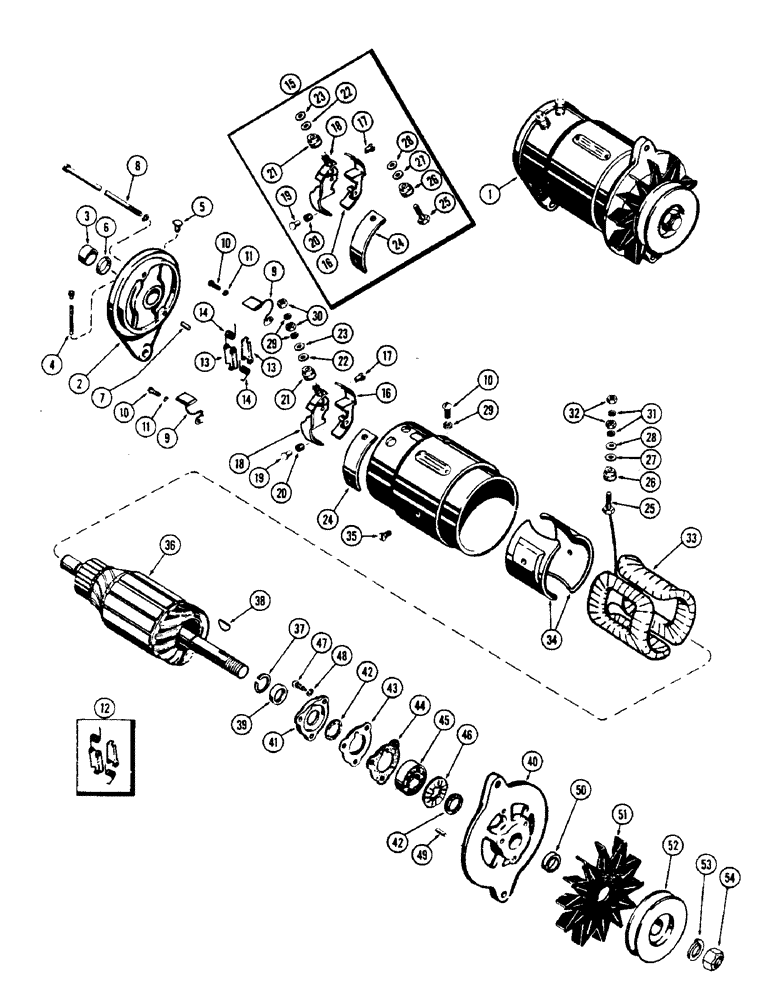

Запчасти Case 500 (068) - A36195 GENERATOR, (188) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

1

A41452

GENERATOR ASSY. - eng., repairs (GJT-7403SN)

1шт.

1

A36195

GENERATOR ASSY. - eng. (Prestolite #GJT-7403A) production (Order A41452)

1шт.

2

A25856

HEAD ASSY. - commutator end

1шт.

3

A25623

BUSHING

- armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

5

NSS

NOT SOLD SEPARAT

OILER - commutator end

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

DOWEL - locating, comm. end

1шт.

8

A40580

BOLT - thru, generator (Set of 2)

1шт.

9

A25873

BRUSH ASSY.

BRUSH KIT - armature (Set of 2)

1шт.

10

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- mach., #8 - 32 x 1/4" rd. hd.

3шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

12

A40276

SPRING

ARM KIT - brush

1шт.

13

NSS

NOT SOLD SEPARAT

ARM - brush holder

2шт.

14

NSS

NOT SOLD SEPARAT

SPRING - brush arm

2шт.

15

A40279

STUD

HOLDER KIT - terminal

1шт.

16

NSS

NOT SOLD SEPARAT

HOLDER - ground, brush

1шт.

17

NSS

NOT SOLD SEPARAT

RIVET - ground holder

2шт.

18

NSS

NOT SOLD SEPARAT

HOLDER - insulated, brush

1шт.

19

NSS

NOT SOLD SEPARAT

RIVET - insulated holder

1шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - rivet, holder

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING - insulation, brush term.

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - insulation, brush term.

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - plain, brush term.

1шт.

24

NSS

NOT SOLD SEPARAT

INSULATION - brush holder

1шт.

25

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field term.

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulation, field term.

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, field term. (Metal)

1шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

30

129-121

NUT,1/4"-28, G5

2шт.

31

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

32

129-37

NUT,#10-32

2шт.

33

A40273

COIL ASSY. - field (Incl. ref. 25)

1шт.

34

NSS

NOT SOLD SEPARAT

SHOE - pole

2шт.

35

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

2шт.

36

A25886

ARMATURE

ASSY. - generator

1шт.

37

NSS

NOT SOLD SEPARAT

RING - snap, spacer stop

1шт.

38

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Armature shaft #5, 1/8" x 5/8"

1шт.

39

NSS

NOT SOLD SEPARAT

SPACER - retainer

1шт.

40

A25616

HEAD ASSY. - drive end

1шт.

41

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER - felt, drive end

2шт.

43

NSS

NOT SOLD SEPARAT

PLATE - retainer, bearing

1шт.

44

NSS

NOT SOLD SEPARAT

GASKET - plate

1шт.

45

A25618

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

46

NSS

NOT SOLD SEPARAT

RETAINER - outer, bearing

1шт.

47

173-227

SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST

- mach., #10 - 32 x 1/2" rd. hd.

3шт.

48

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

49

NSS

NOT SOLD SEPARAT

PIN - locating, drive end

1шт.

50

NSS

NOT SOLD SEPARAT

SPACER - fan & pulley

1шт.

51

14503

FAN - ventilating

1шт.

52

G4521

PULLEY

- drive, generator

1шт.

53

92-11

WASHER - lock, pulley nut

1шт.

54

A25619

NUT - retainer, pulley

1шт.
