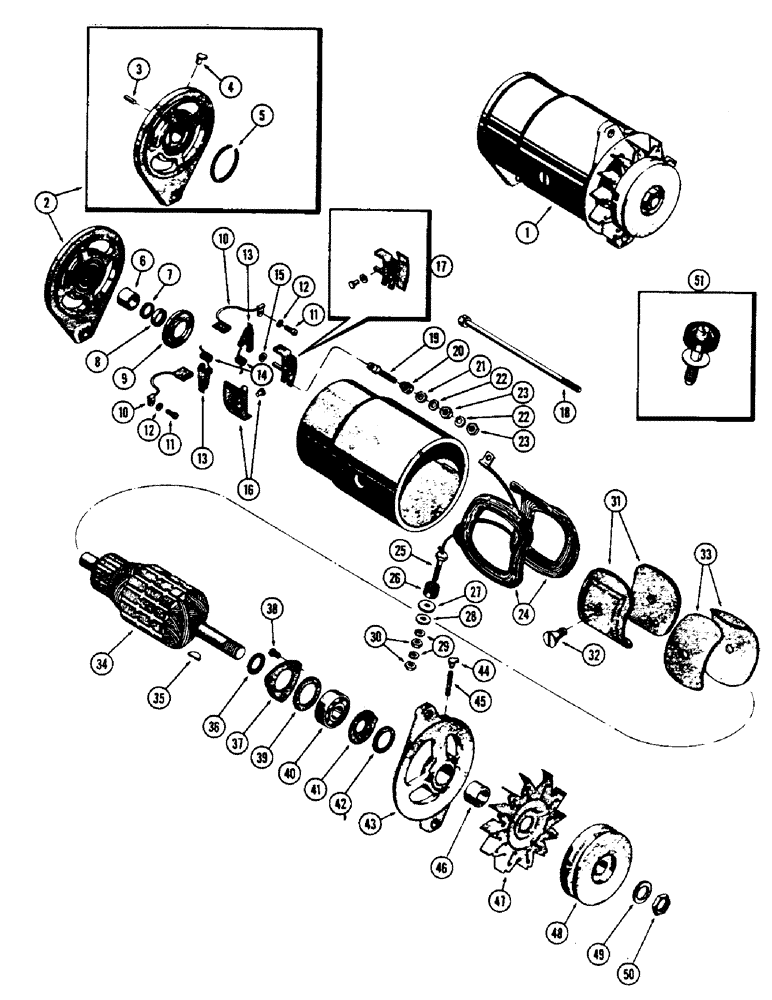

Запчасти Case 500 (066) - A36563 GENERATOR, (188) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

A36563

GENERATOR

ASSY. - eng. (Delco-Remy #1100443)

1шт.

2

A25411

HOUSING

ASSY. - commutator end

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - locating, comm. end

1шт.

4

NSS

NOT SOLD SEPARAT

OILER - comm. end

1шт.

5

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

6

A25459

BUSHING

- armature shaft

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - comm. end (Felt)

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - retainer, felt washer

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - oil wick

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH - armature

2шт.

11

NSS

NOT SOLD SEPARAT

SCREW - brush lead

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER - lock, lead screw

2шт.

13

R15090

ARM

- pressure, brush

2шт.

14

R16161

VALVE SPRING

SPRING - brush arm

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - spacer, brush arm

2шт.

16

A40703

NOZZLE HOLDER

HOLDER KIT - brush ground

1шт.

17

A40704

NOZZLE HOLDER

HOLDER KIT - insulated brush

1шт.

18

A40129

BOLT

BOLT - thru, generator

2шт.

19

A40701

STUD

- terminal, brush

1шт.

20

R16147

BUSHING

- insulating, terminal

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal (Metal)

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal

2шт.

23

NSS

NOT SOLD SEPARAT

NUT - terminal stud

2шт.

24

R16149

COIL ASSY.

- field

1шт.

25

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 51)

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulating, field stud (Order ref. 51)

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, field stud (Order ref. 51)

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, field stud (Metal)

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - lock, field stud

2шт.

30

NSS

NOT SOLD SEPARAT

NUT - field stud

2шт.

31

A40700

SHOE - pole

2шт.

32

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

2шт.

33

R16152

INSULATOR

- field coil

2шт.

34

A40130

ARMATURE

- generator

1шт.

35

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Armature shaft #5, 1/8" x 5/8", HT

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - retainer

1шт.

37

R15101

PLATE

RETAINER - bearing

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW - mtg., retainer

3шт.

39

R16170

GASKET

- brg. retainer

1шт.

40

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

41

R16169

LARGE PLATE

RETAINER - felt washer

1шт.

42

R16168

WASHER

- felt, drive end

1шт.

43

A25442

HOUSING

ASSY. - drive end

1шт.

44

NSS

NOT SOLD SEPARAT

OILER - drive end

1шт.

45

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

46

R16166

BUSHING

SPACER - fan & pulley

1шт.

47

A25449

FAN

- ventilating

1шт.

48

A25454

PULLEY

- generator drive

1шт.

49

R16171

SPRING WASHER

- lock, pulley nut

1шт.

50

A25546

NUT

- retaining, pulley

1шт.

51

A40702

STUD

KIT - field terminal stud (Incl. items 25, 26 & 27)

1шт.
