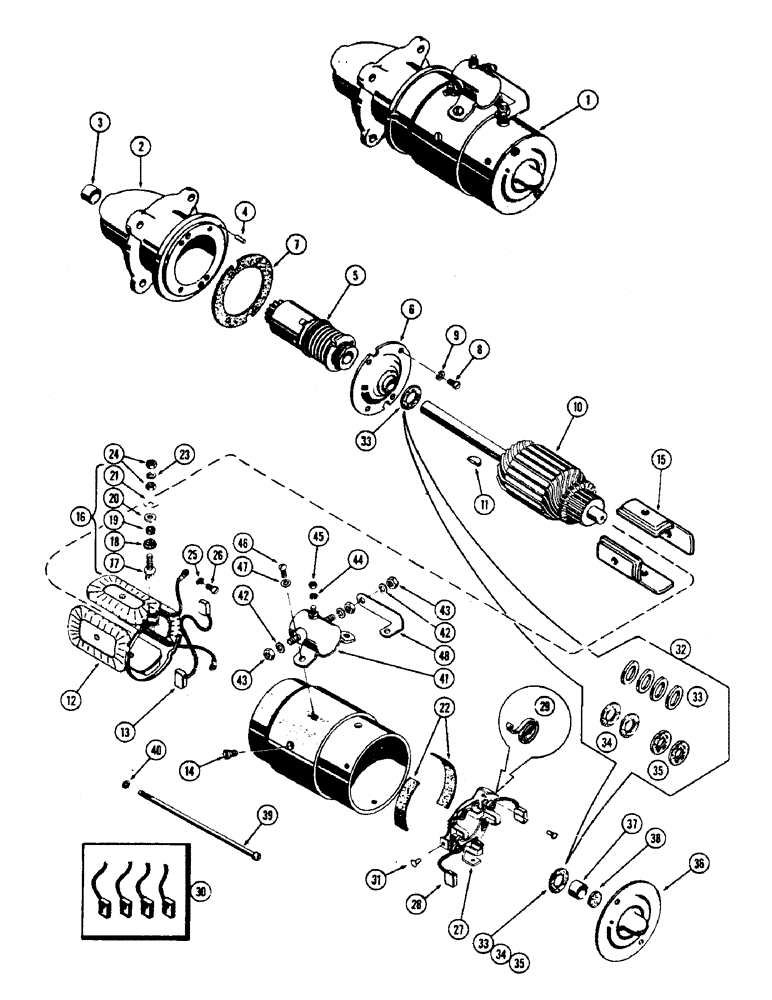

Запчасти Case 500 (064) - A36581 STARTER, (188) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

1

A36581

MOTOR ASSY. - starter (Prestolite #MDU-7102A)

1шт.

2

A25779

HOUSING ASSY. - drive, starter

1шт.

3

A25611

BEARING

- armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - locating, housing

1шт.

5

A40272

DRIVE

ASSY. - starter motor

1шт.

6

G45478

PLATE

BEARING ASSY. - intermediate

1шт.

7

G46910

GASKET

GAKSET - intermediate bearing

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- mach., #10 - 32 x 7/16" rd. hd.

4шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

10

A25607

ARMATURE

- starter

1шт.

11

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Armature shaft #6, 5/32" x 5/8"

1шт.

12

A25604

PACKAGE

COIL ASSY. - field

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH - coil (Order ref. 30)

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

16

A40278

KIT

TERMINAL KIT - field coil

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - insulating, inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - insulating

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - insulating, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - term. stud (Metal)

1шт.

22

NSS

NOT SOLD SEPARAT

INSULATION - field coil

2шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- mach., #8 - 32 x 5/16" rd. hd.

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

27

A25612

PLATE

ASSY. - brush carrier

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH - comm. spring brush (Order ref. 30)

2шт.

29

A40275

SPRING

KIT - brush (Set of 4)

1шт.

30

A25603

BRUSH SET

BRUSH KIT - starter (Set of 4)

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET - brush plate

3шт.

32

A40277

KIT

WASHER KIT - thrust (UAR)

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - interm. brg. & conn. end (1/32" thick)

4шт.

34

NSS

NOT SOLD SEPARAT

WASHER - comm. end (3/64" thick)

2шт.

35

NSS

NOT SOLD SEPARAT

WASHER - comm. end (5/64" thick)

2шт.

36

A40274

HEAD

ASSY. - commutator end

1шт.

37

NSS

NOT SOLD SEPARAT

BUSHING - armature shaft

1шт.

38

NSS

NOT SOLD SEPARAT

OILER - felt

1шт.

39

NSS

NOT SOLD SEPARAT

BOLT - thru, starter

2шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

41

A40795

SOLENOID

ASSY. - starter

1шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

43

129-122

NUT,5/16"-24, G5

3шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

45

129-37

NUT,#10-32

1шт.

46

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- mach., #10 - 32 x 1/4" rd. hd.

2шт.

47

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

48

G46297

CONNECTOR, ELEC

CONNECTOR -, Serial Range: solenoid-field

1шт.
