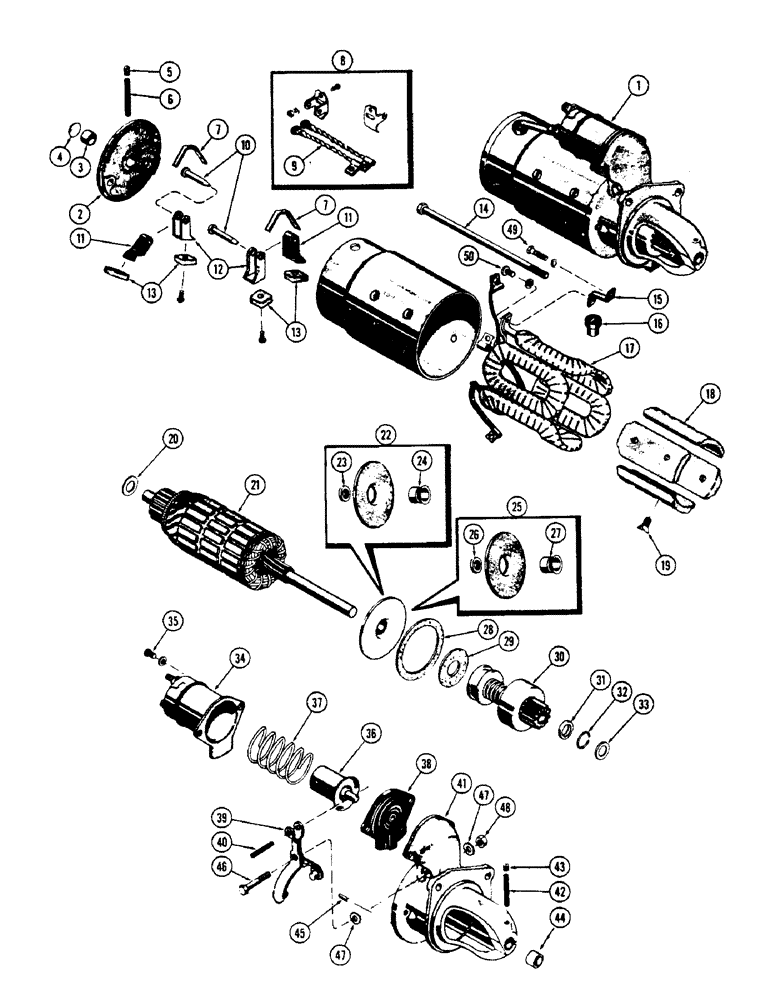

Запчасти Case 500 (062) - A336582 AND A36583 STARTER, (188) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 9802298 (06) - ELECTRICAL SYSTEMS

1

A36583

STARTER MOTOR

STARTER ASSY. - eng. (Delco-Remy #1107583)

1шт.

1

A36582

SPARE PART STARTER ASSY. - eng. (Delco #1107584) (Order A36583) (NS)

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

FRAME ASSY. - commutator end

1шт.

3

R15020

BUSHING

BUSHING - armature shaft

1шт.

4

R15021

PLUG

PLUG - expansion

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG - oil wick hole

1шт.

6

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

7

A25359

SPRING

SPRING - brush pressure

2шт.

8

A25379

KIT

SUPPORT KIT - brush holder

1шт.

9

A15363

SPARE PART LEAD - ground, brush

2шт.

10

NSS

NOT SOLD SEPARAT

PIN - holder, brush

2шт.

11

R15027

HOLDER

HOLDER - insulating, brush

2шт.

12

A40217

HOLDER

HOLDER - ground, brush

2шт.

NSS

NOT SOLD SEPARAT

SCREW - brush attaching

2шт.

13

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

14

A25552

BOLT

BOLT - thru

2шт.

15

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.

16

NSS

NOT SOLD SEPARAT

GROMMET - connector

1шт.

17

A25319

COIL

COIL ASSY. - field

1шт.

18

A25391

SHOE

SHOE - pole

4шт.

19

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

58шт.

20

NSS

NOT SOLD SEPARAT

WASHER - brake, comm. end

1шт.

21

A40219

ARMATURE

ARMATURE - starter motor

1шт.

22

A40223

PLATE

PLATE ASSY. - ctr. brg. (Use w/A36583 starter)

1шт.

23

A40228

OIL SEAL

SEAL - oil, 3/4 x 1-1/4 x 1/4"

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - center plate

1шт.

25

A40215

PLATE ASSY.

PLATE ASSY. - ctr. brg. (Use w/A36582 starter)

1шт.

26

A25409

SEAL

SEAL - oil, 3/4 x 1 x 1/8"

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - center plate

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - center bearing

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - thrust, center bearing

1шт.

30

A41871

DRIVE

DRIVE ASSY. - starter (Use w/A36583 starter)

1шт.

30

B53941

X

DRIVE ASSY. - starter (Use w/A36582 starter)

1шт.

31

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

32

R15048

RING

RING - snap, collar retaining

1шт.

33

A25385

WASHER

WASHER - thrust, starter drive

1шт.

34

G44891

SOLENOID

SOLENOID ASSY. - starter

1шт.

35

NSS

NOT SOLD SEPARAT

SCREW - mtg., Serial Range: solenoid-hsg.

2шт.

36

A40218

PLUNGER

PLUNGER - solenoid

1шт.

37

A40221

SPRING

SPRING - return, plunger

1шт.

38

A40222

BOOT

COVER - solenoid & drive housing

1шт.

39

A40220

LEVER

LEVER - shift (Use w/A36583 starter)

1шт.

39

A25397

LEVER

LEVER - shift (Use w/A36582 starter)

1шт.

40

A25399

X

PIN - shift, Serial Range: lever-plunger

1шт.

41

A40224

FRAME

HOUSING ASSY. - drive end (Use w/A36583 starter)

1шт.

41

A40226

FRAME

HOUSING ASSY. - drive end (Use w/A36582 starter)

1шт.

42

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

43

NSS

NOT SOLD SEPARAT

PLUG - oil wick hole

1шт.

44

4A0227

BUSHING (Used w/40224 hsg.), 1/2 x 9/16 x 25/32"

1шт.

44

A25387

BEARING

BUSHING (Use w/A40226 hsg.), 15/32 x 41/64 x 13/16"

1шт.

45

NSS

NOT SOLD SEPARAT

PIN - locating, drive end

1шт.

46

A25401

SPARE PART STUD - pivot, shift lever

1шт.

47

NSS

NOT SOLD SEPARAT

WASHER - Shakeproof, ext. pivot stud

2шт.

48

NSS

NOT SOLD SEPARAT

NUT - pivot stud

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - connector solenoid

1шт.

50

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: connector-coil

1шт.
