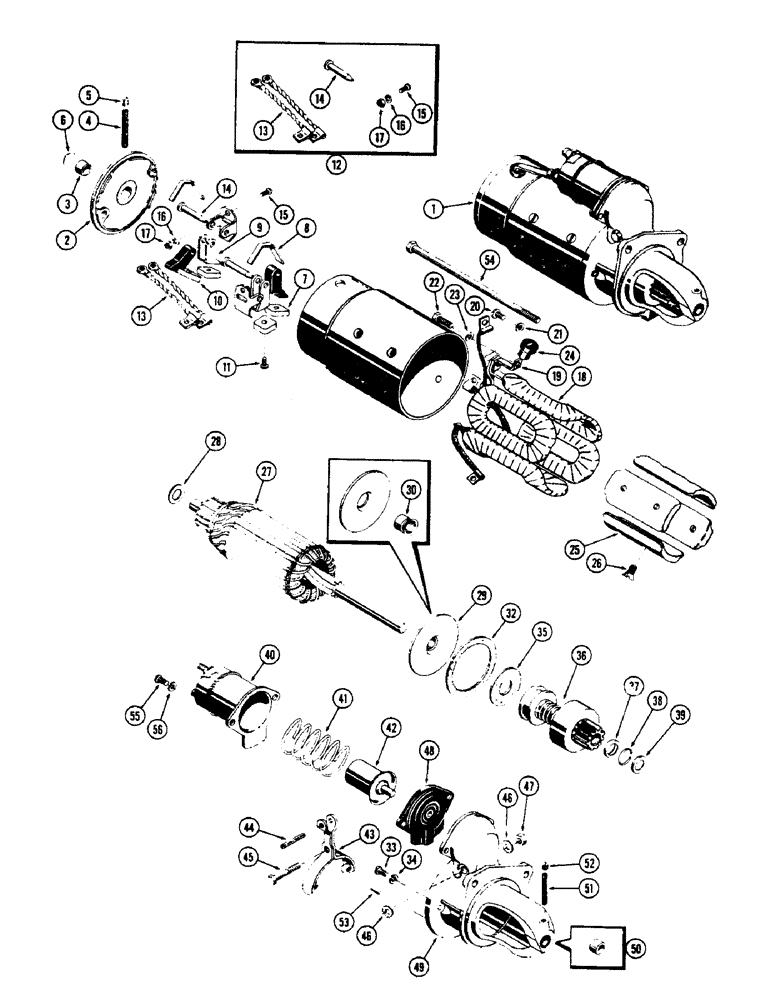

Запчасти Case 500 (061C) - D39988 STARTER, (188) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 9802298 (06) - ELECTRICAL SYSTEMS

1

D39988

X

STARTER ASSY. (Delco #1107598)

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

FRAME ASSY. - commutator end

1шт.

3

R15020

BUSHING

BUSHING - armature

1шт.

4

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG - pipe, oil wick hole

1шт.

6

R15021

PLUG

PLUG - expansion, frame end

1шт.

7

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

8

A25359

SPRING

SPRING - brush tension

2шт.

9

A40217

HOLDER

HOLDER - brush, grounded

2шт.

10

R15027

HOLDER

HOLDER - brush, insulated

2шт.

11

NSS

NOT SOLD SEPARAT

SCREW - brush attaching

4шт.

12

A25379

KIT

SUPPORT KIT - brush holder

2шт.

13

A25363

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - brush holder

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - support

2шт.

16

NSS

NOT SOLD SEPARAT

WASHER - lock, support screw

2шт.

17

NSS

NOT SOLD SEPARAT

NUT - support screw

2шт.

18

A25548

COIL

COIL - field

1шт.

19

NSS

NOT SOLD SEPARAT

CONNECTOR -, Serial Range: field-solenoid

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: connector-field

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - lock, field connector screw

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: connector-solenoid

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - lock, solenoid connector screw

1шт.

24

NSS

NOT SOLD SEPARAT

GROMMET - connector insulating

1шт.

25

A25391

SHOE

SHOE - pole

4шт.

26

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

8шт.

27

A25547

ARMATURE

ARMATURE

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - thrust, armature (comm. end)

1шт.

29

A40215

PLATE ASSY.

BEARING ASSY. - intermediate

1шт.

30

NSS

NOT SOLD SEPARAT

BUSHING - inter. brg.

1шт.

32

NSS

NOT SOLD SEPARAT

GASKET - inter. brg.

1шт.

33

NSS

NOT SOLD SEPARAT

SCREW - inter. brg. to drive end

2шт.

34

NSS

NOT SOLD SEPARAT

WASHER - lock, inter. brg. screw

2шт.

35

NSS

NOT SOLD SEPARAT

WASHER - brake

1шт.

36

A25337

X

DRIVE ASSY. - Bendix

1шт.

37

R15049

COLLAR

COLLAR - drive pinion stop

1шт.

38

R15048

RING

RING - snap, stop retainer

1шт.

39

A40216

WASHER

WASHER - spacer, drive

1шт.

40

G44891

SOLENOID

SOLENOID ASSY. - switch

1шт.

41

A40221

SPRING

SPRING - drift, plunger return

1шт.

42

A40218

PLUNGER

PLUNGER - solenoid

1шт.

43

A40220

LEVER

LEVER - shift

1шт.

44

A25399

X

PIN - shift, Serial Range: lever-plunger

1шт.

45

A40520

BOLT

BOLT - shift lever pivot

1шт.

46

NSS

NOT SOLD SEPARAT

WASHER - shift lever screw

2шт.

47

NSS

NOT SOLD SEPARAT

NUT - shift lever screw

1шт.

48

A25410

BOOT

BOOT - solenoid seal

1шт.

49

A40226

FRAME

HOUSING ASSY. - drive end

1шт.

50

A25387

BEARING

BUSHING - drive end

1шт.

51

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

52

NSS

NOT SOLD SEPARAT

PLUG - pipe, oil wick hole

1шт.

53

NSS

NOT SOLD SEPARAT

PIN - dowel, drive end locating

1шт.

54

A25552

BOLT

BOLT - thru

2шт.

55

NSS

NOT SOLD SEPARAT

SCREW - solenoid attaching

2шт.

56

NSS

NOT SOLD SEPARAT

WASHER - lock, solenoid attach. screw

2шт.
