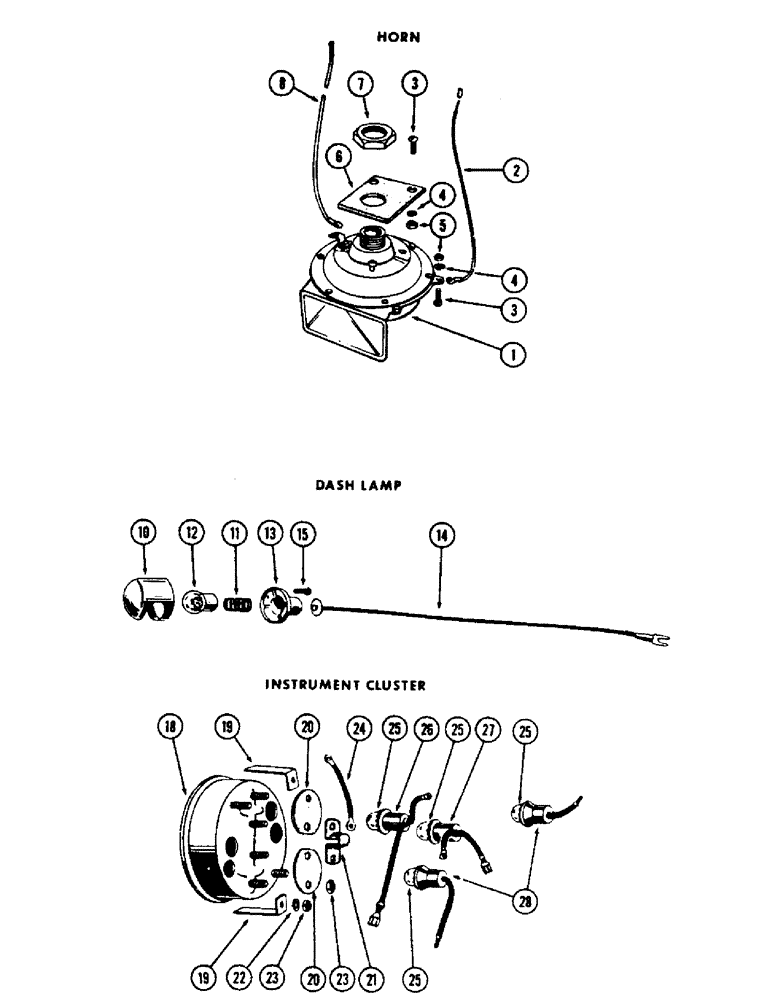

Запчасти Case 500 (061A) - A19581 HORN (06) - ELECTRICAL SYSTEMS

1

A19581

HORN

ASSY. - warning sound

1шт.

2

A18924

WIRE -, Serial Range: horn-conn.

1шт.

3

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10 x 1/2" N.C., rd. hd.

3шт.

4

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

5

129-7

NUT,Hex, #10 - 24

- #10 N.C., hex.

3шт.

6

A19913

PLATE - mounting, horn

1шт.

7

A19827

X

NUT - retainer, horn mounting

1шт.

8

A13792

WIRE - horn to column connector

1шт.

A7642

LAMP

ASSY. - dash, A7642

2шт.

10

B50319

COVER - lamp, A7642 dash

1шт.

11

B50262

SPRING - pressure, bulb, A7642 dash lamp

1шт.

12

71421

BULB,R5W, 12V, 5W

- 3 C.P., 12 volt, A7642 dash lamp

1шт.

13

B50320

SOCKET - lamp, A7642 dash

1шт.

14

A40161

WIRE - dash lamp, A7642

1шт.

15

187-1007

SCREW

- mach., #6 - 32 x 5/16" type F, A7642 dash lamp

4шт.

A13739

GAUGE ASSY.

CLUSTER ASSY. - instrument, A13739 instrument

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - cluster (Order A13739), A13739 instrument

1шт.

19

A14552

CLAMP - cluster mtg., A13739 instrument

2шт.

20

A14551

INSULATOR - temp. & fuel gauge, A13739 instrument cluster

2шт.

21

A14550

INSULATOR - temp. gauge to fuel gauge, A13739 instrument cluster

1шт.

22

92-3

LOCK WASHER,#10

WASHER, LOCK, , A13739 instrument cluster #10

6шт.

23

129-7

NUT,Hex, #10 - 24

- #10 - 32 N.F., hex., A13739 instrument cluster

6шт.

24

A14549

WIRE - temp. gauge to fuel gauge, A13739 instrument cluster

1шт.

25

A14553

BULB

- light, cluster (12 volt), A13739 instrument

4шт.

26

A14548

SOCKET ASSY. - gen. warning light, A13739 instrument cluster

1шт.

27

A14547

SOCKET ASSY. - oil pressure light, A13739 instrument cluster

1шт.

28

G45029

SOCKET ASSY. - light, fuel & temp. gauge, A13739 instrument cluster

2шт.
