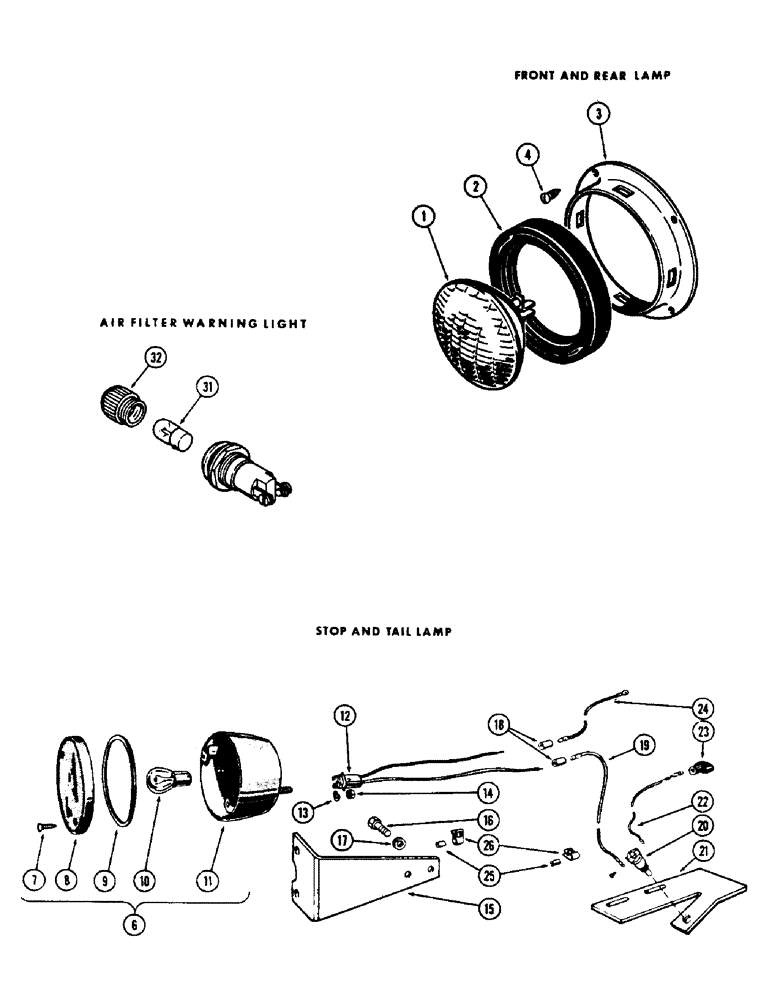

Запчасти Case 500 (060) - A15932 FRONT AND REAR LAMPS (06) - ELECTRICAL SYSTEMS

A15932

X

LAMP ASSY. - front & rear

4шт.

1

A24572

LAMP

UNIT - sealed (12V) (Gasket not used w/this application)

1шт.

2

D31441

RETAINER

RING - mounting (Rubber)

1шт.

3

B50296

RING

- mounting (Metal)

1шт.

4

75-416

SCREW,Rd, 1/4" - 20 x 1"

- mach., 1/4" x 1" rd. hd.

16шт.

A16804M

ATTACHMENT - stop & tail lamp, L10741

1шт.

6

L10741

STOP LIGHT

LAMP ASSY. - stop & tail (Replaces A16732), L10741

2шт.

7

187-1020

SCREW,Cross Hd, #8 x 3/4"

- retaining, lens (#8 self-tapping), L10741 stop and tail lamps

2шт.

8

L30427

X

LENS - lamp (Red) (Replaces B50336), L10741 stop and tail

1шт.

9

A40862

GASKET - lens (Replaces B50327), L10741 stop and tail lamps

1шт.

10

R11078

LAMP

BULB - light, 12 - 16 volt, L10741 stop and tail lamps

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - lamp (Order L10741), L10741 stop and tail

1шт.

12

A16731

PLUG

ASSY. - lamp wire, L10741 stop and tail

1шт.

13

92-6

LOCK WASHER,3/8"

L10741 stop and tail lamps 3/8"

2шт.

14

25-104

NUT,1/4"-20, G5

L10741 Stop and tail lamps 1/4"-20, G5

2шт.

15

A16838

BRACKET - mtg., L10741 stop and tail lamps

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex., L10741 stop and tail lamps

2шт.

17

92-6

LOCK WASHER,3/8"

L10741 stop and tail lamps 3/8"

2шт.

18

A27213

CONNECTOR - two wire, L10741 stop and tail lamps

2шт.

19

A16841

WIRE - lamp conn. to stop switch, L10741 stop and tail

1шт.

20

A16839

SWITCH ASSY. - braking stop light, L10741 stop and tail lamps

1шт.

21

A16837

SUPPORT - stop light switch, L10741 stop and tail lamps

1шт.

22

A16840

WIRE - stop swt. to hsg. swt. conn., L10741 stop and tail lamps

1шт.

23

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire, L10741 stop and tail lamps

1шт.

24

A12477

WIRE - tail lamp conn. to light switch, L10741 stop and tail

1шт.

25

A12458

SLEEVE

LOOM - lamp wire, L10741 stop and tail

2шт.

26

A7922

CLIP

- wire retaining, L10741 stop and tail lamps

2шт.

A14736

LIGHT - warning, air filter, A14736

1шт.

31

A15126

BULB

- light (12 volt), A14736 warning

1шт.

32

A15127

LENS

CAP - light (Red), A14736 warning

1шт.
