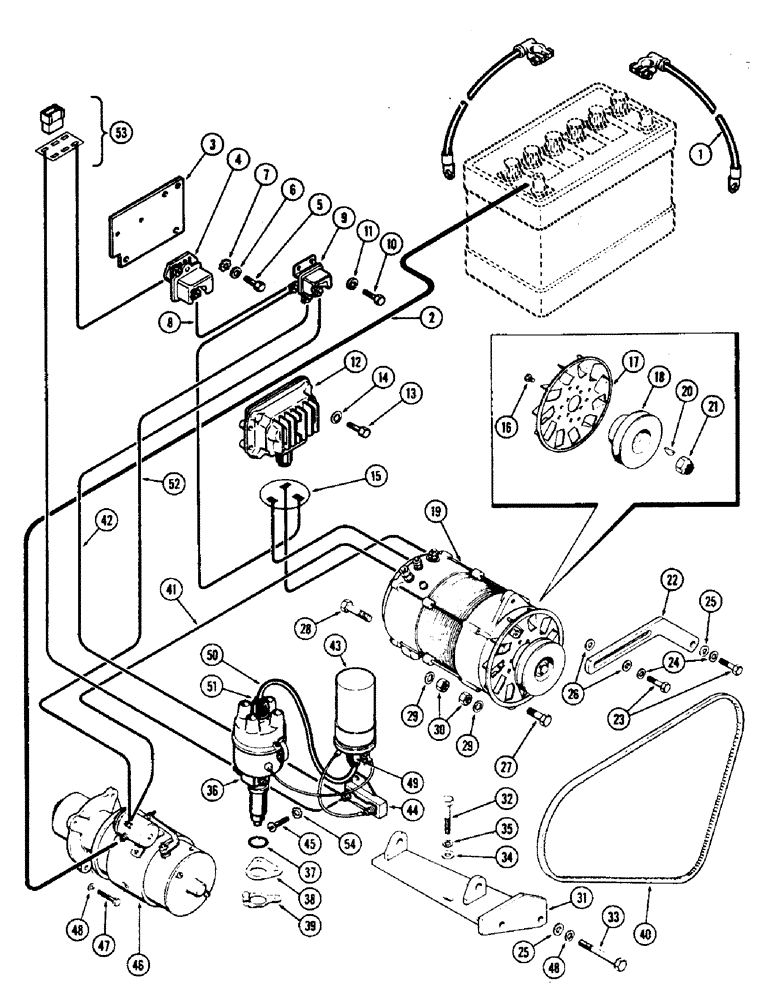

Запчасти Case 500 (058) - ELECTRICAL EQUIPMENT AND WIRING, (188) SPARK IGNITION ENGINE, WITH ALTERNATOR SYSTEM (06) - ELECTRICAL SYSTEMS

A18464

ATTACHMENT - alternator (Mach. item)

1шт.

1

A13798

CABLE -, Serial Range: battery-ground

1шт.

2

A18452

CABLE - battery to starter sol.

1шт.

3

L10229

PLATE - mtg., relay

1шт.

4

L10203

RELAY - indicator light

1шт.

5

113-1001

SCREW,Hex, #10 - 24 x 1"

BOLT - #10 - 24 x 1" hex.

2шт.

6

195-512

WASHER,#10

- 7/32 x 7/16 x 21/32"

2шт.

7

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WIRE - lamp relay "Bat." term. to field relay #1 terminal

1шт.

9

L11508

RELAY

- field (Replaces A18439)

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

L10202

VALVE

REGULATOR - voltage

1шт.

13

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

14

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int.

3шт.

15

L10204

PLUG ASSY. - wiring

1шт.

16

182-165

SCREW - sems, #12 - 24 x 5/8" pan hd.

4шт.

17

A18424

FAN - baffle, alternator

1шт.

18

A18447

PULLEY - drive, alternator

1шт.

19

A18436

ALTERNATOR ASSY. - gen. (Repairs, figure 70)

1шт.

20

126-115

WOODRUFF KEY,#8, 5/32" x 3/4", HT

Drive pulley #8, 5/32" x 3/4", HT

1шт.

21

A25995

NUT

- retainer, pulley

1шт.

22

A18451

STRAP - adjusting, alternator

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

195-25

WASHER,3/8"

- 13/32 x 13/16 x 5/64"

3шт.

26

95-6

WASHER,3/8"

- 1 x 7/16" x 14 ga.

2шт.

27

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- 7/16 x 1-1/4" N.F., hex.

1шт.

28

14-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- 7/16 x 1-3/4" N.F., hex.

1шт.

29

92-7

LOCK WASHER,7/16"

2шт.

30

25-117

NUT,7/16"-20, G5

- 7/16" N.F., hex.

2шт.

31

A18448

BRACKET - mtg., alternator

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

33

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C., hex.

2шт.

34

195-21

WASHER,5/16"

- 11/32 x 11/16 x 5/64"

25шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

A18461

DISTRIBUTOR

ASSY. - ign. (Repairs, figure 74)

1шт.

37

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - mtg., distributor

1шт.

38

A27033

PLATE - mtg., distributor

1шт.

39

A29989

ARM

CLAMP ASSY. - adj., distributor

1шт.

40

A20383

BELT

Drive, Alternator and Fan

1шт.

41

A18454

WIRE - altern. "B" term. to starter

1шт.

42

A18459

WIRE - field relay "#3" term. to circuit breaker

1шт.

43

G44808

X

COIL - ignition

1шт.

44

A22877

BREAKER,40A

- circuit

1шт.

45

174-97

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- mach., #10 - 32 x 1/2" rd. hd.

1шт.

46

A36581

MOTOR ASSY. - starter (Repairs, figure 64)

1шт.

47

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

48

92-6

LOCK WASHER,3/8"

5шт.

49

G46803

BOOT

NIPPLE - coil wire

1шт.

50

G44045

WIRE -, Serial Range: coil-distributor

1шт.

51

A29338

COVER

NIPPLE - distributor coil wire

1шт.

52

A18458

WIRE - field relay "#2" term. to starter solenoid

1шт.

53

A18465

PLUG ASSY. - wiring, L.H.

1шт.

54

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.
