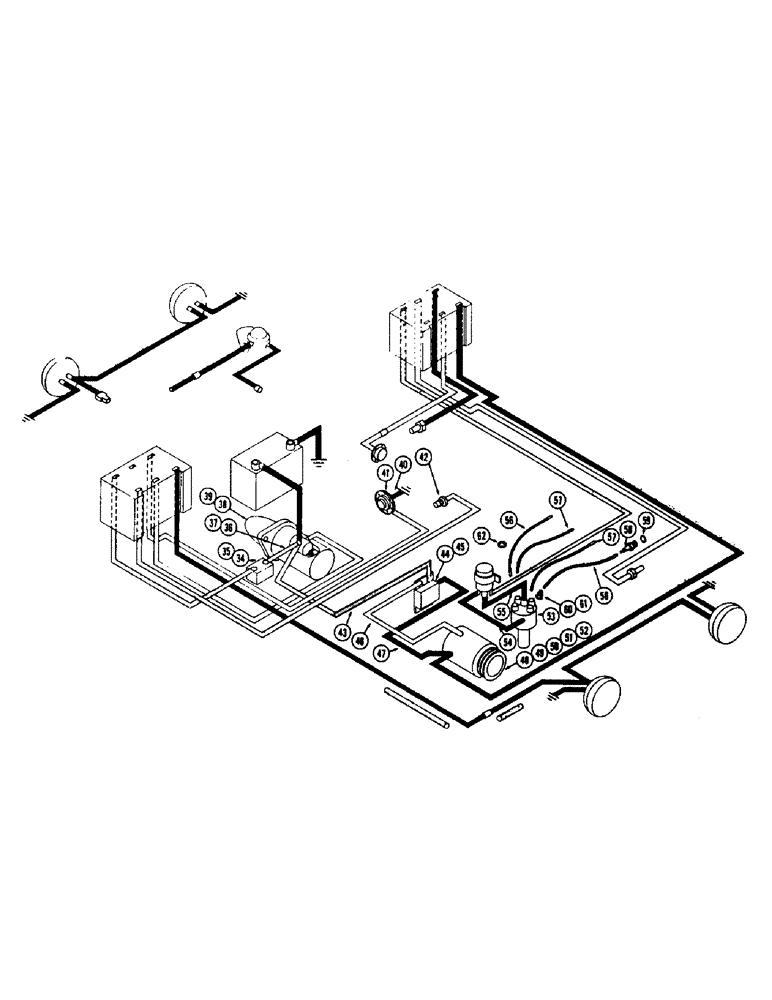

Запчасти Case 500 (057A) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE, WITH GENERATOR SYSTEM (06) - ELECTRICAL SYSTEMS

34

A22877

BREAKER,40A

- circuit

1шт.

35

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - mach, #10 - 24 x 3/4" rd. hd.

2шт.

36

A18463

WIRE - circuit breaker to starter sol.

1шт.

37

A18467

LOOM - breaker wire

1шт.

38

A36581

MOTOR ASSY. - starter (Repairs, figure 64)

1шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

40

A26893

WIRE - air cleaner, Serial Range: warning-ground

1шт.

41

A14739

SWITCH ASSY. - air cleaner warning

1шт.

42

A13794

TRANSMITTER

UNIT - sending, eng. oil pressure

1шт.

43

A15949

WIRE - starter solenoid to reg. "F" term

1шт.

44

A36194

REGULATOR

ASSY. - voltage (12V - 20 amp)

1шт.

45

11-424

BOLT (MACHINE)

BOLT - 1/4 x 1-1/2"{ N.C., sq. neck, rd. hd.

3шт.

46

A13906

WIRE - reg. "B" term. to gen. "F" term

1шт.

47

A13905

WIRE - reg. "A" term. to gen. "A" term

1шт.

48

A36195

GENERATOR - engine (Repairs, figure 68)

1шт.

49

G11344

STRAP - generator adjusting

1шт.

50

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

51

G2131

X

BRACKET - mtg., generator

1шт.

52

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

53

A30358

DISTRIBUTOR

ASSY. - engine (Repairs, figure 72)

1шт.

54

G13085

ELECTRICAL WIRE

WIRE -, Serial Range: coil-distributor

1шт.

55

G44045

WIRE - coil to distributor cap

1шт.

56

G44044

ELECTRICAL WIRE

WIRE - plug (#1 x #4 cyl.)

2шт.

57

A29994

CABLE

WIRE - plug (#2 and #3 cyl.)

2шт.

58

G44840

SPARK PLUG

4шт.

59

G46839

GASKET

- spark plug

1шт.

60

A29338

COVER

NIPPLE - plug & coil wire at dist.

5шт.

61

G46803

BOOT

NIPPLE - wire, coil

1шт.

62

A30109

WASHER

RING - tie, spark plug wires

1шт.
