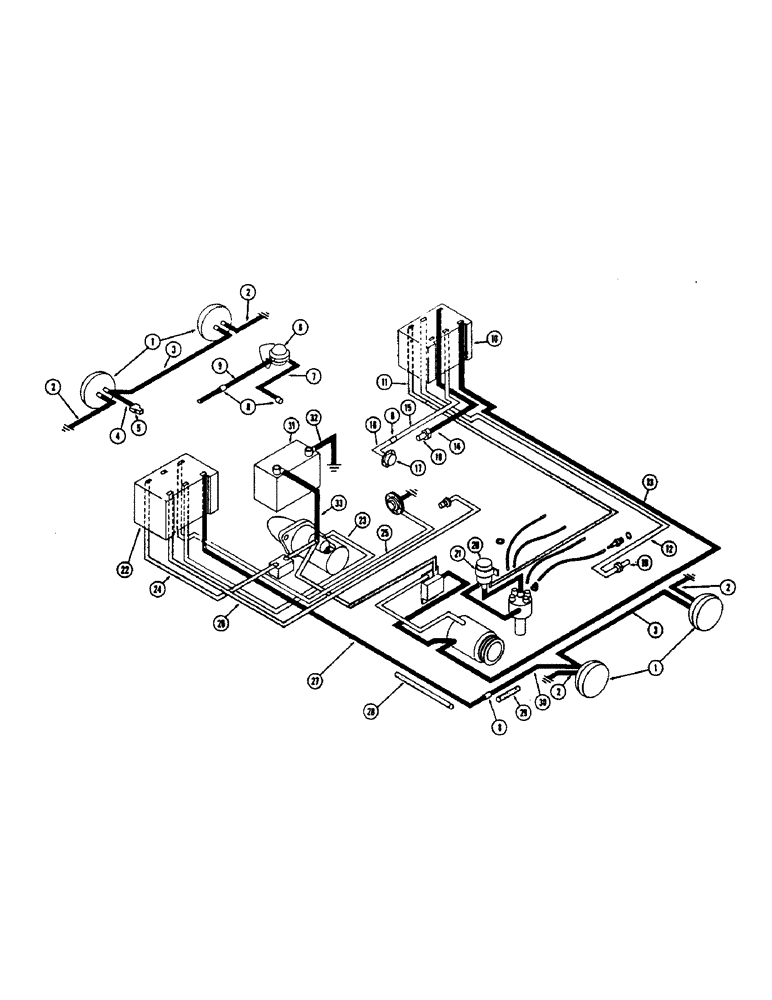

Запчасти Case 500 (056) - ELECTRICAL EQUIPMENT AND WIRING, (188) SPARK IGNITION ENGINE, WITH GENERATOR SYSTEM (06) - ELECTRICAL SYSTEMS

1

A15932

X

LAMP ASSY. - frt. & rear (Repairs, figure 60)

4шт.

2

A15941

ELECTRICAL WIRE

WIRE - ground, frt. & rear lamps

4шт.

3

A15943

WIRE - cross, frt. & rear lamps

1шт.

5

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

1шт.

6

A19581

HORN

ASSY. - wiring sound

1шт.

7

A13791

WIRE - horn to panel connector

1шт.

8

A27213

CONNECTOR - two wire

4шт.

9

A13792

WIRE - horn to button wire conn.

1шт.

10

A15944

PLUG ASSY. - wire, R.H.

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE -, Serial Range: plug-coil

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - plug to eng. temp. sender

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - plug to reg. "A" term

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE - plug to conv. temp. sender

1шт.

15

NSS

NOT SOLD SEPARAT

WIRE - plug to fuel sender connector

1шт.

16

A13793

WIRE - conn. to fuel sender

1шт.

17

A13669

SENDER UNIT

SENDING UNIT - fuel tank

1шт.

18

A13795

SENDER UNIT

SENDING UNIT - converter temperature

1шт.

19

A13796

X

SENDING UNIT - engine temperature

1шт.

20

A33438

COIL

ASSY. - ignition

1шт.

21

G46106

BRACKET

CLAMP - mtg., coil

1шт.

22

A18465

PLUG ASSY. - wire, L.H.

1шт.

23

NSS

NOT SOLD SEPARAT

WIRE - plug to starter solenoid

1шт.

24

NSS

NOT SOLD SEPARAT

WIRE - plug to circuit breaker

1шт.

25

NSS

NOT SOLD SEPARAT

WIRE - plug to air cleaner switch

1шт.

26

NSS

NOT SOLD SEPARAT

WIRE - plug to eng. oil press. sender

1шт.

27

NSS

NOT SOLD SEPARAT

WIRE - plug to rear L.H. lamp

1шт.

28

A27201

LOOM - lamp wire

1шт.

29

A27164

LOOM - lamp wire

1шт.

30

A15948

ELECTRICAL WIRE

WIRE - rear L.H., Serial Range: lamp-connector

1шт.

31

M20204

X

BATTERY - 12 volt

1шт.

32

A19659

CABLE - ground, battery

1шт.

33

A9168

CABLE

- battery to starter solenoid

1шт.
