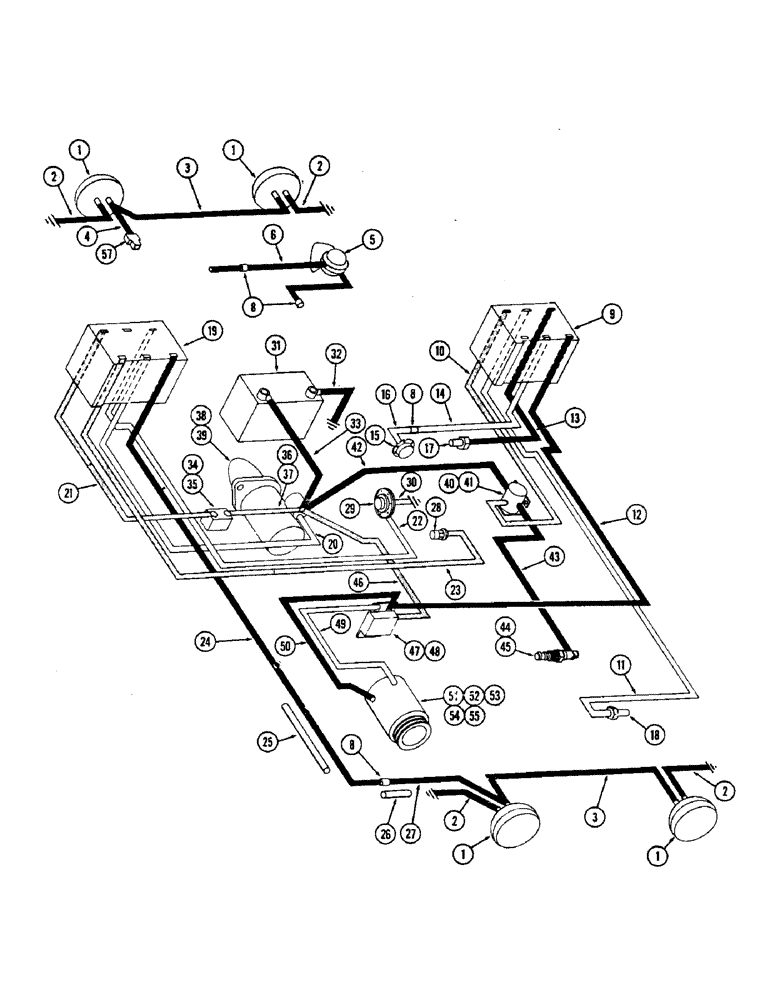

Запчасти Case 500 (054) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 9802298 (06) - ELECTRICAL SYSTEMS

1

A15932

X

LAMP ASSY. - front & rear (Repairs, figure 60)

4шт.

2

A15941

ELECTRICAL WIRE

WIRE - ground, frt. & rear lamp

4шт.

3

A15943

WIRE - cross, frt. and rear lamp

2шт.

4

A15942

WIRE - frt. L.H. lamp to panel connector

1шт.

5

A19581

HORN

ASSY. - warning sound (Repairs, figure 61A)

1шт.

6

A13792

WIRE - horn to horn button

1шт.

A13791

WIRE - horn to panel connector

1шт.

8

A27213

CONNECTOR - wire, two

4шт.

9

A15944

PLUG ASSY. - wire, R.H.

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - plug to manifold heater solenoid

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE - plug to eng. temp. sender

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - plug to volt. reg., "G" term

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - plug to conv. temp. unit

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE - plug to fuel sender conn.

1шт.

15

A13669

SENDER UNIT

SENDING UNIT - fuel tank

1шт.

16

A13793

WIRE - fuel, Serial Range: sender-connector

1шт.

17

A13795

SENDER UNIT

SENDING UNIT - converter temperature

1шт.

18

A13796

X

SENDING UNIT - engine temperature

1шт.

19

A18465

PLUG ASSY. - wire, L.H.

1шт.

20

NSS

NOT SOLD SEPARAT

WIRE - plug to starter solenoid

1шт.

21

NSS

NOT SOLD SEPARAT

WIRE - plug to circuit breaker

1шт.

22

NSS

NOT SOLD SEPARAT

WIRE - plug to air cleaner switch

1шт.

23

NSS

NOT SOLD SEPARAT

WIRE - plug to eng. oil press. unit

1шт.

24

NSS

NOT SOLD SEPARAT

WIRE - plug to rear R.H. light conn.

1шт.

25

A27201

LOOM - rear light wire

1шт.

26

A57164

LOOM - rear lamp to, Serial Range: wire-conn.

1шт.

27

A15948

ELECTRICAL WIRE

WIRE - rear L.H., Serial Range: lamp-connector

1шт.

28

A13794

TRANSMITTER

SENDING UNIT - eng. oil pressure

1шт.

29

A14739

SWITCH ASSY. - air cleaner warning

1шт.

30

A26893

WIRE - warning, Serial Range: switch-ground

1шт.

31

M20204

X

BATTERY - electrical system (12V)

1шт.

Later diesel units used two R12765

1шт.

32

A19659

CABLE - battery ground

1шт.

33

A26712

CABLE - battery to starter solenoid

1шт.

34

A22877

BREAKER,40A

- circuit

1шт.

35

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - mach., #10 - 24 x 3/4" rd. hd.

2шт.

36

A18463

WIRE - circuit breaker to starter solenoid

1шт.

37

A18467

LOOM - breaker to starter wire

1шт.

38

A36583

STARTER MOTOR

MOTOR ASSY. - starter (Repairs, figure 62)

1шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

40

A57069

SOLENOID

- heater switch

1шт.

41

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

42

A36896

CABLE PULLING GRIP

CABLE - solenoid to starter solenoid

1шт.

43

A21483

CABLE

- solenoid to manifold heater

1шт.

44

A24396

X

HEATER - manifold

1шт.

45

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

46

A15949

WIRE - starter sol. to reg. "B" term

1шт.

47

A36564

X

REGULATOR - voltage (12V - 25 amp)

1шт.

48

11-424

BOLT (MACHINE)

BOLT - sq. neck, 1/4 x 1-1/2" N.C. rd. hd.

4шт.

49

A13906

WIRE - reg. "F" term. to gen. "F" term

1шт.

50

A13905

WIRE - reg. "G" term. to gen. "A" term

1шт.

51

A36563

GENERATOR

ASSY. - engine (Repairs,figure 66)

1шт.

52

A37017

STRAP

- adjusting, generator

1шт.

53

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

54

G2131

X

BRACKET - mounting, generator

1шт.

55

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

57

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

1шт.
