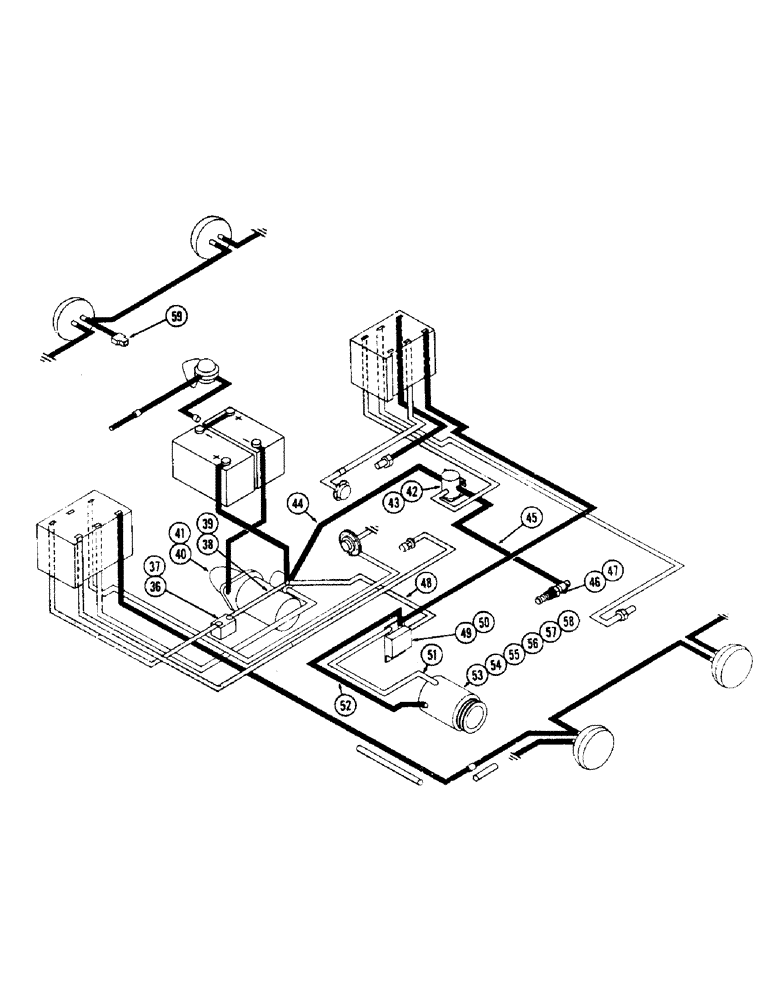

Запчасти Case 500 (053E) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 9802298 (06) - ELECTRICAL SYSTEMS

36

A22877

BREAKER,40A

- circuit

1шт.

37

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - mach., #10 - 24 x 3/4" rd. hd.

2шт.

38

A18463

WIRE - circuit breaker to starter solenoid

1шт.

39

A18467

LOOM - breaker to starter wire

1шт.

40

D39988

X

MOTOR ASSY. - starter (Repairs, figure 61C)

1шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

42

A57069

SOLENOID

- heater switch

1шт.

43

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

44

A36896

CABLE PULLING GRIP

CABLE - solenoid to starter solenoid

1шт.

45

A21483

CABLE

- solenoid to manifold heater

1шт.

46

A24396

X

HEATER - manifold

1шт.

47

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

48

A15949

WIRE - starter sol. to reg. "B" term

1шт.

49

A36564

X

REGULATOR - voltage (12 v-25 amp.)

1шт.

50

11-424

BOLT (MACHINE)

BOLT - 1/4 x 1-1/2" N.C. rd. hd. sq. neck

4шт.

51

A13906

WIRE - reg. "F" term. to gen. "F" term

1шт.

52

A13905

WIRE - ref. "G" term. to gen. "A" term

1шт.

53

A36563

GENERATOR

ASSY. - engine (Repairs, figure 66)

1шт.

54

A37017

STRAP

- adjusting, generator

1шт.

55

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

56

G2131

X

BRACKET - mounting, generator

1шт.

57

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

58

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" N.C., hex.

1шт.

59

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

1шт.
