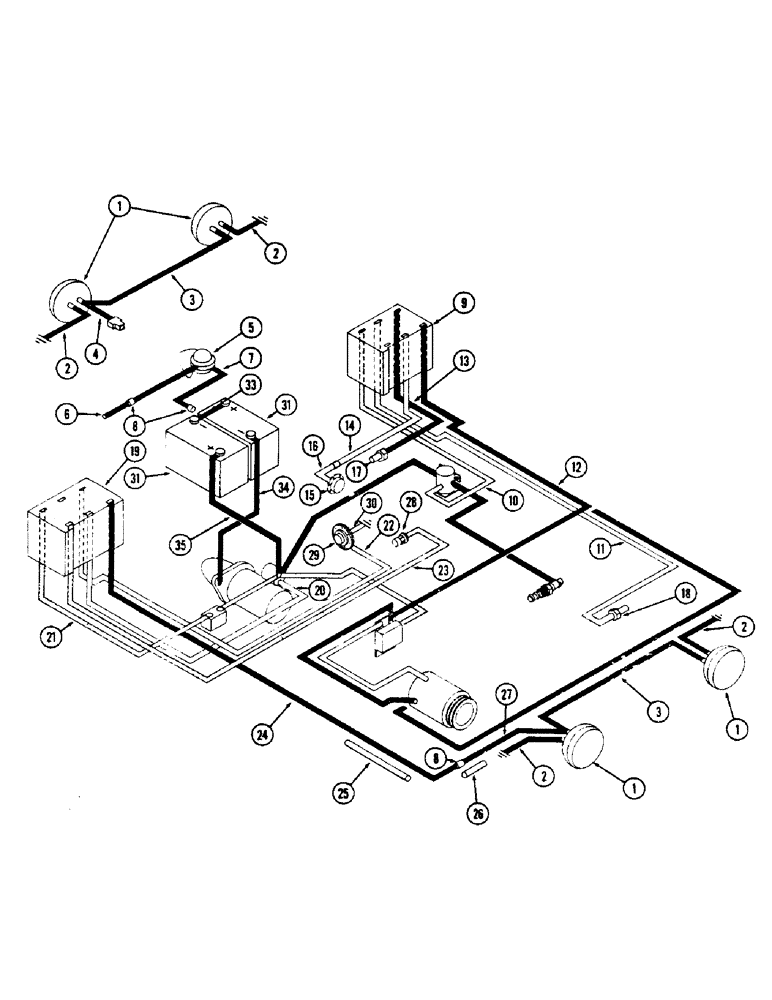

Запчасти Case 500 (053C) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 9802298 (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A15932
X
LAMP ASSY. - front & rear (Repairs, figure 60)
4шт.
2
A15941
ELECTRICAL WIRE
WIRE - ground, frt. & rear lamp
4шт.
3
A15943
WIRE - cross, frt. and rear lamp
2шт.
4
A15942
WIRE - frt. L.H. lamp to paneol connector
1шт.
5
A19581
HORN
ASSY. - warning sound (Repairs, figure 61A)
1шт.
6
A13792
WIRE - horn to horn button
1шт.
7
A13791
WIRE - horn to paneol connector
1шт.
8
A27213
CONNECTOR - wire, two
4шт.
9
A15944
PLUG ASSY. - wire, R.H.
1шт.
10
NSS
NOT SOLD SEPARAT
WIRE - plug to manifold heater solenoid
1шт.
11
NSS
NOT SOLD SEPARAT
WIRE - plug to eng. temp. sender
1шт.
12
NSS
NOT SOLD SEPARAT
WIRE - plug to volt ret., "G" term
1шт.
13
NSS
NOT SOLD SEPARAT
WIRE - plug to conv. temp. unit
1шт.
14
NSS
NOT SOLD SEPARAT
WIRE - plug to fuel sender conn.
1шт.
15
A13669
SENDER UNIT
SENDING UNIT - fuel tank
1шт.
16
A13793
WIRE - fuel, Serial Range: sender-connector
1шт.
17
A13795
SENDER UNIT
SENDING UNIT - converter temperature
1шт.
18
A13796
X
SENDING UNIT - engine temperature
1шт.
19
A18465
PLUG ASSY. - wire, L.H.
1шт.
20
NSS
NOT SOLD SEPARAT
WIRE - plug to starter solenoid
1шт.
21
NSS
NOT SOLD SEPARAT
WIRE - plug to circuit breaker
1шт.
22
NSS
NOT SOLD SEPARAT
WIRE - plug to air cleaner switch
1шт.
23
NSS
NOT SOLD SEPARAT
WIRE - plug to eng. oil press. unit
1шт.
24
NSS
NOT SOLD SEPARAT
WIRE - plug to rear R.H. light conn.
1шт.
25
A27201
LOOM - rear light wire
1шт.
26
A27164
LOOM - rear lamp, Serial Range: wire-conn.
1шт.
27
A15948
ELECTRICAL WIRE
WIRE - rear L.H., Serial Range: lamp-connector
1шт.
28
A13794
TRANSMITTER
SENDING UNIT - eng. oil pressure
1шт.
29
A14739
SWITCH ASSY. - air cleaner warning
1шт.
30
A26893
WIRE - warning, Serial Range: switch-ground
1шт.
31
M20403
X
BATTERY - electrical system (6 v.)
2шт.
L11394
CABLE - battery ground (Fuel tank support to flywheel housing)
1шт.
33
A10143
CABLE -, Serial Range: battery-battery
1шт.
34
L11362
CABLE - battery (Neg.) to starter mtg. bolt
1шт.
35
A26712
CABLE - battery (Pos.) to starter solenoid
1шт.
Выбрано товаров: 35
