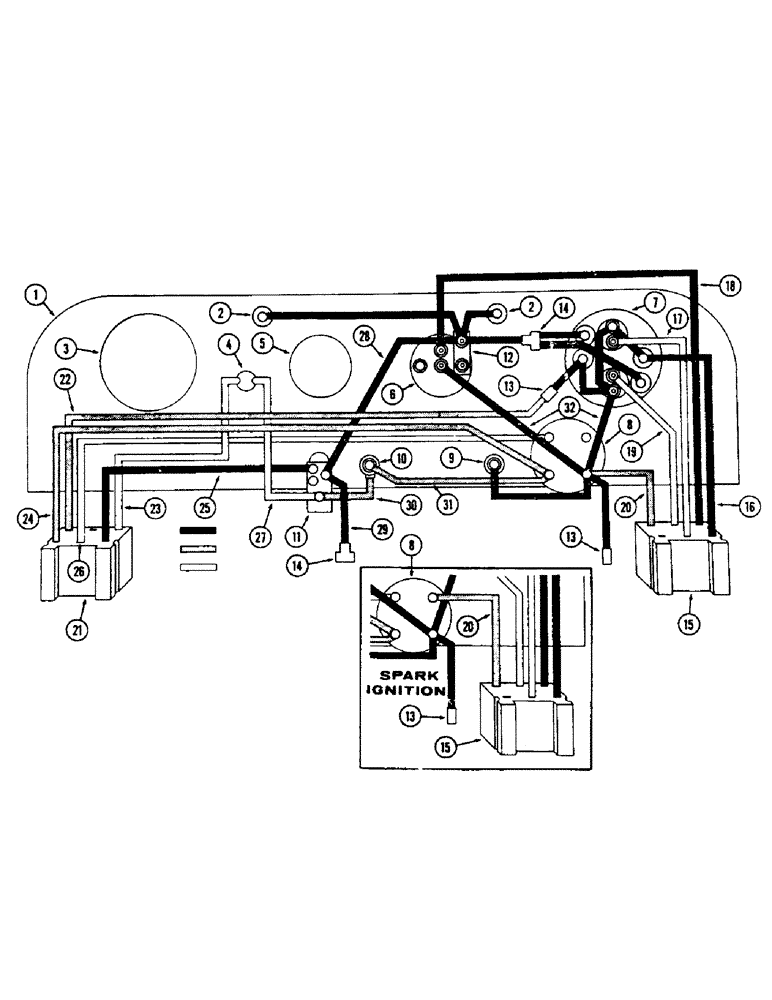

Запчасти Case 500 (053A) - INSTRUMENTS AND WIRING (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
2
A7642
LAMP
ASSY. - dash (Repairs, figure 61A)
2шт.
3
A11190
TACHOMETER
ASSY.
1шт.
4
A14736
LIGHT ASSY. - warning
1шт.
5
A56447
ELECTRICAL GAUGE
GAUGE ASSY. - oil press. converter
1шт.
6
A13756
GAUGE
ASSY. - oil temp., converter
1шт.
7
A13739
GAUGE ASSY.
CLUSTER ASSY. - instrument (Repairs, figure 61A)
1шт.
8
A24510
SWITCH
- starting (Diesel) includes keys
1шт.
9
NSS
NOT SOLD SEPARAT
LIGHTER ASSY. - cigarette
1шт.
10
A8006
NOZZLE HOLDER
HOLDER ASSY. - fuse
1шт.
11
A20201
SWITCH
ASSY. - light
1шт.
12
A9348
BLOCK - terminal
1шт.
13
A27213
CONNECTOR - wire, single line
2шт.
14
A8210
CONNECTOR, ELEC
CONNECTOR - wire, double line
2шт.
15
A15661
SOCKET ASSY. - panel wire, R.H.
1шт.
16
NSS
NOT SOLD SEPARAT
WIRE - socket to gen. light
1шт.
17
NSS
NOT SOLD SEPARAT
WIRE - socket to fuel gauge
1шт.
18
NSS
NOT SOLD SEPARAT
WIRE - socket to con. temp. gauge
1шт.
19
NSS
NOT SOLD SEPARAT
WIRE - socket to eng. temp. gauge
1шт.
20
NSS
NOT SOLD SEPARAT
WIRE - socket to ign., swt., sol. term. (Diesel)
1шт.
20
NSS
NOT SOLD SEPARAT
WIRE - socket to ign. swt., ignition term. (Gasoline)
1шт.
21
A16996
SOCKET ASSY. - panel wire, L.H.
1шт.
22
NSS
NOT SOLD SEPARAT
WIRE - socket to eng. oil press. gauge
1шт.
23
NSS
NOT SOLD SEPARAT
WIRE - socket to air filter light
1шт.
24
NSS
NOT SOLD SEPARAT
WIRE - socket to ign. swt., "B" term
1шт.
25
NSS
NOT SOLD SEPARAT
WIRE - socket to fuse holder
1шт.
26
NSS
NOT SOLD SEPARAT
WIRE - socket to ign. swt., st. term
1шт.
27
A15662
WIRE - air filter light to light swt., "A" term
1шт.
28
A13754
ELECTRICAL WIRE
WIRE - light swt. to term. block
1шт.
29
A13753
WIRE - light swt., block term. and ign. switch to wire connectors
3шт.
30
A13751
WIRE - light swt. to fuse holder
1шт.
31
A13752
WIRE - fuse holder to ign. swt. "B" term
1шт.
32
A13755
WIRE - conv. temp. gauge and eng. temp. gauge to ign. swt. "IGN" term
2шт.
Выбрано товаров: 33
