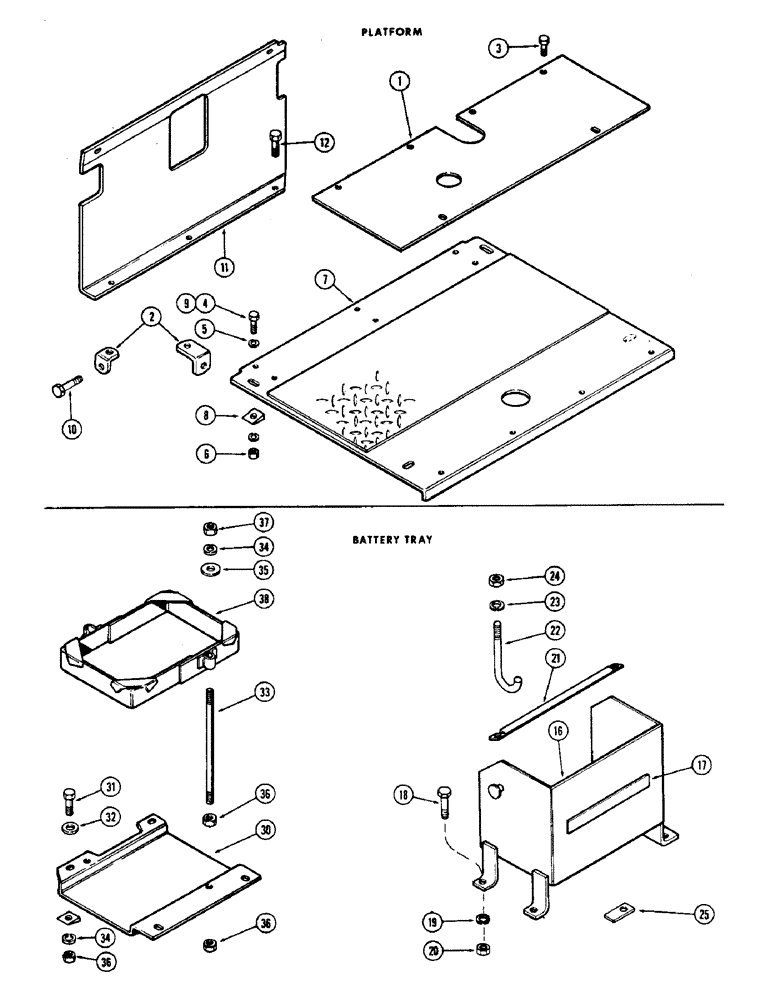

Запчасти Case 500 (107A) - PLATFORM (05) - UPPERSTRUCTURE CHASSIS

1

A16829

PLATE - platform, front

1шт.

2

A16828

SUPPORT

- front plate

2шт.

3

187-1009

BOLT

SCREW - 1/4 x 3/8" hex. wshr. hd.

4шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

7

A16827

PLATFORM - cockpit

1шт.

8

A22164

SHIM - platform to trans. case

8шт.

9

14-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.F., hex.

2шт.

10

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.F., hex.

2шт.

11

A13438

SHIELD - dust, battery

1шт.

12

187-1009

BOLT

SCREW - 1/4 x 3/8" hex. wshr. hd.

3шт.

16

L11755

BOX ASSY. - battery, items 16 through 398 used with dual battery system

1шт.

17

L11756

PAD - battery box, rubber, items 16 through 398 used with dual battery system

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Battery box items 16 through 398 used with dual battery system Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

19

92-6

LOCK WASHER,3/8"

battery box items 16 through 398 used with dual battery system 3/8"

3шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., battery box items 16 through 398 used with dual battery system

3шт.

21

L11751

HOLDDOWN ASSY. - battery, box items 16 through 398 used with dual battery system

1шт.

22

L11754

HOOK - battery holddown, box items 16 through 398 used with dual battery system

2шт.

23

92-5

LOCK WASHER,5/16"

battery box items 16 through 398 used with dual battery system 5/16"

25шт.

24

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., battery box items 16 through 398 used with dual battery system

2шт.

25

L12314

SUPPORT - fuel line hoses, battery box items 16 through 398 used with dual battery system

1шт.

30

A13528

PLATE - battery support, items 30 through 38 used with single system

1шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Items 30 through 38 used with single battery system Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

32

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16", items 30 through 38 used with single battery system

4шт.

33

A13429

BOLT - holddown frame, items 30 through 38 used with single battery system

2шт.

34

92-6

LOCK WASHER,3/8"

items 30 through 38 used with single battery system 3/8"

2шт.

35

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16", items 30 through 38 used with single battery system

2шт.

36

25-106

NUT,3/8"-16, G5

- 3/8" N.C., hex., items 30 through 38 used with single battery system

4шт.

37

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex., items 30 through 38 used with single battery system

2шт.

38

A13424

FRAME - holddown, battery, items 30 through 38 used with single system

1шт.
