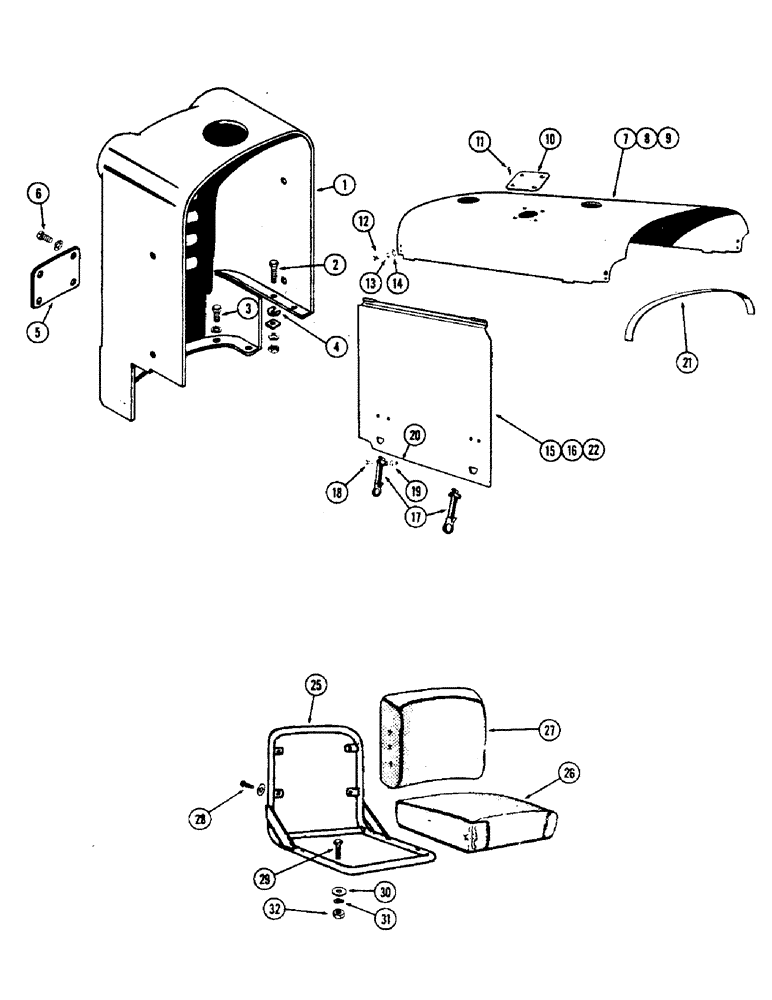

Запчасти Case 500 (106) - GRILLE, HOOD AND SIDE PANELS (05) - UPPERSTRUCTURE CHASSIS

1

A13504

GRILLE - radiator housing

1шт.

2

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2 x 2" N.F. hex.

4шт.

3

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex.

2шт.

4

A22164

SHIM - spacer

1шт.

5

A13505

PLATE - name, grille (Case)

1шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

7

L12000

HOOD ASSY. - engine (Diesel) (Used w/dry & oil bath air cleaner) (Eng. ser. no. 9802215 & after)

1шт.

7

A16931

HOOD ASSY. - engine (Diesel) (Used w/dry & oil bath air cleaner) (Prior to eng. ser. no. 9802215)

1шт.

8

L12001

HOOD ASSY. - engine (Gasoline) (Used w/dry & oil bath air cleaner) (Eng. ser. no. 9802215 & after)

1шт.

8

A15646

HOOD ASSY. - engine (Gasoline) (Used w/dry & oil bath air cleaner) (Prior to eng. ser. no. 9802215)

1шт.

10

A19587

PLATE - cover, hood (Used w/oil bath air cleaner)

1шт.

11

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- mach, #10 - 24 x 3/8" rd. hd.

4шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

8шт.

14

195-2

WASHER - 3/32 X 7/32 X 1/32"

8шт.

15

A16472

SIDE PANEL - hood, R.H.

1шт.

16

A16473

SIDE PANEL - hood, L.H.

1шт.

17

A12514

LATCH

- panel lock

2шт.

18

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- mach., #12 x 5/8" rd. hd.

4шт.

19

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

4шт.

20

225-14112

NUT,#12-24

- #12 N.C. hex.

4шт.

21

A13372

MOULDING - hood, anti-squeak (29")

1шт.

22

A19593

SIDE PANEL - hood, R.H. (Gasoline) (Used w/oil bath air cleaner)

1шт.

A19590

MOULDING - side panel (Rubber) (Used w/oil bath air cleaner) (Not illust.)

1шт.

A13441

SEAT ASSY. - operators

1шт.

25

A13910

FRAME - seat, operators

1шт.

26

A13909

CUSHION

- seat, operators

1шт.

27

A13095

CUSHION

- back rest, operators seat

1шт.

28

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - stove, 1/4 x 3/4" NC, rd. hd., operators seat

4шт.

29

73-528

SCREW,Slotted Flat Hd, 5/16"-18 x 1 3/4"

- mach, 5/16 x 1-3/4" flat hd., operators seat

4шт.

30

195-21

WASHER,5/16"

- plain, 11/16" O.D. x 11/32" I.D., Operators seat

4шт.

31

92-5

LOCK WASHER,5/16"

operators seat 5/16"

4шт.

32

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., operators seat

4шт.
