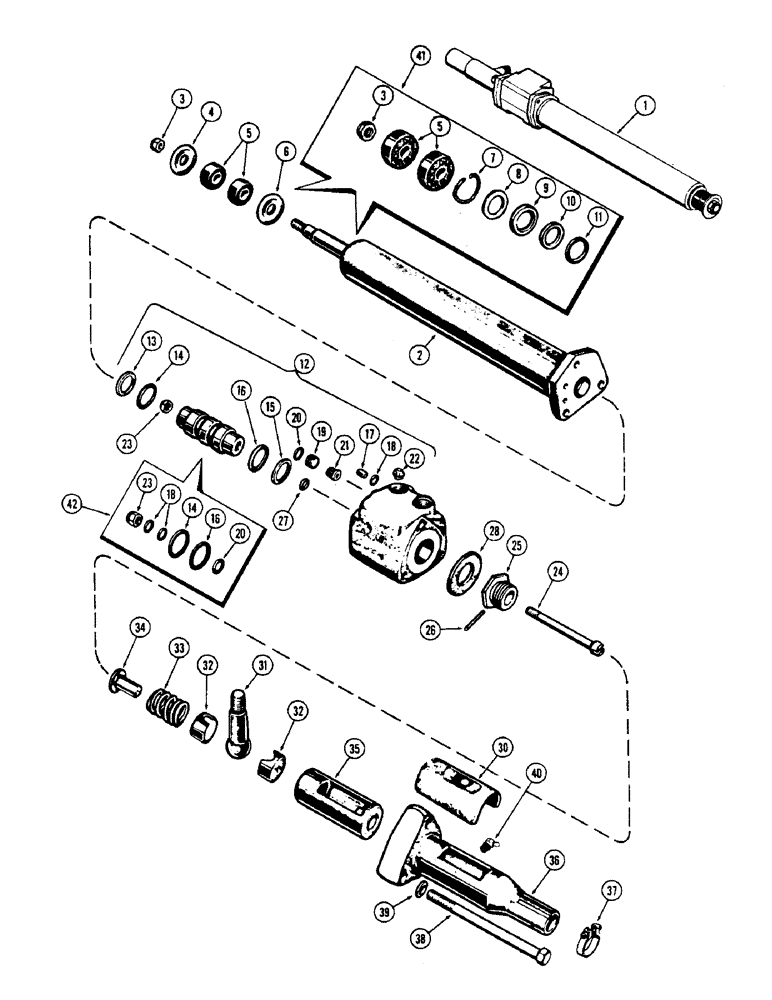

Запчасти Case 500 (100) - G14451 POWER STEERING CYLINDER (05) - UPPERSTRUCTURE CHASSIS

1

G14451

CYLINDER

ASSY. - power steering

1шт.

2

A45076

BODY ASSY. - cyinder

1шт.

3

A40261

NUT

- cushion ret. (See item 42)

1шт.

4

G46119

WASHER

RETAINER - cushion, outer

1шт.

5

A35654

GROMMET

CUSHION - cyl. (Rubber) (See item 41)

2шт.

6

G46118

WASHER

RETAINER - cushion, inner

1шт.

7

NSS

NOT SOLD SEPARAT

RING - snap, washer ret. (Order ref. 41)

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - piston seals ret. (Order ref. 41)

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - oil, piston, outer (Order ref. 41)

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod (Order ref. 41)

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - oil, piston, inner (Order ref. 41)

1шт.

12

G45074

VALVE & SPOOL ASSY.

1шт.

13

G46122

BUSHING

- spool, rear

1шт.

14

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - spool, rear (See item 42)

1шт.

15

G46123

BUSHING

- spool, front

1шт.

16

NSS

NOT SOLD SEPARAT

"O" RING - spool, frt. (Order ref. 42)

1шт.

17

G46129

INSERT - oil port

2шт.

18

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING - insert (See item 42)

2шт.

19

G46121

PLUG

- relief valve

1шт.

20

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - plug (See item 42)

1шт.

21

G45075

LOCK VALVE

VALVE ASSY. - relief

1шт.

22

A15233

SEAT

- power strg. lines

2шт.

23

G49032

NUT

- spool ret. (See item 42)

1шт.

24

G49030

BOLT (SPREADER)

BOLT - spool

1шт.

25

G46108

SCREW

- adj., Serial Range: spool-sleeve

1шт.

26

G46111

PIN

- lock, adj. screw

1шт.

27

G49033

SPACER

- adj. nut

1шт.

28

G49035

PLATE ASSY.

PLATE - sleeve

1шт.

G45078

KIT

STUD KIT (Not illust.)

1шт.

30

G46114

SHIELD

- dust, ball stud

1шт.

31

G46112

STUD

- ball

1шт.

32

G46110

SEAT

- ball stud

2шт.

33

G46113

VALVE SPRING

SPRING - ball stud pressure

1шт.

34

G46115

STOP

GUIDE - spring pilot

1шт.

35

G46109

SLEEVE

- pressure spring

1шт.

36

G14452

SLEEVE

ASSY. - outer

1шт.

37

G45175

CLAMP

- cylinder

1шт.

38

14-672

BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5

- sleeve to body, 3/8 x 4-1/2" N.F. hex.

3шт.

39

92-6

LOCK WASHER,3/8"

3шт.

40

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 1/4" - 28, 90 degrees

1шт.

41

A35655

KIT

SEAL KIT - cylinder body

1шт.

42

G45077

KIT

SEAL KIT - valve & spool

1шт.
