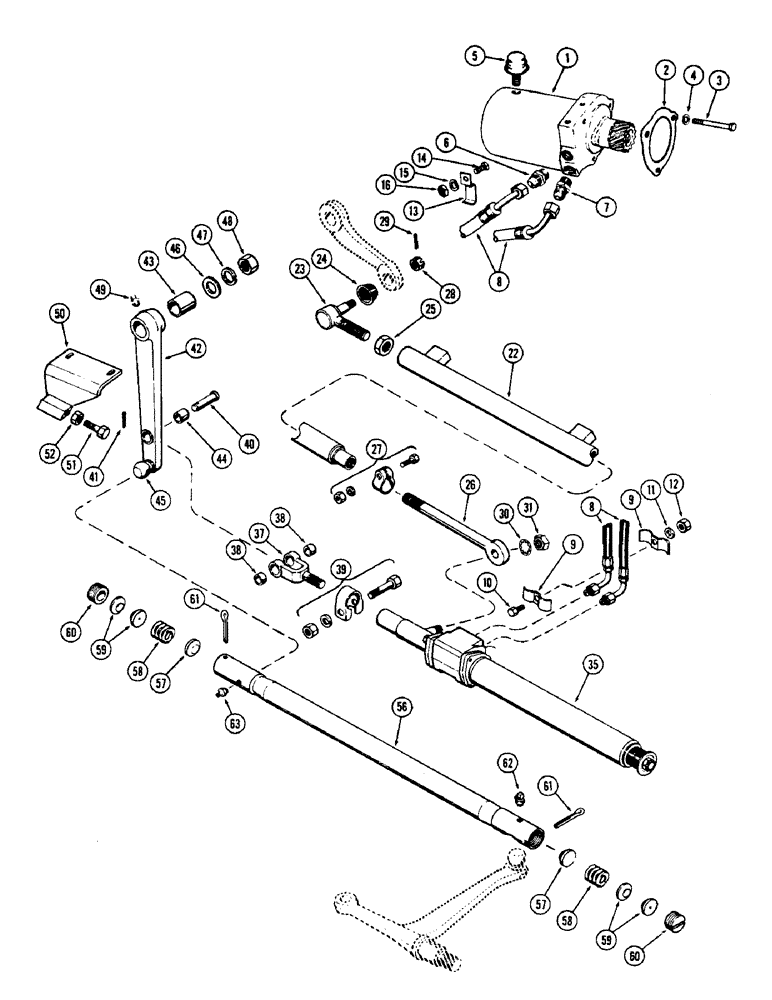

Запчасти Case 500 (098) - POWER STEERING PUMP AND LINES (05) - UPPERSTRUCTURE CHASSIS

1

G45231

PUMP, HYDRAULIC

PUMP ASSY. - w/reservoir

1шт.

2

A30042

GASKET

- power str. pump

1шт.

3

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- pump, 3/8 x 3-1/4" N.C. hex.

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

G45184

BREATHER

- reservoir

1шт.

6

A15804

X

ADAPTER - pressure hose, 5/8" N.F. x 3/8" N.F.

1шт.

7

A15850

ADAPTER - suction hose, 5/8" N.F. x 5/8" N.F.

1шт.

8

A13621

HOSE - power steering

2шт.

9

A13622

PLATE, LOCKING

CLAMP - power str. hose

2шт.

10

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- clamp, 3/8 x 1-3/4" N.F. hex.

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

13

A8312

CLIP - hose

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

22

A13576

DRAG LINK ASSY. - front, steering cylinder

1шт.

23

A28419

END ASSY.

(To drop arm), steering cylinder and drag links

1шт.

24

G46043

COVER

- dust, end (Rubber), steeering cylinder and drag links

1шт.

25

A28079

NUT - lock, end, 13/16" - 18 L.H. thread, steering cylinder and drag links

1шт.

26

A13577

ROD - front drag link, steering cylinder

1шт.

27

A27080

CLAMP

ASSY. - front drag link, steering cylinder

1шт.

28

25-139

SLOTTED NUT,9/16"-18, G5

NUT - end to drop arm, 9/16" N.F. hex. sltd., steering cylinder and drag links

1шт.

29

138-48

PIN - cotter, 1/8 x 1", steering cylinder and drag links 3/32" x 1 3/8", Slotted

1шт.

30

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Steering cylinder and drag links Int Tooth, 1/2"

1шт.

31

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex., steering cylinder and drag links

1шт.

35

G14451

CYLINDER

ASSY. - power str. (See figure 100), drag links

1шт.

37

A15970

YOKE ASSY. - str. cyl. end, drag links

1шт.

38

A13583

BUSHING

- yoke, 5/8 x 3/4 x 3/8", steering cylinder and drag lilnks

2шт.

39

G45175

CLAMP

ASSY. - str. cyl. end, drag links

1шт.

40

A13584

PIN

- yoke to inter. str. arm, cylinder and drag links

1шт.

41

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Steering cylinder and drag links 1/8" x 1 1/4"

1шт.

42

A13578

ARM ASSY. - steering, intermediate, cylinder and drag links

1шт.

43

A27108

BUSHING

- arm pivot, 1 x 1-1/4 x 1-1/2", steering cylinder and drag links

1шт.

44

A27793

BUSHING

- yoke pin, 5/8 X 3/4 X 3/4", steering cylinder and drag links

1шт.

45

A23418

BALL

- rear drag link, steering cylinder

1шт.

46

A28084

WASHER

- thrust, inter. arm, 41/64 x 1-1/2 x 3/16", steering cylinder and drag links

1шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Steering cylinder and drag links 5/8"

1шт.

48

25-110

POSTER

NUT - 5/8" N.F. hex., steering cylinder and drag links

1шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str., cylinder and drag llinks

1шт.

50

A13569

BRACKET - stop, inter. arm limit, steering cylinder and drag links

1шт.

51

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- stop brkt., 1/2 x 1-3/4" N.F. hex., steering cylinder and drag links

1шт.

52

25-118

NUT,1/2"-20, G5

- lock, stop bolt, 1/2" N.F. hex., steering cylinder and drag links

1шт.

56

A13580

DRAG LINK ASSY. - rear, steering cylinder

1шт.

57

A26767

SEAT

- spring, steering cylinder and drag links

2шт.

58

A26630

VALVE SPRING

SPRING - ball seat tension, steering cylinder and drag links

2шт.

59

A26629

BEARING

SEAT - bearing, arm ball, steering cylinder and drag links

4шт.

60

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW - adjusting, ball seat, steering cylinder and drag links

2шт.

62

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Steering cylinder and drag links 90º, 1/8" NPT x .84" lg

1шт.

63

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" straight), steering cylinder and drag links

1шт.

61

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Adjusting screw lock, steering cylinder and drag links 1/8" x 2"

2шт.
