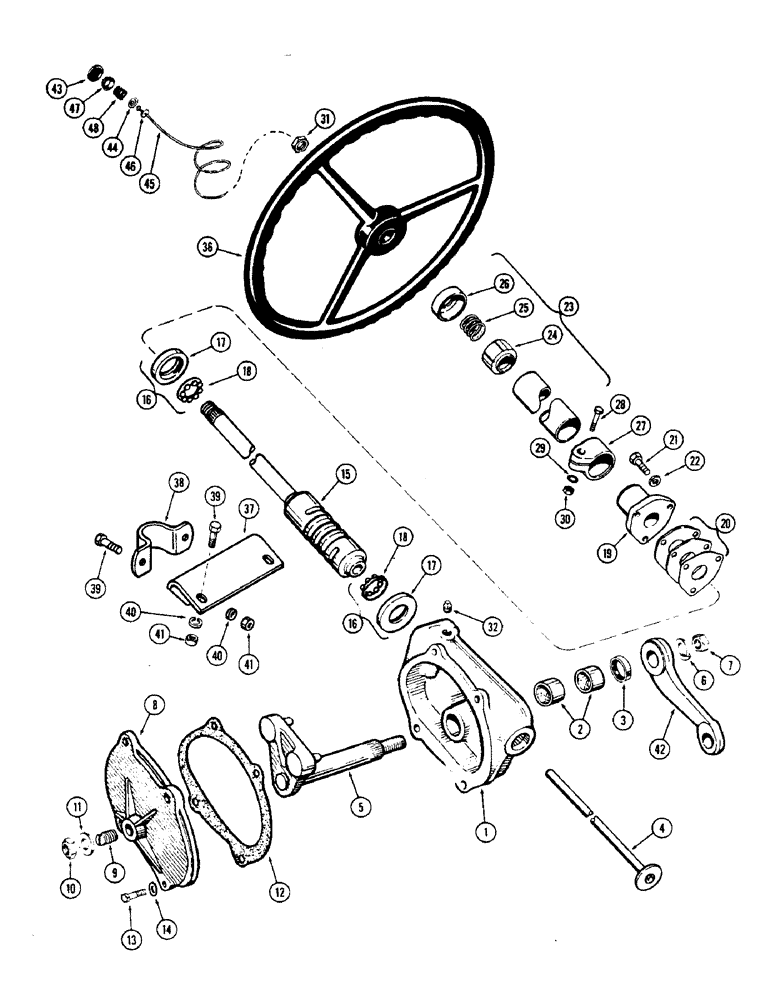

Запчасти Case 500 (096) - STEERING GEAR (05) - UPPERSTRUCTURE CHASSIS

A13568

GEAR ASSY. - steering (Not illust.)

1шт.

1

A14554

HOUSING ASSY.

1шт.

2

G10725

BUSHING

- housing, 1 x 1-1/4 x 1"

2шт.

3

A18322

SEAL

- oil

1шт.

4

A18323

COVER ASSY

COVER - hsg. end & horn wire tube

1шт.

5

A14556

LEVERSHAFT ASSY.

1шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Drop arm 3/4"

1шт.

7

25-1512

JAM NUT,Jam, 3/4"-10, G5

- droparm, 3/4" N.F. half hex.

1шт.

8

A14557

COVER ASSY. - side

1шт.

9

A18330

SCREW - levershaft adjusting

1шт.

10

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex. adj. screw

1шт.

11

L30219

RING - adj. screw sealing

1шт.

12

A14558

GASKET

- side cover

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Cover Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

14

A31046

WASHER

- cover bolts, 21/64 x 9/16" x 18 ga. copper

4шт.

15

A14555

WORM GEAR ASSY. - steering

1шт.

16

L30422

KIT

- bearing

1шт.

17

NSS

NOT SOLD SEPARAT

RACE - ball cup

2шт.

18

NSS

NOT SOLD SEPARAT

RETAINER & BALL ASSY.

2шт.

19

A14559

COVER - housing, upper

1шт.

20

A18331

SHIM,.002" Thk

Upper cover .002" Thk

1шт.

20

A18332

SHIM,.003" Thk

Upper cover .003" Thk

1шт.

20

A18333

SHIM,.010" Thk

Upper cover .010" Thk

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Upper cover Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

22

A31046

WASHER

- cover bolts, 21/64 x 9/16" x 18 ga. copper

3шт.

23

A14561

SLEEVE ASSY. - steering shaft

1шт.

24

A30610

BUSHING

BEARING - steering shaft

1шт.

25

A30713

VALVE SPRING

SPRING - bearing

1шт.

26

A18325

SEAT

CAP - sleeve & spring seat

1шт.

27

A31045

CLAMP

ASSY. - sleeve to upper cover

1шт.

28

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- clamp, 5/16 x 2" N.F. hex.

1шт.

29

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

30

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

31

A14567

JAM NUT

- str. wheel ret.

1шт.

32

221-12

PLUG,Sq Hd, 1/4"-18

- housing, 1/4" P.T., sq. hd.

1шт.

36

A13567

WHEEL (STEERING)

WHEEL - steering

1шт.

37

A13419

BRACKET - steering column support

1шт.

38

A13430

CLAMP

- steering column

1шт.

39

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Bracket & clamp Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

40

92-6

LOCK WASHER,3/8"

4шт.

41

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

42

A14563

ARM - drop, steering (Replaces A19417)

1шт.

43

A14568

BUTTON

- horn (Rubber)

1шт.

44

A14570

DISC - contact (In button)

1шт.

45

A14574

WIRE - horn

1шт.

46

A14572

INSULATION - wire (Rubber ferrule)

1шт.

47

A14569

CUP - horn button spring ret.

1шт.

48

A14571

SPRING - horn button

1шт.
