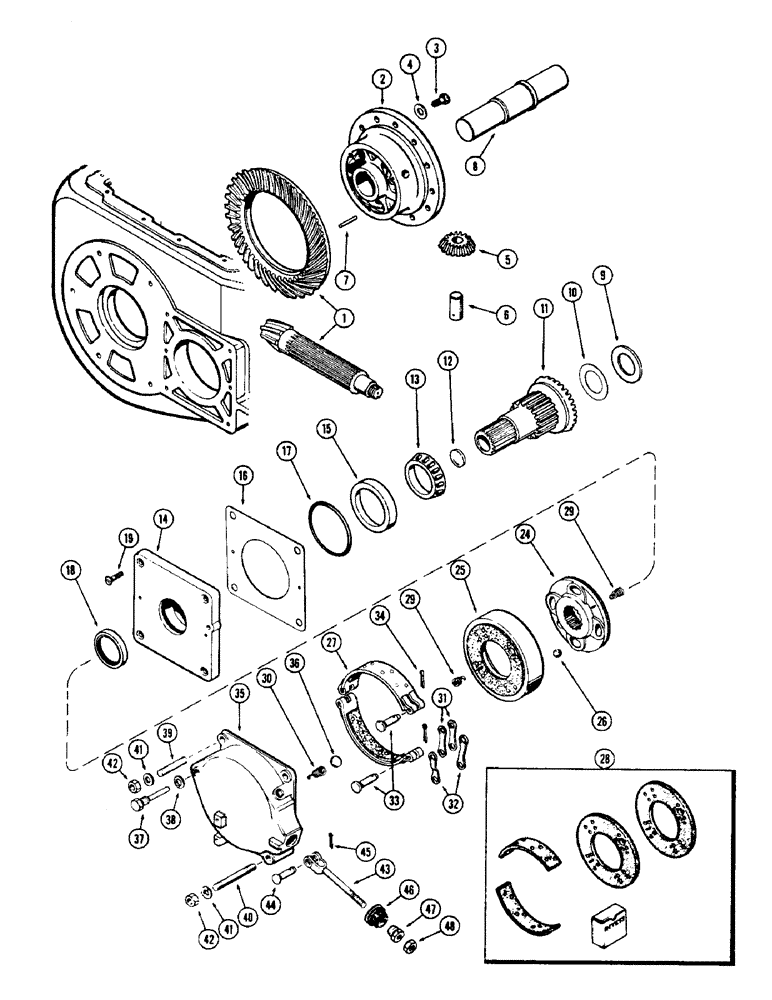

Запчасти Case 500 (094) - DIFFERENTIAL AND BRAKES (03) - TRANSMISSION

1

G14420

GEAR

SET - ring gear and pinion

1шт.

2

G1701

X

WHEEL - center, diff. ring gear (Use 1-G37134, 3-A37135, 3-138-141, 12-114-318- and 12-A30013

1шт.

2

A37134

X

WHEEL - center, diff. ring gear

1шт.

3

G49023

BOLT - ring gear to ctr. wheel (Used with G1701 wheel)

12шт.

3

114-318

BOLT

- ring gear to ctr. wheel (Used w/A37137)

12шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- ring gear bolt (Used w/A37134)

12шт.

5

G17006

GEAR WHEEL

GEAR - pinion

3шт.

6

G17005

SHAFT - pinion gear (Used with G1701)

3шт.

6

A37135

AXLE PIN

PIN - pinion gear (Used w/A37134)

3шт.

7

138-103

LOCK PIN,3/16" x 1 7/8", Slotted

PIN, LOCK, , Pinion, shaft, used w/G101 3/16" x 1 7/8", Slotted

3шт.

7

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, , Pinion, shaft (used w/A37134) 1/4" x 1 7/8", Slotted

3шт.

8

G17004

SHAFT - cross, differential

1шт.

9

G47000

WASHER - thrust, ctr. wheel (.089")

1шт.

9

G47001

WASHER - thrust, ctr. wheel (.094")

1шт.

9

G47002

WASHER - thrust, ctr. wheel (.099")

1шт.

9

G47003

WASHER - thrust, ctr. wheel (.104")

1шт.

9

G47004

WASHER - thrust, ctr. wheel (.109")

1шт.

9

G47005

WASHER - thrust, ctr. wheel (.119")

1шт.

10

G17007

SHIM - thrust washer (.010")

1шт.

11

G30597

GEAR ASSY. - side

2шт.

12

A29902

PLUG

- side gear (1-5/8" cup type)

1шт.

13

A7891

ROLLER BEARING

CONE - brg., side gear, R.H.

1шт.

13

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - brg. side gear, L.H.

1шт.

14

A30471

CARRIER ASSY. - side gear brg., R.H.

1шт.

14

G30470

CARRIER

ASSY. - side gear brg. L.H.

1шт.

15

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - brg., R.H. side gear

1шт.

15

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - brg., L.H. side gear

1шт.

16

A38165

SHIM,.003" Thk

Bearing carrier .003" Thk

1шт.

16

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

16

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

17

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - brg., carrier, 5 x 5-1/4 x 1/8"

2шт.

18

G13813

OIL SEAL

- oil, brg. carrier, 2-1/2 x 3-1/4 x 1/2"

2шт.

19

171-205

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 1"

- brg. carrier, 3/8 x 1" N.F. flat hd.

4шт.

24

NLS

NO LONGER SERVICED

ASSY. - brake, w/lining (See item 28)

2шт.

25

G45361

DRUM

ASSY. - brake, w/lining (See item 28)

2шт.

26

211-21

BALL

- brake drum (1" dia.)

8шт.

27

G45468

BRAKE LINING

BAND ASSY. - brake, w/lining (See item 29)

4шт.

28

G45391

SET

LINING KIT - brake (For 1 wheel)

2шт.

29

G48508

SPRING

- disc. return (Orange finish)

4шт.

30

G48507

SPRING

- band return (Black finish)

4шт.

31

G46345

LINK

- brake band (Straight)

4шт.

32

G46344

LINK

- brake band (Offset)

4шт.

33

G49082

PIN,14.22mm OD x 40.03mm L

-, Serial Range: links-band

4шт.

34

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

35

A1386

HANDBOOK

COVER - brake, left hand

1шт.

35

G1387

COVER - brake, right hand

1шт.

36

41-13

GUARD,Exp, 13/16"

- cover, 13/16" expansion

4шт.

37

G15801

BOLT

- anchor, brake band

2шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

39

A29719

STUD - cover, 1/2" N.F. x 2-13/16"

6шт.

40

G15458

STUD

- cover, 1/2" N.F. x 4-1/2"

2шт.

41

92-8

LOCK WASHER,1/2"

8шт.

42

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

8шт.

43

G46359

ROD - brake control

2шт.

44

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - brake rod

2шт.

45

132-296

PIN - cotter, 3/32 x 3/4"

2шт.

46

A10943

CAP - dust, brake rod hole

2шт.

47

G10709

NUT

- adjusting, brake rod

2шт.

48

25-118

NUT,1/2"-20, G5

- lock, adj. nut, 1/2" N.F. hex.

2шт.
