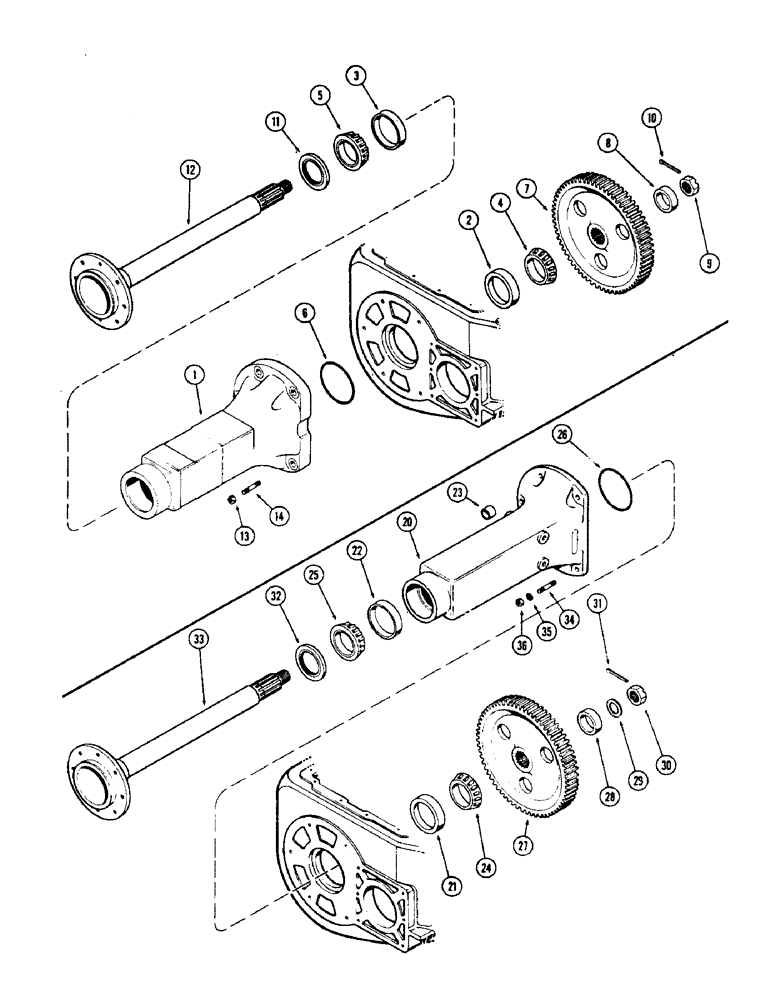

Запчасти Case 500 (087A) - FRONT AXLE (03) - TRANSMISSION

1

A37156

HOUSING ASSY. - axle (See note)

2шт.

2

G10415

BEARING CUP

CUP - bearing, inner

1шт.

3

A37158

BEARING CUP

CUP - bearing, outer

1шт.

4

G10414

ROLLER BEARING

CONE - bearing, inner

2шт.

5

A37157

ROLLER BEARING,2.625" ID x 1"

CONE - bearing, outer

2шт.

6

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - hsg., inner, 5 x 5-1/4 x 1/8"

2шт.

7

G30329

KIT

GEAR ASSY. - final drive (65 teeth)

2шт.

8

G49610

SPACER

- final drive gear, 2-17/32 x 2-7/8 x 15/16"

1шт.

9

A30075

WHEEL NUT

- drive gear ret., 1-1/2" N.F. sltd.

2шт.

10

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , Nut 1/4" x 2 1/2"

2шт.

11

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

- oil, axle, outer, 3 x 4-11/32 x 1/2"

2шт.

12

G17180

AXLE - front

2шт.

13

25-1010

NUT,5/8"-11, G5

Housing stud 5/8"-11, G5

10шт.

14

A37143

STUD

- axle housing to trans. case, 5/8" N.C. x 2-7/8"

10шт.

20

G30472

HOUSING ASSY. - left hand (See note)

1шт.

20

G30473

HOUSING ASSY. - right hand (See note)

1шт.

21

G10415

BEARING CUP

CUP - bearing, inner

1шт.

22

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - bearing, outer

1шт.

23

A9176

BUSHING

- draft arm pivot, 1-1/8 x 1-3/8 x 15/16"

2шт.

24

G10414

ROLLER BEARING

CONE - bearing, inner

2шт.

25

G15207

ROLLER BEARING

CONE - bearing, outer

2шт.

26

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - hsg., inner, 5 x 5-1/4 x 1/8"

2шт.

27

G30329

KIT

GEAR ASSY. - final drive (65 teeth)

2шт.

28

G49610

SPACER

- final drive gear, 2-17/32 x 2-7/8 x 15/16"

1шт.

29

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- axle take-up, 1-17/32 x 2-3/4 x 1/4"

2шт.

30

A30075

WHEEL NUT

- drive gear ret., 1-1/2" N.F. sltd.

2шт.

31

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , Nut 1/4" x 2 1/2"

2шт.

32

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

- oil axle, outer, 3 x 4-11/32 x 1/2"

2шт.

33

G17180

AXLE - front

2шт.

34

A29715

STUD

- housing, 5/8" N.F. X 2-11/16"

10шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

36

25-1110

NUT,5/8"-18, G5

- hsg. stud, 5/8" N.F. hex.

10шт.
