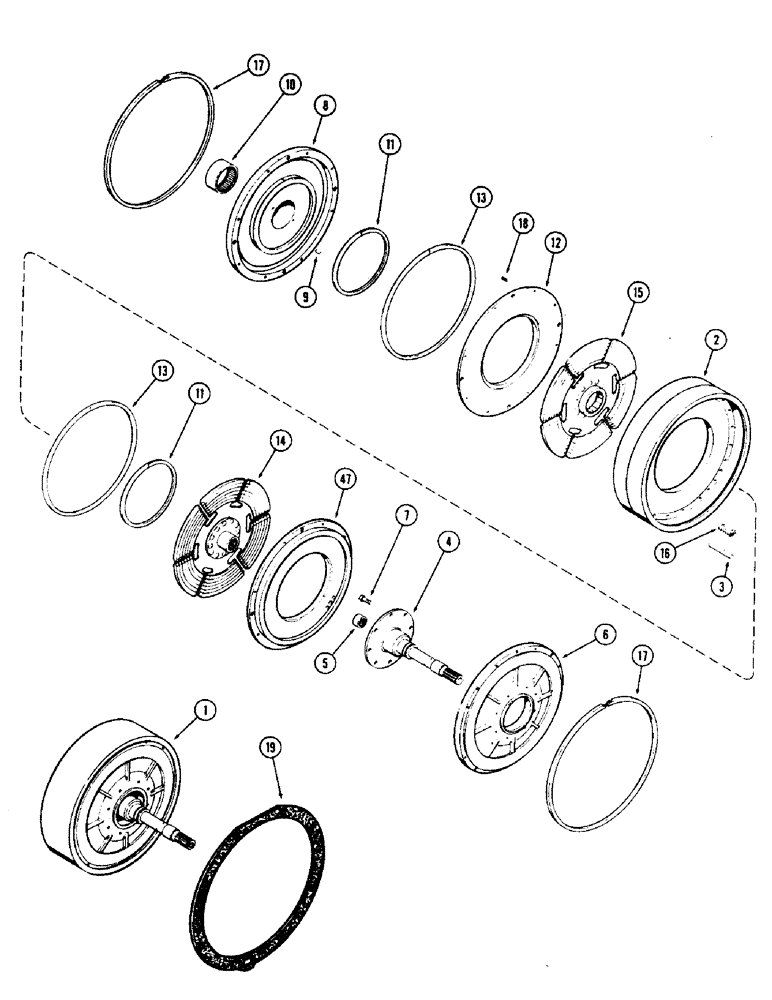

Запчасти Case 500 (083C) - L30238 FORWARD AND REVERSE CLUTCH (03) - TRANSMISSION

1

L30238

CLUTCH ASSY. - forward & reverse

1шт.

2

A14828

X

PLATE ASSY. - clutch pressure

4шт.

3

A14829

AXLE PIN

PIN - drive, 3/8 x 2-3/8"

1шт.

4

A14819

SHAFT ASSY. - input

1шт.

5

T32720

BEARING

- needle

1шт.

6

L30248

CYLINDER

- clutch, front

1шт.

7

L30440

BOLT

- input shaft, lock

8шт.

8

L30243

X

CYLINDER ASSY. - clutch, rear

1шт.

9

L30245

PLUG

- rear cylinder, 7/32 x 1/4"

2шт.

10

L30246

BEARING

- needle

1шт.

11

A14832

RING

- sealing, clutch cylinder, 5-7/8" closed dia.

2шт.

12

A14830

PISTON ASSY.

PISTON - clutch

2шт.

13

A14831

RING

- sealing, piston, 10" closed dia.

2шт.

14

A14822

PLATE

ASSY. - forward clutch, w/facing

1шт.

14

A14822R

REMAN-CLUTCH PLATE

500 Load King Wheel Loader

1шт.

14

A14822C

CORE-CLUTCH PLATE

Return Number

1шт.

15

A14823

PLATE

ASSY. - reverse clutch, w/facing

1шт.

16

A14827

VALVE SPRING

SPRING - clutch retractor, 1-7/8" free length

24шт.

17

A14826

X

RING - snap, cylinder retaining

2шт.

18

L30693

SCREW

- nylock

2шт.

19

A14886

GASKET

- trans. case

1шт.
