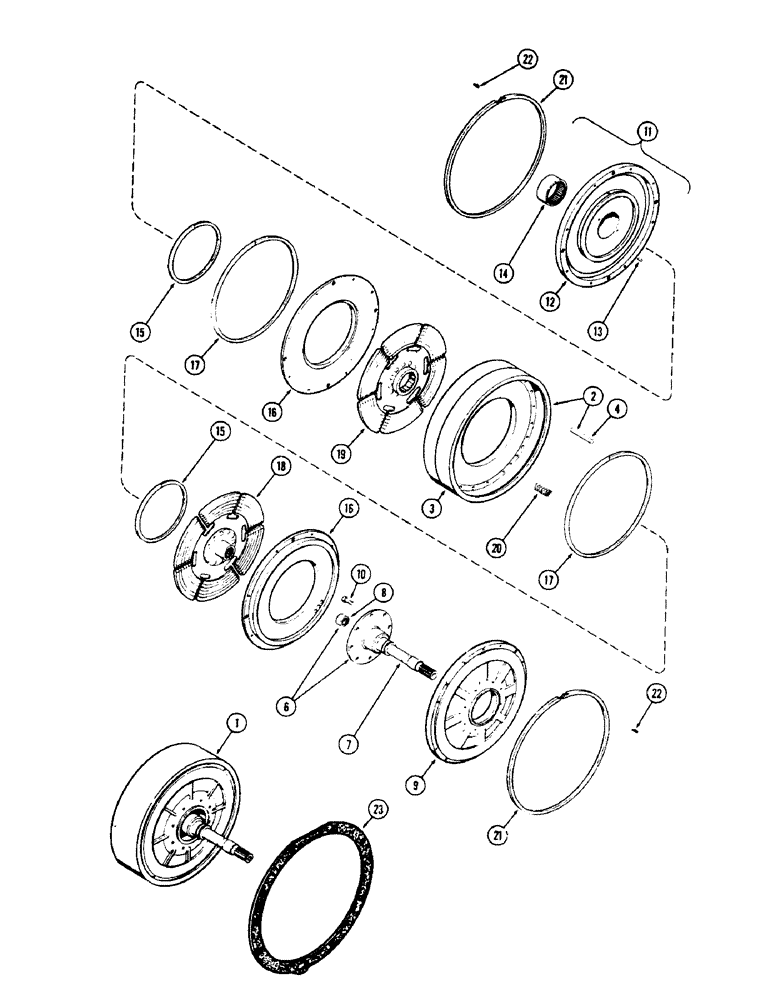

Запчасти Case 500 (083A) - L30700 FORWARD AND REVERSE CLUTCH (03) - TRANSMISSION

1

L30700

CLUTCH ASSY. - forward and reverse

1шт.

2

L30694

PLATE

ASSY. - clutch pressure

1шт.

2

L30694R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

2

L30694C

CORE-CLUTCH PLATE

Return Number, Plate Assy., Pressure

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - clutch pressure

1шт.

4

A14829

AXLE PIN

PIN - pressure plate drive

4шт.

6

A14819

SHAFT - input assy.

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - input

1шт.

8

T32720

BEARING

- needle, input shaft

1шт.

9

L30698

CYLINDER BLOCK

CYLINDER - front clutch

1шт.

10

L30440

BOLT

- lock

8шт.

11

L30692

CYLINDER

ASSY. - plug & brg.

1шт.

12

NSS

NOT SOLD SEPARAT

CYLINDER - rear clutch

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - rear cylinder

2шт.

14

L30246

BEARING

- needle

1шт.

15

A14832

RING

- clutch piston inner seal

2шт.

16

A14830

PISTON ASSY.

PISTON - clutch

2шт.

17

A14831

RING

- clutch piston outer seal

2шт.

18

A14822

PLATE

ASSY. - forward clutch, w/facing

1шт.

18

A14822R

REMAN-CLUTCH PLATE

500 Load King Wheel Loader

1шт.

18

A14822C

CORE-CLUTCH PLATE

Return Number

1шт.

19

A14823

PLATE

ASSY. - reverse clutch, w/facing

1шт.

20

A14827

VALVE SPRING

SPRING - clutch retractor

24шт.

21

A14826

X

RING - snap, front & rear cyl. to plate

2шт.

22

L30693

SCREW

- nylock

2шт.

23

A14886

GASKET

- trans. case

1шт.
