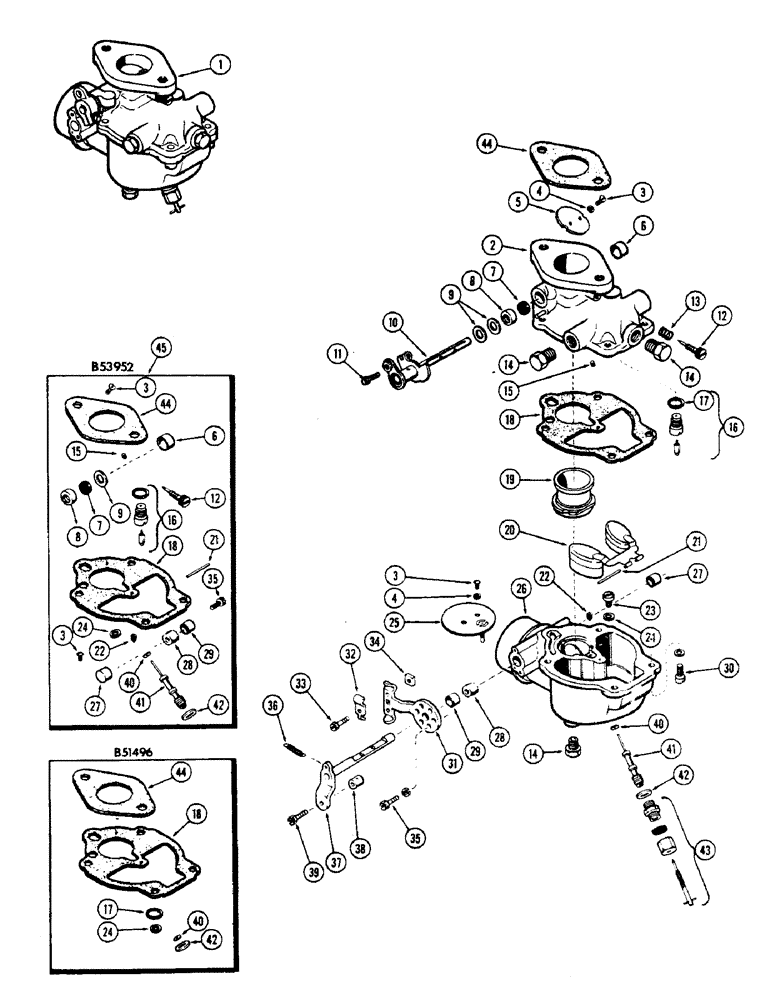

Запчасти Case 500 (048) - A35819 CARBURETOR, (188) SPARK IGNITION ENGINE, USE WITH DRY AIR FILTER (02) - FUEL SYSTEM

1

A35819

CARBURETOR ASSY. - eng. fuel (Zenith #267 x 8)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle, carb. (Order A35819)

1шт.

3

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke and throttle fly

4шт.

4

NSS

NOT SOLD SEPARAT

WASHER - lock, choke & throttle flyscrew

4шт.

5

B39366

PLATE - throttle

1шт.

6

B51438

PLUG

- shaft hole, throttle

1шт.

7

B51528

SEAL

- throttle shaft

1шт.

8

B51416

RETAINER

- seal, throttle shaft

1шт.

9

B51530

SPACER

- throttle lever

2шт.

10

B51246

SHAFT - throttle

1шт.

11

B51583

SCREW - throttle stop

1шт.

12

B51265

HOSE

NEEDLE - adjusting, idle

1шт.

13

B51404

SPRING

- idle needle

1шт.

14

B51541

PLUG

- fuel drain & inlet

3шт.

15

A25174

JET

- idle

1шт.

16

B51343

HYDRAULIC VALVE

VALVE ASSY. - fuel seating

1шт.

17

B51618

WASHER

GASKET - valve seat

1шт.

18

B51471

GASKET

- throttle, Serial Range: body-bowl

1шт.

19

A25170

VENTURI

- carburetor throat

1шт.

20

B51359

FLOAT

- carburetor

1шт.

21

B51433

AXLE

SHAFT - pivot, float

1шт.

22

B51340

JET

VENT - discharge jet well

1шт.

23

A25173

JET

- main

1шт.

24

B51619

WASHER

- main jet

1шт.

25

B51365

PLATE

- fly, choke

1шт.

26

B51180

BOWL

ASSY. - fuel, carburetor

1шт.

27

B51509

PLUG

- end, choke shaft opening

1шт.

28

B51533

WASHER

PACKING - washer, choke shaft

1шт.

29

B51439

RETAINER

- packing washer

1шт.

30

B51635

SCREW,5/8" x 0.335"

- retainer, Serial Range: bowl-body

4шт.

31

B51400

SUPPORT

BRACKET - choke

1шт.

32

B51403

CLIP

- wire, choke

1шт.

33

B51580

SCREW

- wire clip

1шт.

34

B51594

X

NUT - clip screw

1шт.

35

B51458

SCREW,#8 - 32 x 0.37"

- choke bracket

2шт.

36

B51412

SPRING

- return, choke lever

1шт.

37

A25176

SHAFT

ASSY. - choke lever

1шт.

38

NSS

NOT SOLD SEPARAT

SWIVEL - choke lever

1шт.

39

A25179

SCREW - lever swivel, choke

1шт.

40

B51610

WASHER

- discharge jet

1шт.

41

A25175

JET

- discharge, carb.

1шт.

42

B51618

WASHER

- main jet adj.

1шт.

43

A25171

VALVE ASSY. - needle, main jet

1шт.

44

G46826

GASKET

- mtg., Serial Range: carb.-manifold

1шт.

45

B53952

KIT

REPAIR KIT - carb. overhaul

1шт.

46

B51496

GASKET

KIT - carburetor repair

1шт.
