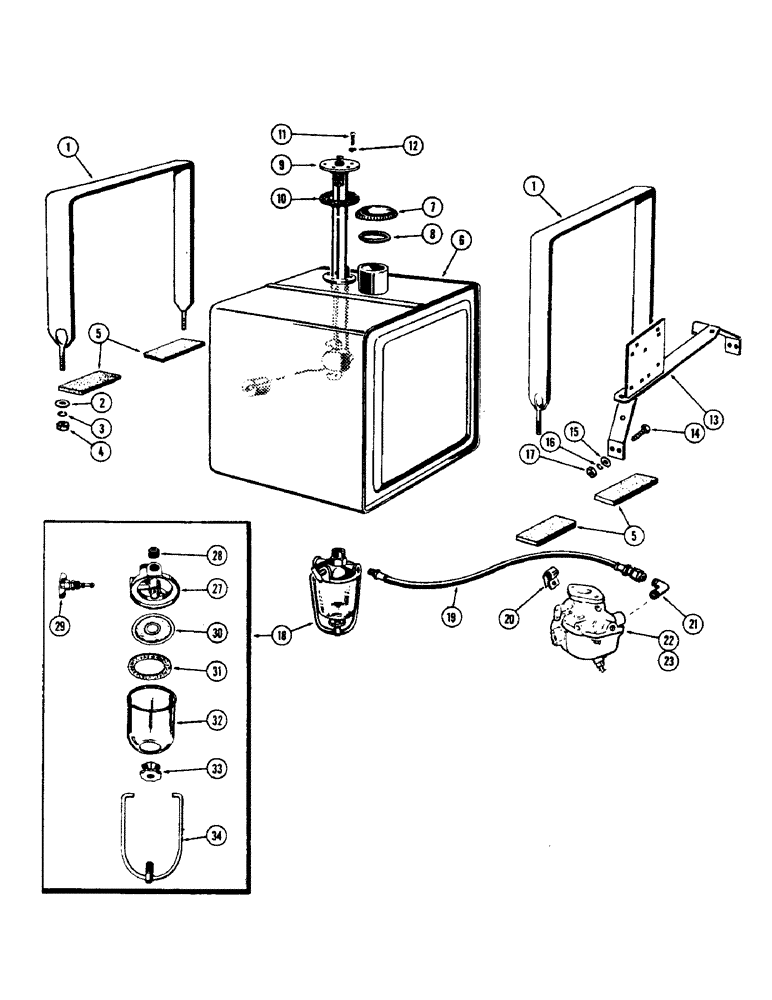

Запчасти Case 500 (046) - FUEL TANK SYSTEM, (188) SPARK IGNITION ENGINE (02) - FUEL SYSTEM

1

A13425

STRAP - hold down, fuel tank

2шт.

2

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

2шт.

5

A7390

CUSHION - mtg., fuel tank

4шт.

6

A13427

TANK - fuel

1шт.

7

A33558

CAP

- filler, fuel tank

1шт.

8

A20619

GASKET

- filler cap

1шт.

9

A13669

SENDER UNIT

UNIT - sending, fuel tank (12 V)

1шт.

10

A11822

GASKET

- mtg., sending unit

1шт.

11

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- mach., #10 - 32 x 5/8"

5шт.

12

192-8

WASHER - lock, #10

5шт.

13

A16459

SUPPORT - fuel tank

1шт.

14

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F., hex.

4шт.

15

195-25

WASHER,3/8"

- 13/32 x 13/16 x 5/64"

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

4шт.

18

A26615

STRAINER ELEMENT

FILTER ASSY. - fuel

1шт.

19

A16463

HOSE - fuel, Serial Range: filter-carburetor

1шт.

20

A26696

NO LONGER SERVICED

CLAMP - support, fuel hose

1шт.

21

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

- flared 90 degree tube, 5/16 x 1/8" P.T.

1шт.

22

A35819

CARBURETOR ASSY. - fuel (Used w/dry air filter) (Repairs, figure 48)

1шт.

23

A35817

CARBURETOR ASSY. - fuel (Used w/oil bath air cleaner) (Repairs, figure 50)

1шт.

A26615

STRAINER ELEMENT

FILTER ASSY. - fuel

1шт.

27

A11215

BODY

- fuel filter

1шт.

28

221-1849

PLUG

- pipe, 1/8" socket hd., fuel filter

1шт.

29

A11205

VALVE

ASSY. - needle, fuel filter

1шт.

30

A11202

SCREEN

- fuel filter

1шт.

31

A11203

GASKET

- bowl to body, fuel filter

1шт.

32

A11204

BOWL

- fuel (Glass), filter

1шт.

33

A11207

NUT

- cup, bowl to body, fuel filter

1шт.

34

A11206

BAIL

ASSY. - bowl retainer, fuel filter

1шт.
