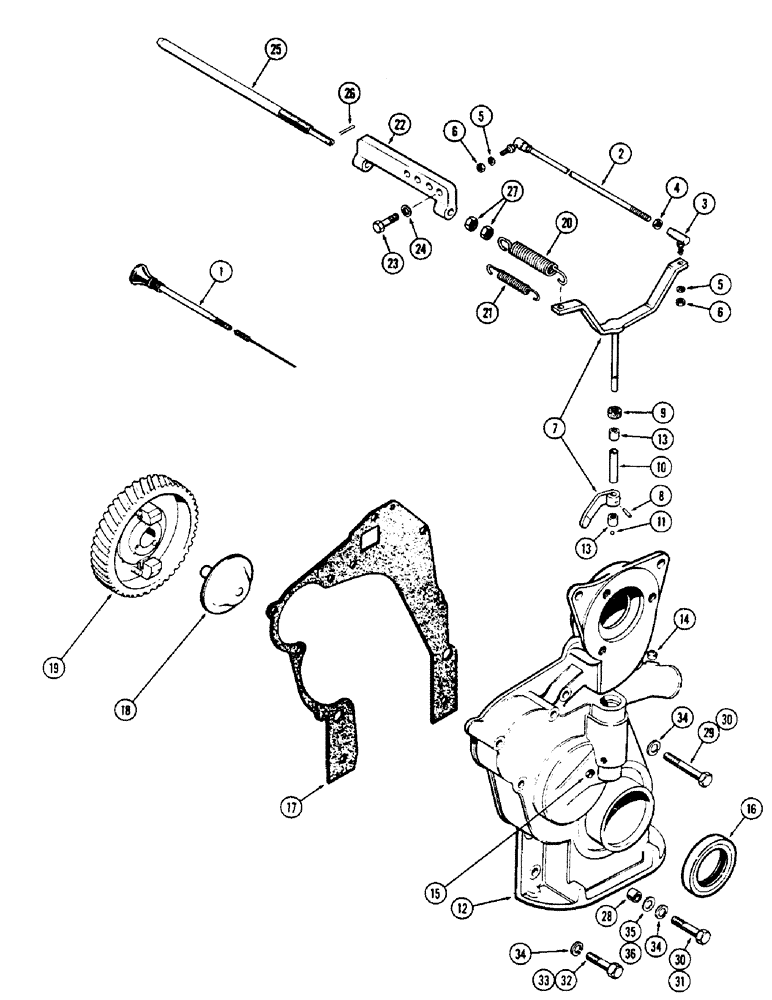

Запчасти Case 500 (042) - GOVERNOR AND THROTTLE, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

A26811

CONTROL ASSY. - choke

1шт.

2

G45228

ROD

ASSY. -, Serial Range: gov.-carburetor

1шт.

3

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ASSY. - ball, control

1шт.

4

25-114

NUT,1/4"-28, G5

- 1/4" N.F., hex.

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

25-114

NUT,1/4"-28, G5

- 1/4" N.F., hex.

2шт.

7

A30125

SHAFT

LEVER ASSY. - governor control

1шт.

8

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

9

A30011

SEAL

- dust, lever shaft

1шт.

10

A30012

SPACER

- thrust, lever shaft

1шт.

11

211-5

BALL,3/16" Dia

- thrust, . 3/16" Dia

1шт.

12

A36822

COVER

ASSY. - timing gear & governor

1шт.

13

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, lever shaft

2шт.

14

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

15

A30016

FITTING

PLUG - pipe, 1/8" slotted

1шт.

16

A36609

OIL SEAL

- oil, front crankshaft

1шт.

17

G46863

GASKET

- cover, timing gear

1шт.

18

A29957

SHAFT

- thrust, governor

1шт.

19

G37066

GEAR

ASSY. - camshaft, w/gov. weights

1шт.

20

G48511

SPRING

- governor control, outer

1шт.

21

A37005

SPRING

- governor control, inner

1шт.

22

G2133

GUIDE

- control rod, governor

1шт.

23

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

25

G11371

ROD

- governor control

1шт.

26

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

27

131-412

NUT - pal, 7/16"

2шт.

28

A29442

RING

- dowel, timing cover

2шт.

29

15-652

X

BOLT - 3/8 x 3-1/4" N.C. hex.

3шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

34

92-6

LOCK WASHER,3/8"

10шт.

35

195-22

WASHER

- 3/8 x 3/4 x 1/16"

2шт.

36

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

3шт.
