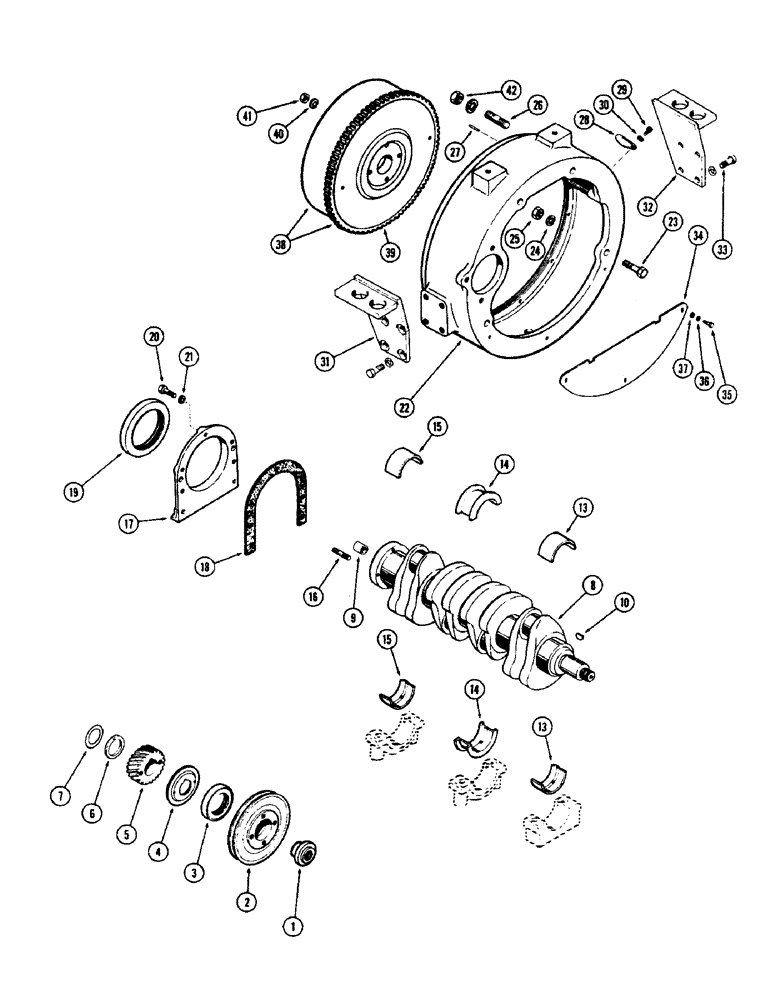

Запчасти Case 500 (038) - CRANKSHAFT, (188) SPARK IGNITION ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A35673
NUT
- crankshaft pulley
1шт.
2
G11342
X
PULLEY - drive, fan & generator
1шт.
3
A36609
OIL SEAL
- oil, crankshaft front
1шт.
4
A29259
SLINGER
- oil, crank. frt. bearing
1шт.
5
A29263
GEAR
- front, crankshaft
1шт.
6
A29294
BUSHING
SPACER - thrust, crankshaft
1шт.
7
A29293
SHIM,.010" Thk
Frt. brg. crankshaft .010" Thk
1шт.
8
G11876
CRANKSHAFT
ASSY. - engine
1шт.
9
A30024
BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L
- pilot, crankshaft
1шт.
13
A36480
BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W
LINER KIT - frt. brg. (Std. size) (Set of 2)
1шт.
13
A36481
LINING
LINER KIT - frt. brg. (-.002") (Set of 2)
1шт.
13
A36482
BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W
LINER KIT - frt. brg. (-.010") (Set of 2)
1шт.
13
A36483
LINING
LINER KIT - frt. brg. (-.020") (Set of 2)
1шт.
13
A36484
LINING
LINER KIT - frt. brg. (-.030") (Set of 2)
1шт.
14
A36490
BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W
LINER KIT - center brg. (Std. size) (Set of 2)
1шт.
14
A36491
LINING
LINER KIT - center brg. (-.002") (Set of 2)
1шт.
14
A36492
BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W
LINER KIT - center brg. (-.010") (Set of 2)
1шт.
14
A36493
BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W
LINER KIT - center brg. (-.020") (Set of 2)
1шт.
14
A36494
LINING
LINER KIT - center brg. (-.030") (Set of 2)
1шт.
15
A36495
BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W
LINER KIT - rear brg. (Std. size) (Set of 2)
1шт.
15
A36496
LINING
LINER KIT - rear brg. (-.002") (Set of 2)
1шт.
15
A36497
BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W
LINER KIT - rear brg. (-.010") (Set of 2)
1шт.
15
A36498
KIT
LINER KIT - rear brg. (-.020") (Set of 2)
1шт.
15
A36499
BEARING LINER
LINER KIT - rear brg. (-.030") (Set of 2)
1шт.
16
A29434
STUD
-, Serial Range: crank-flywheel
4шт.
REF#16 LATER UNITS USED 121-300 10/23/96
1шт.
17
G2017
RETAINER
- rear oil seal
1шт.
18
G46802
GASKET
- rear oil seal retainer
1шт.
19
A36610
OIL SEAL
- oil, crankshaft, rear
1шт.
20
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
4шт.
20
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
Retainer Hex, 1/4"-20 x 1", G5
3шт.
21
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
7шт.
22
G1347
HOUSING
- flywheel
1шт.
23
A30135
BOLT
BOLT - housing to engine, flywheel
2шт.
24
193-24
LOCK WASHER,Int Tooth, #6
WASHER - Shakeproof, 5/8" ext., flywheel and housing
2шт.
25
25-1110
NUT,5/8"-18, G5
- 5/8" N.F. hex., flywheel and housing
2шт.
26
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
STUD - housing to converter hsg., flywheel and housing
2шт.
27
138-63
LOCK PIN,1/8" x 1 1/4", Slotted
PIN, , Timing pointer, flywheel and housing 1/8" x 1 1/4", Slotted
1шт.
28
A29068
COVER
- timing hole, flywheel and housing
1шт.
29
13-48
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
Flywheel and housing Hex, 1/4"-20 x 1/2", G5, Full Thd
1шт.
30
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , Flywheel and housing 1/4"
1шт.
31
A16408
SUPPORT - flywheel hsg., L.H.
1шт.
32
A16409
SUPPORT - flywheel hsg., R.H.
1шт.
33
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
Flywheel and housing Hex, 1/2"-13 x 1 1/4", G5, Full Thd
8шт.
34
G11716
COVER
- dust, flywheel and housing
1шт.
35
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Flywheel and housing Hex, 1/4"-20 x 3/4", G5, Full Thd
3шт.
36
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , Flywheel and housing 1/4"
3шт.
37
95-4
WASHER,1/4"
- 5/16 x 3/4 x 1/16", flywheel and housing
3шт.
38
G11903
FLYWHEEL ASSY. - engine, housing
1шт.
39
G11710
GEAR
- ring, flywheel (135 T), housing
1шт.
40
92-7
LOCK WASHER,7/16"
flywheel and housing 7/16"
4шт.
41
25-117
NUT,7/16"-20, G5
- 7/16" N.F., hex., flywheel and housing
4шт.
42
25-1110
NUT,5/8"-18, G5
- 5/8" N.F., hex., flywheel and housing
2шт.
Выбрано товаров: 54
