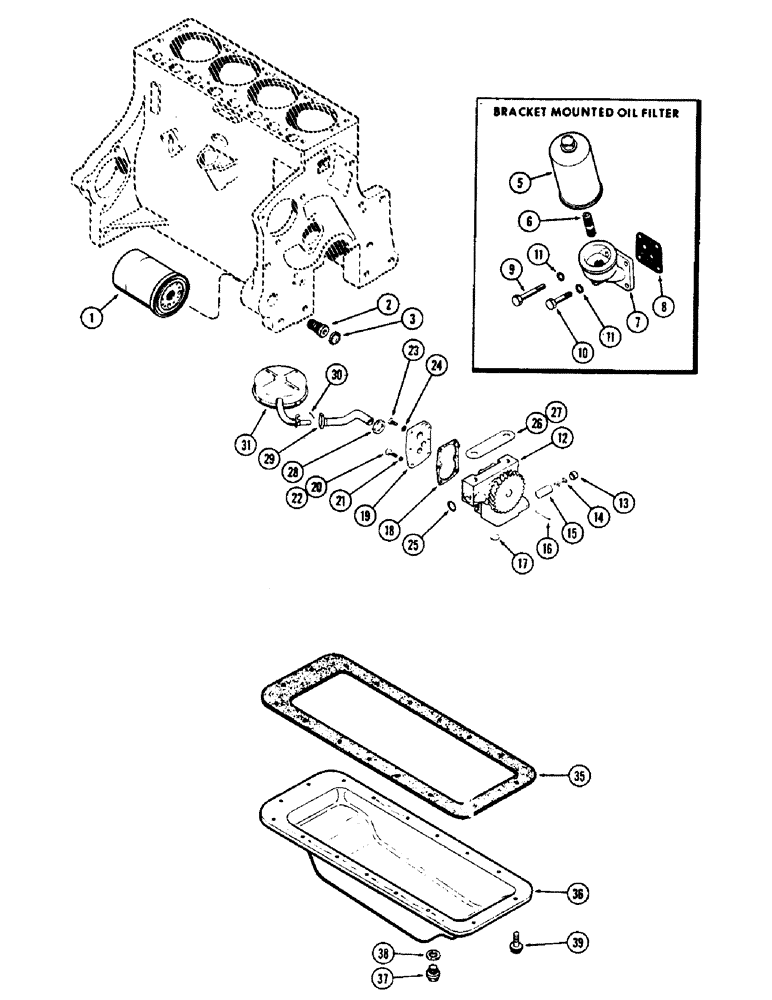

Запчасти Case 500 (036) - ENGINE OIL FILTER, (188) SPARK IGNITION ENGINE, FLANGE MOUNTED, FIRST USED ENGINE SERIAL NO. 9802215 (01) - ENGINE

1

A37189

FILTER, ELEMENT

FILTER - oil, engine (Replaces G45210)

1шт.

2

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

3

A37207

X

PLUG - adapter opening

1шт.

5

G45210

FILTER, ELEMENT

FILTER - oil, engine (Throw-a-way unit), bracket mounted used prior to, Start Serial: 9802215

1шт.

6

G49061

TUBE NUT

CONNECTOR - adapating, filter, bracket mounted used prior to engine, Start Serial: 9802215

1шт.

7

G2046

BRACKET - mtg., oil filter, mounted used prior to engine, Start Serial: 9802215

1шт.

8

G46854

GASKET

- mtg., filter bracket, mounted used prior to engine, Start Serial: 9802215

1шт.

9

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Bracket mounted used prior to engine Hex, 5/16"-18 x 7/8", G5, Full Thd, Start Serial: 9802215

2шт.

10

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Bracket mounted used prior to engine Hex, 5/16"-18 x 2 1/4", G5, Start Serial: 9802215

2шт.

11

92-5

LOCK WASHER,5/16"

bracket mounted used prior to engine 5/16", Start Serial: 9802215

4шт.

12

G11844

PUMP, ENGINE OIL

PUMP ASSY. - oil engine, G11844

1шт.

13

A29260

RETAINER

- relief spring, G11844 oil pump

1шт.

14

G48513

VALVE SPRING

SPRING - relief, oil, G11844 pump

1шт.

15

A155144

VALVE, PRESSURE RELI

- relief, pump, G11844 oil

1шт.

16

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , G11844 oil pump 1/8" x 3/8", Slotted

1шт.

17

41-102

PLUG,Exp, 1/2"

- pump body (Welch), G11844 oil pump

2шт.

18

G46852

GASKET

- pump body cover, G11844 oil pump

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - pump body (Order G11844), oil

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

G11844 oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , G11844 oil pump 1/4"

4шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

G11844 oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

23

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach. 1/4 x 5/8" N.C. flat hd., G11844 oil pump

2шт.

24

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump, G11844 Ext Csk Tooth, 1/4"

2шт.

25

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port, G11844 pump

1шт.

26

G11337

SHIM,.002" Thk

Pump to front bearing cap, G11844 oil .002" Thk

1шт.

27

G11338

SHIM,.005" Thk

Pump to front bearing cap, G11844 Oil .005" Thk

1шт.

28

223-207

LOCK NUT

NUT - lock, 3/8" P.T., G11844 oil pump

1шт.

29

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction, oil, G11844 pump

1шт.

30

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , G11844 oil pump 1/8" x 1 1/4"

1шт.

31

G45060

FLOAT

- screen, oil pump, G11844 oil pump

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40713 p. 44)

1шт.

36

A36782

PAN

ASSY. - oil, engine

1шт.

37

A14280

PLUG

- drain, oil pan

1шт.

38

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

39

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

- sems, 5/16 x 3/4" ident. hex. hd., oil pan

18шт.
