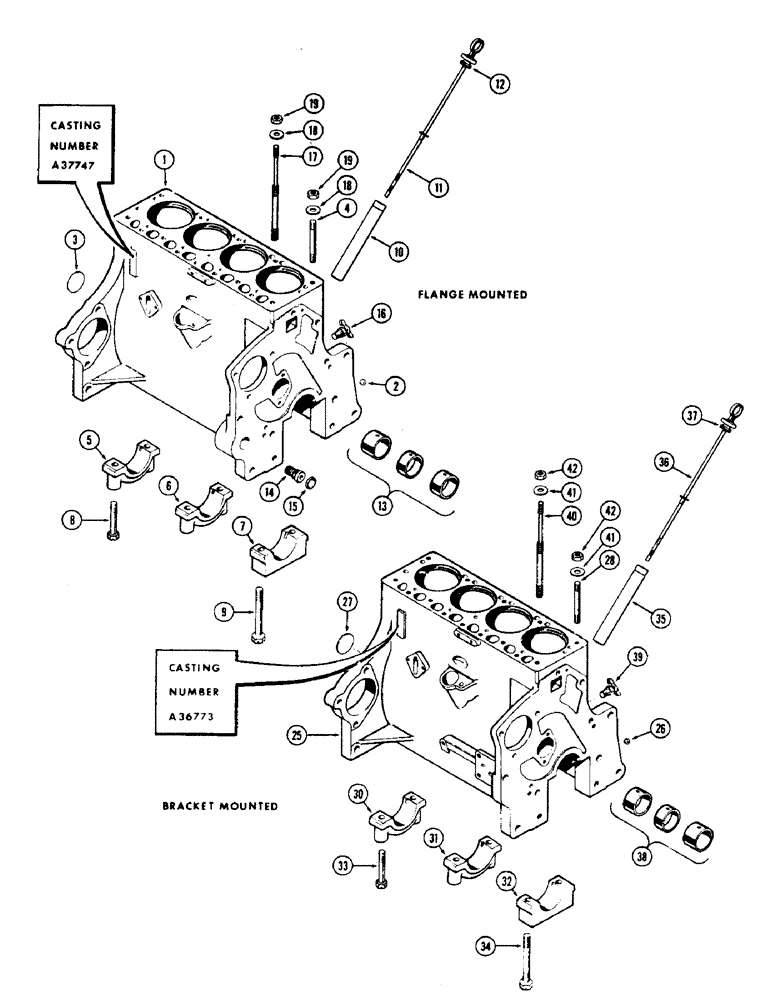

Запчасти Case 500 (034) - CYLINDER BLOCK ASSEMBLY, (188) SPARK IGNITION ENG., FIRST USED ENG. S/N 9802215, CASTING NO. A37747 (01) - ENGINE

A41029

SKELETON ENGINE

BLOCK ASSY. - cylinder, short (Not illust.) (Incl. stripped block, camshaft & brgs., camshaft, timing gears, piston assy., connecting rods & brgs., & oil pump assy.) (Casting #A37747)

1шт.

1

A41030

SKELETON ENGINE

BLOCK ASSY. - cylinder, stripped (Casting #A37747)

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- oil gallery, 1/4" P.T., ctsk. sckt. hd.

3шт.

3

A39241

PLUG,Exp, 2.12" dia

- camshaft hole, 2-1/8" expansion

1шт.

4

A30057

STUD

- cyl. head, 1/2" N.F. x 2"

3шт.

4

A29436

STUD

- cyl. head, 1/2" N.F. x 5-7/8"

14шт.

5

G2062

CAP - main brg., rear

1шт.

6

G2060

CAP - main brg., center

1шт.

7

G2059

CAP - main brg., front

1шт.

8

G49038

BOLT - main brg. cap, 1/2 x 3-3/8" N.C. spec.

4шт.

9

G49059

BOLT

- main brg. cap, 1/2 x 4-3/4" N.C. spec.

2шт.

10

A37149

TUBE

- oil filler & dipstick (w/bead)

1шт.

11

A37148

DIPSTICK

ASSY. (Guide 15/16 wide)

1шт.

12

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick, 3/4 x 1 x 1/8"

2шт.

13

A36409

X

BUSHING SET - camshaft

1шт.

14

A153552

ADAPTER

- oil filter

1шт.

15

A37207

X

PLUG - oil filter hole, 1" cup type

1шт.

16

217-103

COCK, DRAIN

COCK - drain, cyl. block

1шт.

17

A36780

STUD

- cyl. head & cover

2шт.

18

G49404

WASHER

- cyl. head stud, 17/32 x 27/32 x 1/16"

19шт.

19

A30021

NUT

- cyl. head stud, 1/2" N.F. hex., spec.

19шт.

A40595

X

BLOCK ASSY. - cylinder, short (Not illust.) (Incl. stripped block, crankshaft & brgs., camshaft, timing gears, piston assy., connecting rods & brgs. & oil pump assy.) (Casting #A36773), used prior to engine, Start Serial: 9802215

1шт.

25

A40593

BLOCK ASSY. - cylinder, stripped (Casting #A36773), used prior to engine, Start Serial: 9802215

1шт.

26

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- oil gallery, 1/4" P.T., ctsk. sckt. hd., casting number A36773, used prior to engine, Start Serial: 9802215

3шт.

27

A39241

PLUG,Exp, 2.12" dia

- camshaft hole, 2-1/8" expansion, casting number A36773, used prior to engine, Start Serial: 9802215

1шт.

28

A30057

STUD

- cyl. head, 1/2" N.F. x 2", casting number A36773, used prior to engine, Start Serial: 9802215

3шт.

28

A29436

STUD

- cyl. head, 1/2" N.F. x 5-7/8", casting number A36773, used prior to engine, Start Serial: 9802215

14шт.

30

G2062

CAP - main brg., rear, casting number A36773, used prior to engine, Start Serial: 9802215

1шт.

31

G2060

CAP - main brg., center, casting number A36773, used prior to engine, Start Serial: 9802215

1шт.

32

G2059

CAP - main brg., front, casting number A36773, used prior to engine, Start Serial: 9802215

1шт.

33

G49038

BOLT - main brg. cap, 1/2 x 3-3/8" N.C. spec., casting number A36773, used prior to engine, Start Serial: 9802215

4шт.

34

A49059

X

BOLT - main brg. cap 1/2 x 4-3/4" N.C. spec., casting number A36773, used prior to engine, Start Serial: 9802215

2шт.

35

A36774

X

TUBE - oil filler & dipstick (w/out bead), casting number A36773, used prior to engine, Start Serial: 9802215

1шт.

36

A36775

X

DIPSTICK ASSY. (Guide 31/32" wide), casting number A36773, used prior to engine, Start Serial: 9802215

1шт.

37

G62075

"O" RING - dipstick, 3/4 x 1 x 1/8", casting number A36773, used prior to engine, Start Serial: 9802215

2шт.

38

A36409

X

BUSHING KIT - camshaft, casting number A36773, used prior to engine, Start Serial: 9802215

1шт.

39

217-103

COCK, DRAIN

COCK - drain, cylinder block, casting number A36773, used prior to engine, Start Serial: 9802215

1шт.

40

A36780

STUD

- cyl. head & cover, casting number A36773, used prior to engine, Start Serial: 9802215

2шт.

41

G49404

WASHER

- cyl. head stud, 17/32 x 27/32 x 1/16", casting number A36773, used prior to engine, Start Serial: 9802215

19шт.

42

A30021

NUT

- cyl. head stud, 1/2" N.F. hex., spec., casting number A36773, used prior to engine, Start Serial: 9802215

19шт.
