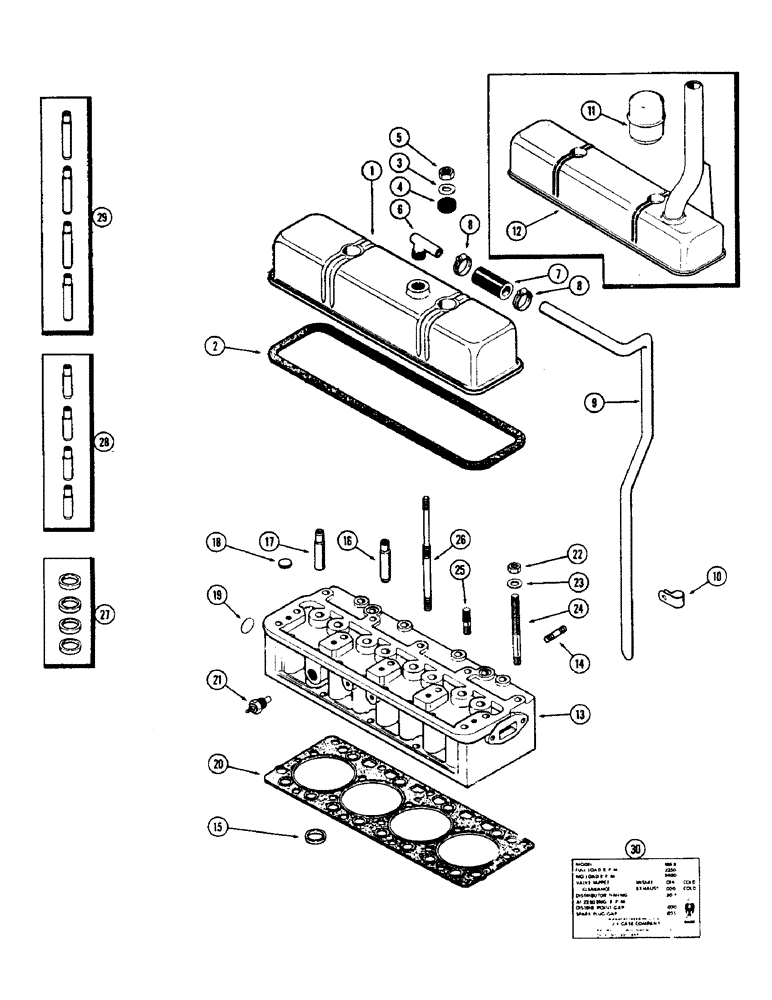

Запчасти Case 500 (032) - CYLINDER HEAD ASSEMBLY, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

A36815

COVER

- cyl. head (Eng. sn 9802215 & after)

1шт.

2

G46866

GASKET

- cyl. head cover

1шт.

3

G11352

BUSHING

SPACER - cyl. head cover

2шт.

4

G46867

GROMMET

- cyl. head cover studs

2шт.

5

A30022

X

NUT - cyl. head cover

2шт.

6

A9155

90 ELBOW

- breather (Eng. sn 9802215 & after)

1шт.

7

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Elbow to tube (Eng. S/N 9802215 & after) 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 1-3/16 x 1-3/4"

2шт.

9

D35027

TUBE

- cyl. head breather (Eng. sn 9802215 & after)

1шт.

10

D35026

CLAMP - tube to block (Eng. sn 9802215 & after)

1шт.

11

A36608

CAP

- oil filler and breather (Prior to eng. sn 9802215)

1шт.

12

A35198

COVER - cylinder head (Prior to eng. sn 9802215)

1шт.

13

G11871

HEAD (CYLINDER)

HEAD ASSY. - cylinder

1шт.

14

A29431

STUD

- manifold to cyl. head

7шт.

15

NSS

NOT SOLD SEPARAT

INSERT - exh. valve (Order ref. 27)

4шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - int. valve (Order ref. 28)

4шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exh. valve (Order ref. 29)

4шт.

18

A29968

X

PLUG - top, 13/16" O.D. expansion

2шт.

19

A30079

X

PLUG - rear, 1-1/8" O.D., freeze

1шт.

20

A36299

GASKET

- cylinder head

1шт.

21

A13796

X

UNIT - sending, eng. temperature

1шт.

22

A30021

NUT

- cyl. head stud

19шт.

23

G49404

WASHER

- cyl. head stud

19шт.

24

A29436

STUD

- cylinder head, 1/2" N.C. x 5-13/16"

14шт.

25

A30057

STUD

- cylinder head, 1/2" N.C. x 2"

3шт.

26

A36780

STUD

- cyl. head and cover

2шт.

27

A11986

INSERT KIT - exhaust valve (Set of 4)

1шт.

28

G11946

GUIDE

KIT - intake valve (Set of 4)

1шт.

29

G11861

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

30

321-897

DECAL - engine data

1шт.
