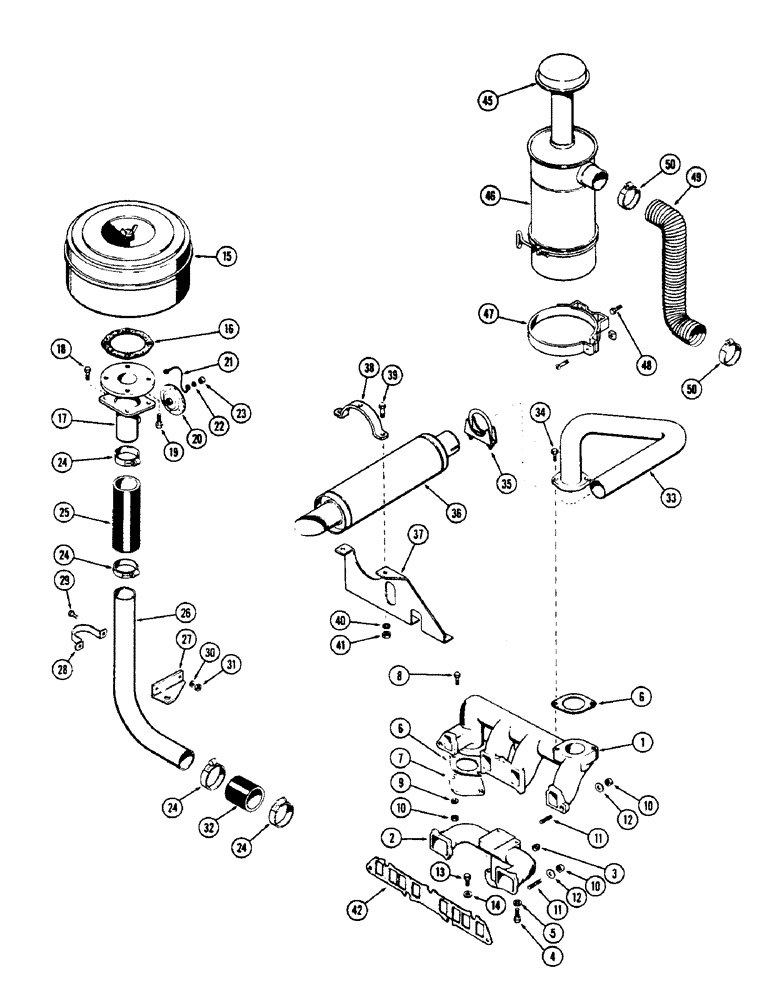

Запчасти Case 500 (030) - AIR FILTER, MANIFOLDS AND MUFFLER, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

G2097

MANIFOLD

- exhaust

1шт.

2

A37170

MANIFOLD

- intake (Takes 1/4" plug)

1шт.

3

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - 1/4" P.T., sq. hd.

1шт.

2

G11989

MANIFOLD

- intake (Takes 1/8" plug)

1шт.

3

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

4

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C., hex.

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

G46853

MANIFOLD GASKET

- outlet, exh. manifold

2шт.

7

G2044

LARGE PLATE

COVER - outlet, exh. manifold

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C., hex.

2шт.

9

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

10

A30022

X

NUT - 3/8" N.C., hex. (Brass)

9шт.

11

A29431

STUD

- manifold to cyl. head

7шт.

12

A30058

WASHER

- manifold studs

7шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

A15169

FILTER ASSY. - air (Repairs, figure 26)

1шт.

16

A15304

GASKET

- air, Serial Range: filter-support

1шт.

17

A15677

SUPPORT - air filter

1шт.

18

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

4шт.

19

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

20

A14739

SWITCH ASSY. - air filter vacuum

1шт.

21

A26893

WIRE - switch to air filter

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

24

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

25

A16936

HOSE - support to intake tube

1шт.

26

A16937

TUBE - intake, Serial Range: filter-carburetor

1шт.

27

A16462

SUPPORT - intake tube

1шт.

28

A15673

CLAMP - intake, Serial Range: tube-support

1шт.

29

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4 x 5/8" N.F., hex.

2шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

32

A15675

INTAKE AIR HOSE,50.80 mm ID x 63.50 mm, SAE 20R1

HOSE 2.00" ID x 2.50", SAE 20R1 - Intake tube to carburetor

1шт.

33

A15652

PIPE - exhaust, engine

1шт.

34

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

35

A27077

CLAMP

ASSY. - exhaust pipe

1шт.

36

A15655

MUFFLER

- engine exhaust

1шт.

37

A37990

BRACKET - muffler mounting (Replaces G11351)

1шт.

38

A15656

CLAMP - muffler to mtg. bracket

1шт.

39

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16 x 1" N.F., hex.

2шт.

40

92-5

LOCK WASHER,5/16"

2шт.

41

25-115

NUT,5/16"-24, G5

- 5/16" NF, hex

2шт.

42

G46868

MANIFOLD GASKET

-, Serial Range: manifolds-head

1шт.

45

D22685

CAP

- air cleaner, oil bath

1шт.

46

F82166

CLEANER ASSY. - oil bath (Repairs, figure 26)

1шт.

47

A19589

BAND - mtg., air cleaner, oil bath

2шт.

48

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil bath air cleaner Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

49

A19591

HOSE - air cleaner to carburetor, oil bath

1шт.

50

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

oil bath air cleaner #28, 1.31/2.25 Type F Worm

2шт.
