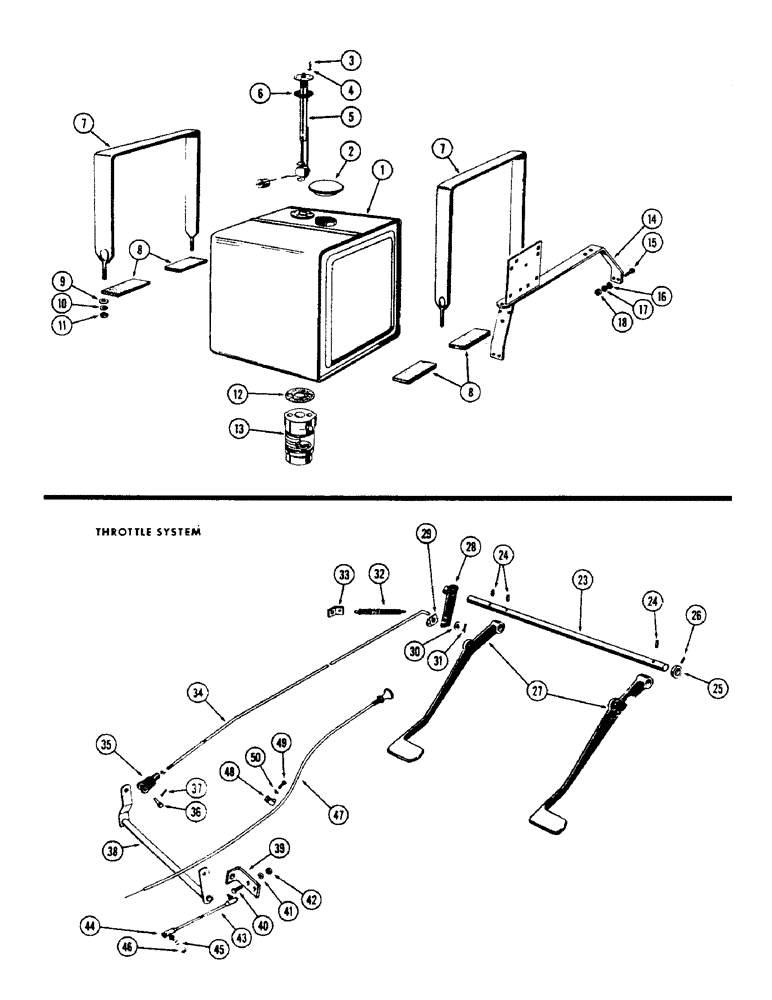

Запчасти Case 500 (024) - FUEL TANK SYSTEM, (188) DIESEL ENGINE (01) - ENGINE

1

A15978

TANK - fuel, diesel

1шт.

2

A33558

CAP

- filler, fuel tank

1шт.

3

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- mach., #10 x 5/8" N.C., rd. hd.

5шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

5

A13669

SENDER UNIT

UNIT - sending, fuel (12 volt)

1шт.

6

A11822

GASKET

- sending unit

1шт.

7

A13425

STRAP - hold down, fuel tank

2шт.

8

A7390

CUSHION - mtg., fuel tank

4шт.

9

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

4шт.

12

G46874

GASKET

- fuel, Serial Range: filter-tank

1шт.

13

G45254

SET OF PARTS

FILTER ASSY. - fuel (Repairs, p. 10)

1шт.

14

A16413

SUPPORT - fuel tank

1шт.

15

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F., hex.

4шт.

16

195-95

WASHER - 13/32 x 13/16 x 1/16"

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

4шт.

23

A13553

SHAFT - cross, foot pedal, throttle system

1шт.

24

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, , Throttle system 3/16" x 1", Type A, Hardened

3шт.

26

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, 1/4 x 1/4" N.F., sckt. cup pt., throttle system

1шт.

27

A12405

PEDAL - foot throttle, system

2шт.

28

A13555

LEVER - foot throttle, system

1шт.

29

A26953

CLIP

- spring return, throttle system

1шт.

30

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64", throttle system

1шт.

31

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Throttle system 3/32" x 5/8"

1шт.

32

A37688

ROLLER

SPRING - pedal return, throttle system

1шт.

33

A26656

CLIP - return spring, throttle system

1шт.

34

A15692

ROD - front control, throttle sytem

1шт.

35

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - end, throttle rod, throttle system

1шт.

36

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, throttle rod to lever, system

1шт.

37

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Throttle system 1/16" x 1/2"

1шт.

38

A15688

SHAFT - cross, rear, throttle system

1шт.

39

A15694

BRACKET - cross shaft, throttle system

2шт.

40

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Throttle system Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

41

92-5

LOCK WASHER,5/16"

throttle system 5/16"

2шт.

42

25-115

NUT,5/16"-24, G5

- 5/16" NF hex, throttle system

2шт.

43

A15693

ROD - throttle, rear, throttle system

1шт.

44

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ASSY. - ball, throttle system

2шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Throttle system 1/4"

2шт.

46

25-114

NUT,1/4"-28, G5

- 1/4" N.F., hex., throttle system

2шт.

47

A15928

CABLE ASSY. - fuel shut-off (Flex), throttle system

1шт.

48

A26673

CLIP

- cable, throttle system

2шт.

49

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Throttle system Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Throttle system 1/4"

2шт.
