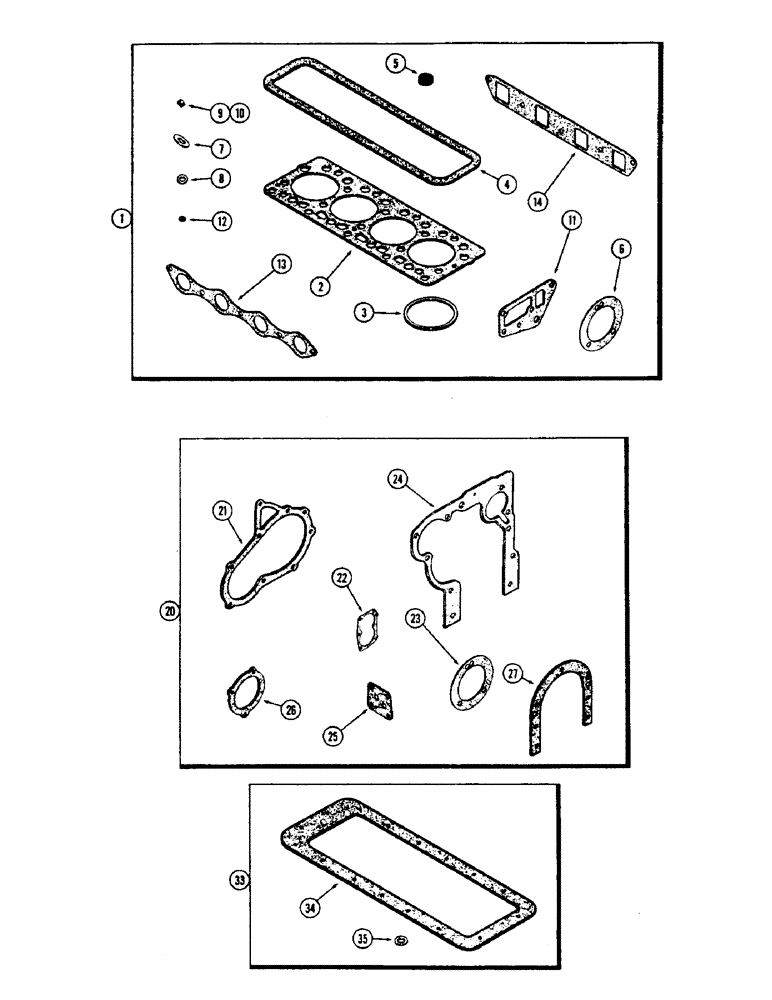

Запчасти Case 500 (022) - ENGINE GASKET KITS, (188) DIESEL ENGINE, VALVE GRIND GASKET KIT (01) - ENGINE

1

A41425

GASKET

KIT - valve grind (See note) (Replaces A40707)

1шт.

2

A36877

GASKET

Cylinder head

1шт.

3

A36900

RING, PISTON

Fire, cyl. gasket

4шт.

4

G46866

GASKET

Cyl. head cover

1шт.

5

G46867

GROMMET

Cyl. head cover (Rubber)

2шт.

6

A38083

GASKET

Water pump mtg.

1шт.

7

G49068

GASKET

Seat, fuel injector

4шт.

8

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection, Serial Range: tube-pump

8шт.

9

222-101

SLEEVE,3/16" Tube

Leak-off, injector

4шт.

10

22-103

LIGHT

SLEEVE - fuel line

4шт.

11

A38084

GASKET,1.27mm Thk

Pump drive cover

1шт.

12

G46851

SEAL

Valve stem (Rubber)

8шт.

13

G46872

MANIFOLD GASKET

Exhaust manifold

1шт.

14

G46871

GASKET

Intake manifold

1шт.

20

A41426

KIT

GASKET - cylinder block (See note) (Replaces G11950)

1шт.

21

G46859

GASKET

Timing & pump drive cover, cylinder block kit

1шт.

22

G46852

GASKET

Oil pump cover, cylinder block kit

1шт.

23

A38083

GASKET

Water pump, cylinder block kit

1шт.

24

A38228

GASKET

Timing cover to block, cylinder block kit

1шт.

25

G46854

GASKET

Oil filter bracket, cylinder block kit

1шт.

26

A30042

GASKET

Pump supt., power strg., cylinder block kit

1шт.

27

G46802

GASKET

Rear oil seal retainer, cylinder block kit

1шт.

33

A40712

KIT

GASKET - oil pan (See note)

1шт.

34

A35273

GASKET

Oil pan kit

1шт.

35

A27927

OIL PAN GASKET SET

Drain plug, oil pan kit

1шт.
