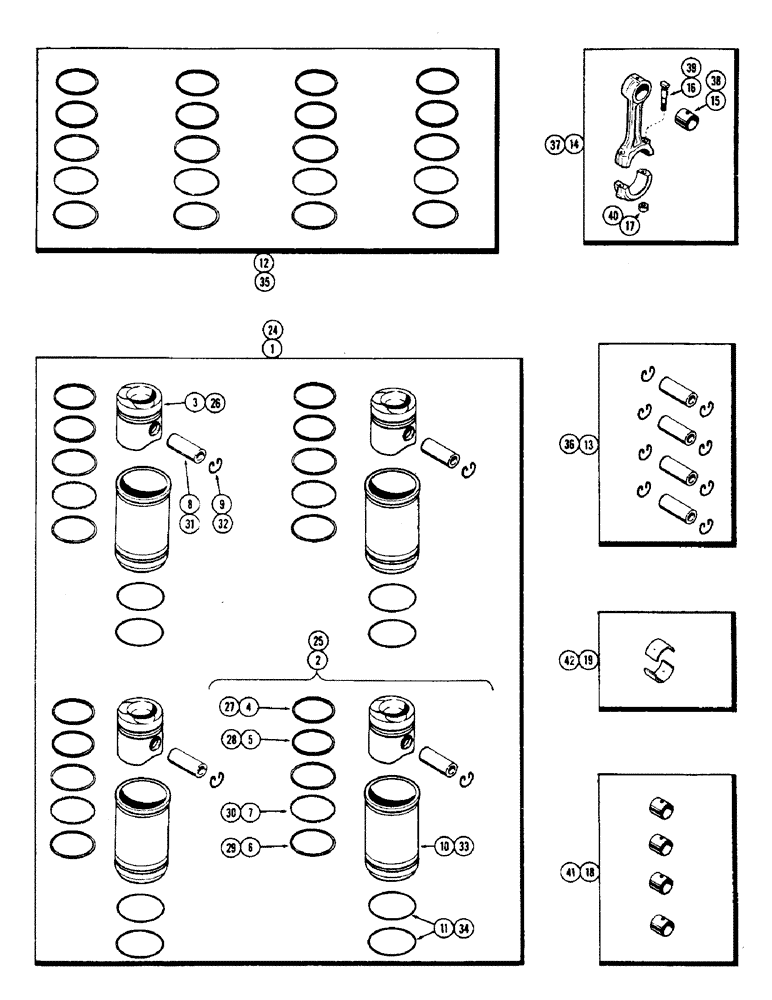

Запчасти Case 500 (020) - PISTON, SLEEVES AND CONNECTING RODS, (188) DIESEL ENGINE, FIRST USED ENGINE SER. NO. 2610997 (01) - ENGINE

1

A37764

PISTON & SLEEVE SET (Set of 4)

1шт.

2

A37769

X

PISTON & SLEEVE ASSY. (Set of 1)

4шт.

3

G2137

X

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 12)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 12)

1шт.

6

NSS

NOT SOLD SEPARAT

RAIL - oil control, 3rd groove (Order ref. 12)

2шт.

7

NSS

NOT SOLD SEPARAT

SPACER - oil control rails (Order ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - snap, piston pin ret.

2шт.

10

A37763

X

SLEEVE - piston (Cylinder liner) (See note)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET (Set of 4)

1шт.

13

A35771

KIT

PIN SET (Set of 4 pins & 8 rings)

1шт.

14

G11847

ROD

ASSY. - connecting

4шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - pison pin (Order ref. 18)

1шт.

16

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

17

G49060

NUT

- conn. rod bolt

2шт.

18

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

19

A36500

SEAL

INSERT ASSY. - conn. rod brg. (Std.)

4шт.

19

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002)

4шт.

19

A36502

LINING

INSERT ASSY. - conn. rod. brg. (-.010")

4шт.

19

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020")

4шт.

19

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030")

4шт.

24

A35772

KIT, LINER, PISTON R

PISTON & SLEEVE ASSY. (Set of 4), for narrow flanged used prior to engine, Start Serial: 2610997

1шт.

25

A36391

SLEEVE ASSY

PISTON & SLEEVE ASSY. (Set of 1), for narrow flanged used prior to engine, Start Serial: 2610997

4шт.

26

G2137

X

PISTON - cylinder, for narrow flanged sleeves used prior to engine, Start Serial: 2610997

1шт.

27

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 35), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

1шт.

28

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 35), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

1шт.

29

NSS

NOT SOLD SEPARAT

RAIL - oil control, 3rd groove (Order ref. 35), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

2шт.

30

NSS

NOT SOLD SEPARAT

SPACER - oil control rails (Order ref. 35), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

1шт.

31

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 36), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

1шт.

32

G46702

RING, LOCKING

RING - snap, piston pin ret., for narrow flanged sleeves used prior to engine, Start Serial: 2610997

2шт.

33

G2110

SLEEVE

- piston (Cylinder liner) (See note), for narrow flanged used prior to engine, Start Serial: 2610997

1шт.

34

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing, for narrow flanged used prior to engine, Start Serial: 2610997

2шт.

35

G37075

RING

SET - re-ring (Set of 4), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

1шт.

36

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

1шт.

37

G11847

ROD

ASSY. - connecting, for narrow flanged sleeves used prior to engine, Start Serial: 2610997

4шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 41), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

1шт.

39

G49064

STEP BOLT

BOLT - conn. rod brg. cap, for narrow flanged sleeves used prior to engine, Start Serial: 2610997

2шт.

40

G49060

NUT

- conn. rod bolt, for narrow flanges sleeves used prior to engine, Start Serial: 2610997

2шт.

41

G11953

BUSHING

SET - piston pin (Set of 4), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

1шт.

42

A36500

SEAL

INSERT ASSY. - conn. rod brg. (Std.), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

4шт.

42

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002"), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

4шт.

42

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010"), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

4шт.

42

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020"), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

4шт.

42

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030"), for narrow flanged sleeves used prior to engine, Start Serial: 2610997

4шт.
