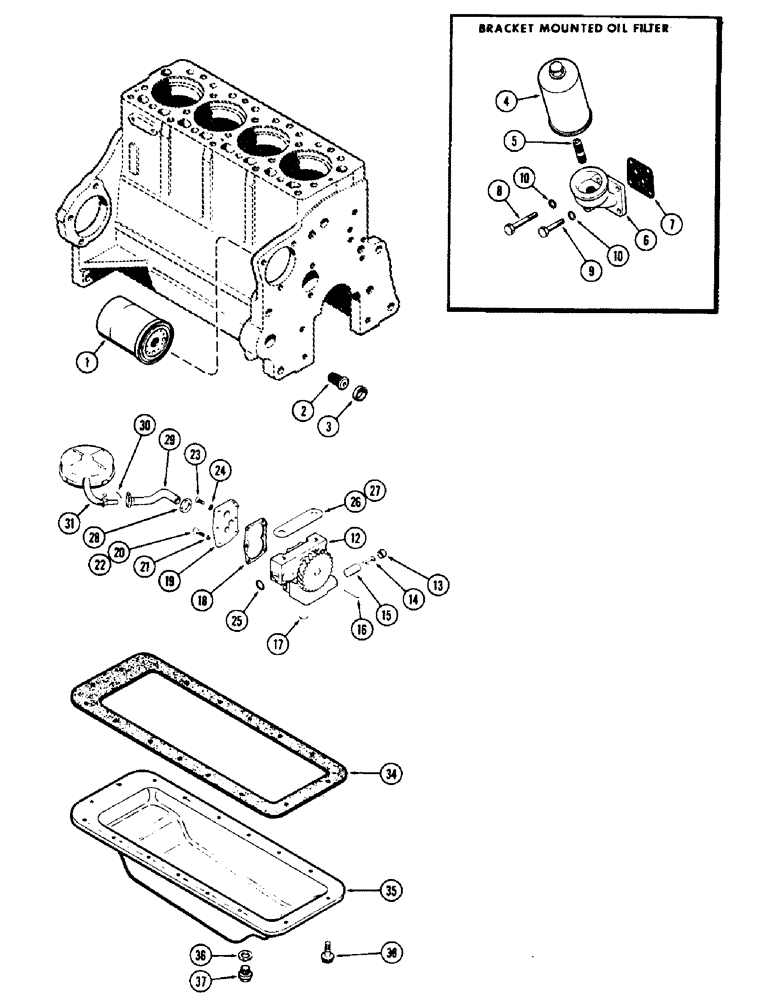

Запчасти Case 500 (018) - ENGINE OIL FILTER, (188) DIESEL ENGINE, FLANGE MOUNTED, FIRST USED ENGINE SERIAL NUMBER 2614827 (01) - ENGINE

1

A37189

FILTER, ELEMENT

FILTER - oil, engine (Replaces G45210)

1шт.

2

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

3

A37207

X

PLUG - adapter opening

1шт.

4

G45210

FILTER, ELEMENT

FILTER - oil, engine, bracket mounted used prior to engine, Start Serial: 2614827

1шт.

5

G49061

TUBE NUT

ADAPTER - filter mounting, bracket mounted used prior to engine, Start Serial: 2614827

1шт.

6

G2046

BRACKET - mounting, filter, bracket mounted used prior to engine, Start Serial: 2614827

1шт.

7

G46852

GASKET

- filter bracket to block, mounted used prior to engine, Start Serial: 2614827

1шт.

8

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Bracket mounted used prior to engine Hex, 5/16"-18 x 2 1/4", G5, Start Serial: 2614827

2шт.

9

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

- 5/16 x 5/8" N.C., hex., bracket mounted used prior to engine, Start Serial: 2614827

2шт.

10

92-5

LOCK WASHER,5/16"

bracket mounted used prior to engine 5/16", Start Serial: 2614827

4шт.

12

G37070

X

PUMP ASSY. - oil, engine, G37070

1шт.

13

A27260

RETAINER - relief spring, G37070 oil pump

1шт.

14

G48500

SPRING

- relief valve, G37070 oil pump

1шт.

15

A155144

VALVE, PRESSURE RELI

- relief, G37070 oil pump

1шт.

16

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , G37070 Oil pump 1/8" x 1 1/8", Slotted

1шт.

17

41-102

PLUG,Exp, 1/2"

- body, G37070 oil pump

2шт.

18

G46852

GASKET

- cover to body, G37070 oil pump

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - pump body (Order G37070), oil

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

G37070 oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , G37070 oil pump 1/4"

4шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

G37070 oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

23

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" N.C. flat hd., G37070 oil pump

2шт.

24

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump, G37070 Ext Csk Tooth, 1/4"

2шт.

25

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port, G37070 pump

1шт.

26

G11337

SHIM,.002" Thk

Pump to bearing cap, G37070 oil .002" Thk

1шт.

27

G11338

SHIM,.005" Thk

Pump to bearing cap, G37070 Oil .005" Thk

1шт.

28

223-207

LOCK NUT

NUT - lock, 3/8" conduit, G37070 oil pump

1шт.

29

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction, oil, G37070 pump

1шт.

30

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , G37070 oil pump 1/8" x 1 1/4"

1шт.

31

G45060

FLOAT

ASSY. - oil pump, G37070

1шт.

REF#31 ANOTHER FLOAT ASSY USED(NOT A SUB)

1шт.

34

A35273

GASKET

- oil pan to cyl. block

1шт.

REF#34 REPLACED BY A40712 10/23/96

1шт.

35

A36782

PAN

ASSY. - oil, enging, pan

1шт.

36

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

37

A14280

PLUG

- drain, oil pan

1шт.

38

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

- sems, 5/16 x 3/4" indent. hex. hd., oil pan

18шт.

A39037 AND A39035 10/23/96

1шт.
