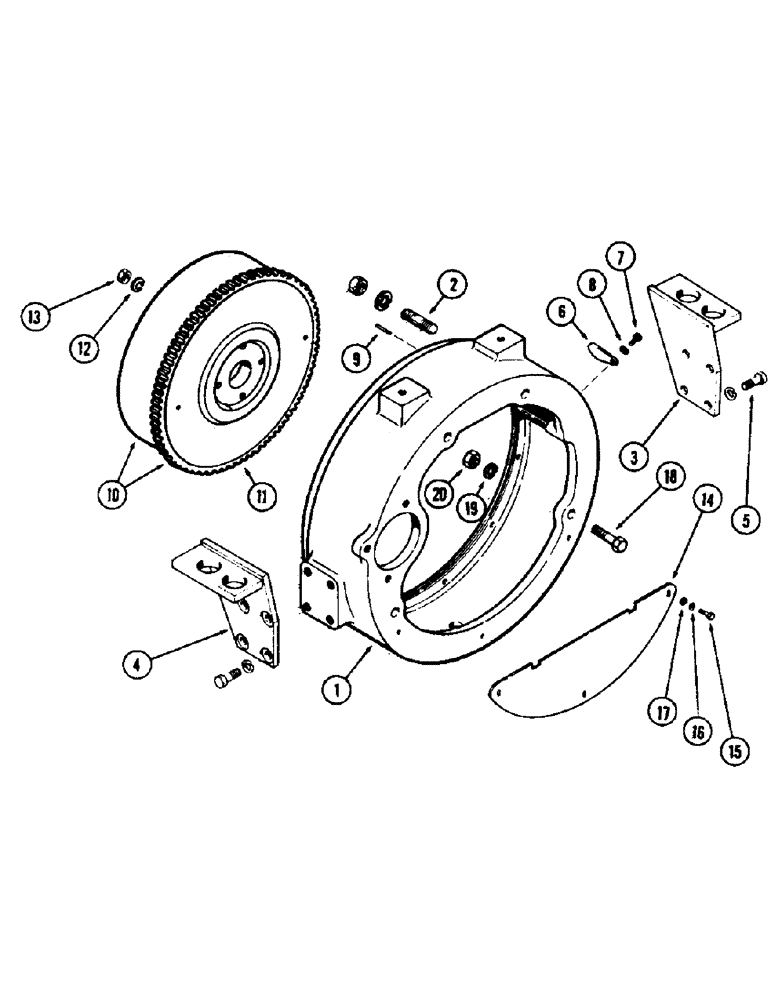

Запчасти Case 500 (017A) - FLYWHEEL AND HOUSING, (188) DIESEL ENGINE (01) - ENGINE

1

G1347

HOUSING

- flywheel

1шт.

2

A29333

STUD

- flywhl., Serial Range: hsg.-converter

2шт.

3

A16409

SUPPORT - flywheel hsg., R.H.

1шт.

4

A16408

SUPPORT - flywheel hsg., L.H.

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

6

A29068

COVER

- timing hole

1шт.

7

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Timing pointer 1/8" x 1 1/4", Slotted

1шт.

10

G11903

FLYWHEEL ASSY. - engine

1шт.

11

G11710

GEAR

- ring, flywheel (135 T)

1шт.

12

92-7

LOCK WASHER,7/16"

4шт.

13

25-117

NUT,7/16"-20, G5

- 7/16" N.F., hex.

4шт.

14

G11716

COVER

- lower flywheel hsg.

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

- 1/4 x 1-3/4" N.C., hex.

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

17

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

3шт.

18

A30135

BOLT

BOLT - engine to flywheel hsg.

1шт.

19

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

20

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.
